1658623-7
30 Position Rectangular Receptacle Connector IDC Gold or Gold-Palladium 26-28 AWG
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1658623-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

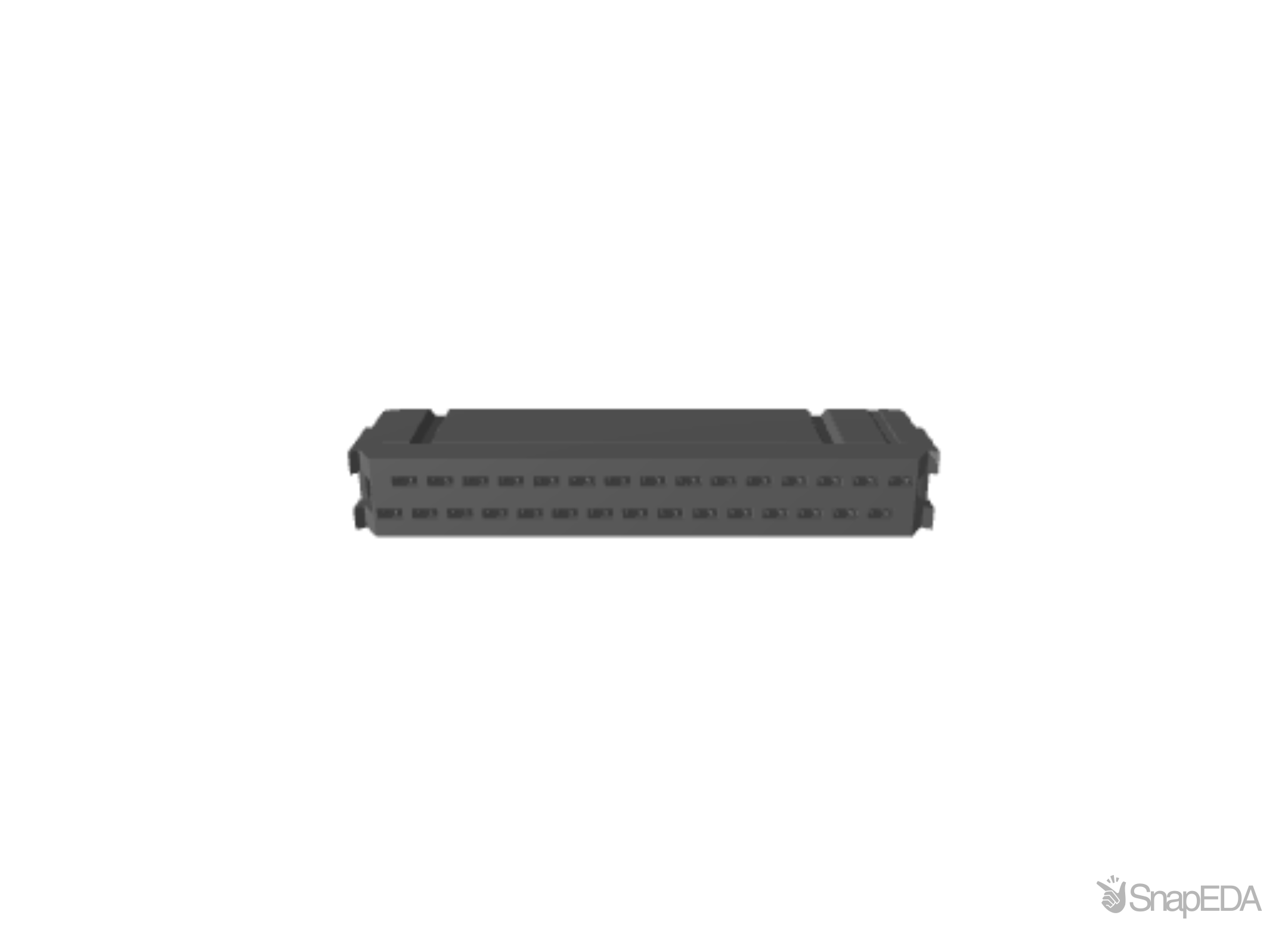

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1658623-7
| Part Name | 1658623-7 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Thermoplastic |
| Width | 6.1 |
| Contact Termination Area Plating Thickness | 1.27 |
| Operating Voltage (V) | 250 |
| Ejection Latches | Without |
| Connector Style | Receptacle |
| Mating Connector Lock Type | Latch |
| PCB Mount Orientation | Vertical |
| Connector & Contact Terminates To | Wire & Cable |
| Profile | Low |
| PCB Mount Retention | Without |
| UL Voltage Rating (V) | 250 |
| Contact Current Rating (Max) (A) | 1 |
| Panel Mount Feature | Without |
| Board Standoff | Without |
| TE Internal Number | 1658623-7 |
| UL Rating | Recognized |
| Connector System | Wire-to-Board |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Pin Header |
| Wire/Cable Size | 158 296 CMA |
| Product Type | Connector |
| Connector Mounting Type | Cable Mount |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Contact Transmits (Typical) | Signal (Data) |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| UL File Number | E28476 |
| Operating Temperature Range | -65 to 105 |
| Wire/Cable Type | Ribbon Cable |
| Packaging Method | Tube |
| Connector Type | Connector Assembly |
| Packaging Quantity | 60 |
| Agency/Standard | UL |
| Length | 42.67 |
| Number of Positions | 30 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold or Palladium Nickel or Performance Based |
| Accepts Wire Insulation Diameter Range | .031 .037 |
| Polarization | With |
| Contact Base Material | Phosphor Bronze |
| PCB Mount Alignment | Without |
| Contact Termination Area Plating Material | Tin |
| Height | 15.16 |
| Row-to-Row Spacing | 2.54 |
| CSA File Number | LR 7189 |
| Contact Mating Area Plating Thickness | .76 |
| Contact Design | Tuning Fork |
| Contact Type | Socket |
| Insulation Resistance | 5000 |
| Mating Connector Lock | With |
| Daisy Chain | Without |
