1676369-1
Res Thin Film 0805 52.3 Ohm 0.1% 0.1W(1/10W) ±10ppm/C Pad SMD T/R
Availability: Out of Stock
Package Type: 0805
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1676369-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

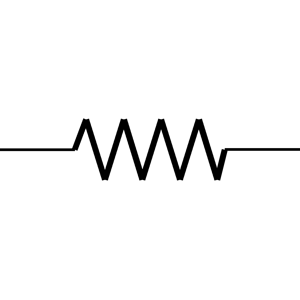

Symbol
No web preview
This Symbol is Available for

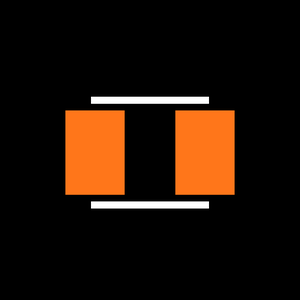

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1676369-1
| Part Name | 1676369-1 |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 2 x 1.25 x .55 |
| Product Type | Fixed Resistor |
| Voltage Rating (V) | 100 |
| Number of Terminations | 2 |
| Resistor Type | Precision Resistor |
| Package | 0805 |
| Packaging Method | Cut Tape Length |
| TE Internal Number | 1676369-1 |
| Temperature Coefficient | ±10 |
| Resistance | 52.3 |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Power Rating | .1 |
| Size Code | 0805 |
| Tolerance | .1% |
| Resistance Range | Up to 1kΩ |
| RoHS | True |
