1689310
SnapVerified

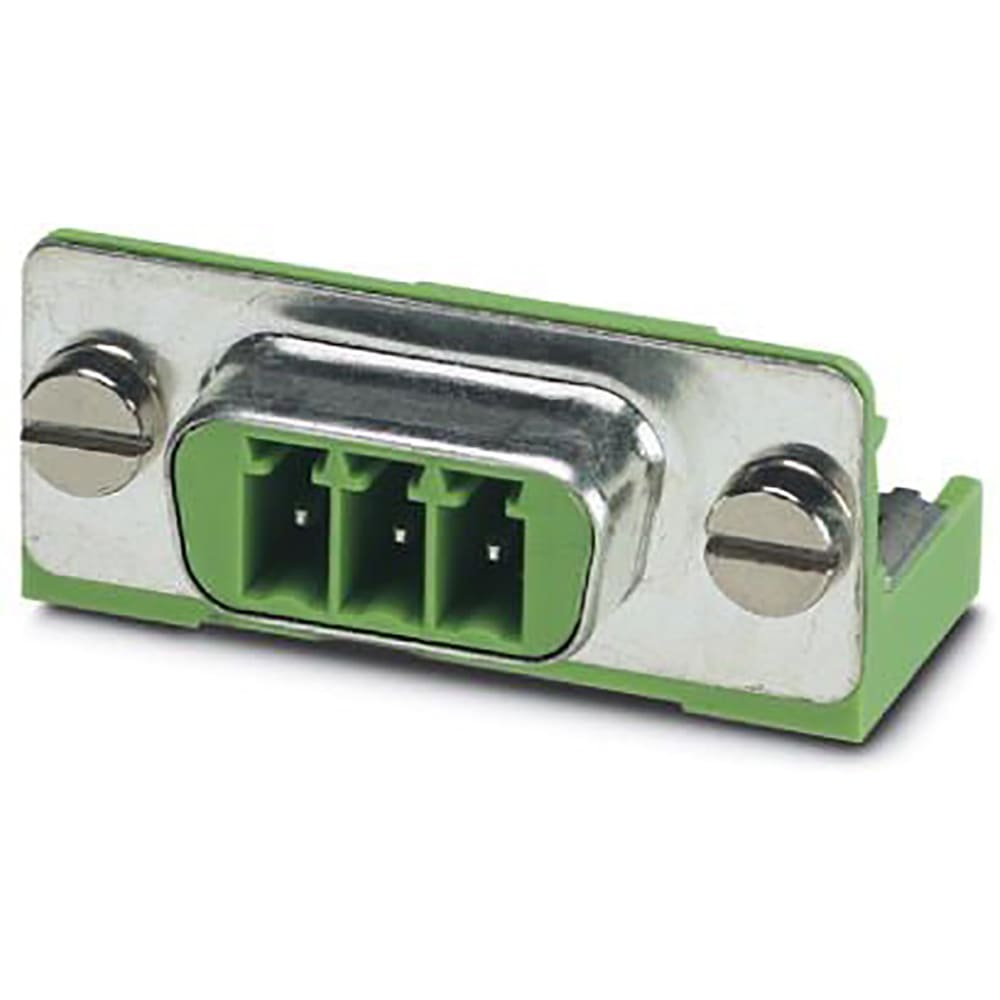

Phoenix Contact 1689310 VS-PSC 1,5/3-M
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1689310 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

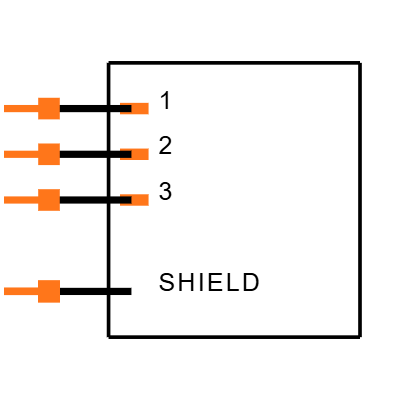

Symbol
No web preview
This Symbol is Available for

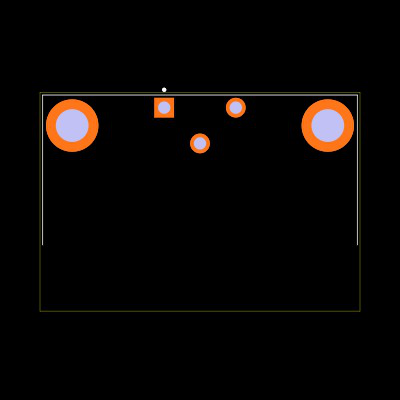

Footprint
No web preview
This Footprint is Available for

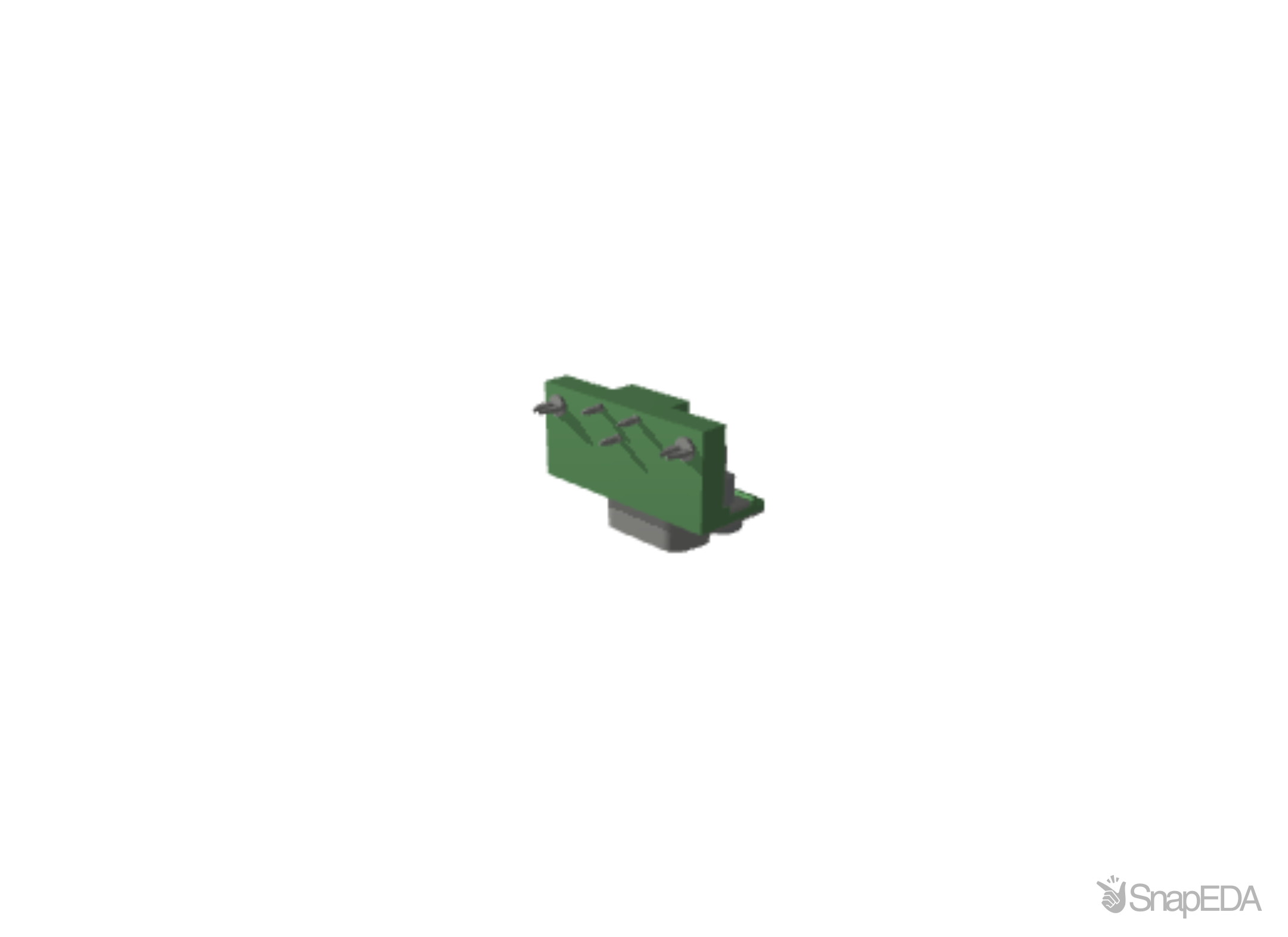

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1689310
| Part Name | 1689310 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Rated Current (A) | 8 |
| Width | 30.8 |
| GTIN | 4017918883768 |
| Min. Ambient Temperature | -20 |
| Contact Design | Pin |
| Product Description | PCB header |
| Certificate/approval | EAC |
| Gtin (ean) Code | 4017918883768 |
| Internal Article Number | 1689310 |
| Depth | 20.8 |
| Conductor Connection Method | Soldered connection |
| Insertion Cycles, Min. | 100 |
| Manufacturer Product Designation | PCB header |
| RoHS | True |
| Material Of The Contact Coat | Copper alloy |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Material Of Insulation | PA |
| Product Article Number Of Manufacturer | 1689310 |
| Degree Of Protection | IP20 |
| Pole Number | 3 |
| Height | 13.7 |
| Material Of The Contact | Copper alloy |
| Design | Contact insert |
| Max. Ambient Temperature | 80 |
| Application Standards | not available |
| Size | 3 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | VS-PSC 1.5/3-M |
| D Connector Type | D-Subminiature Connector |
Inventory for the 1689310 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
10
|
1 x $3.51
|
Visit Site |
No issues have been reported for the 1689310
If you experienced any issues with the symbol or footprint, please report it.
