17-015G
17 Series 103.42kPa 0.1% High Performance Piezoresistive silicon Pressure Sensor
Availability: In Stock
Package Type: TO-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 17-015G by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

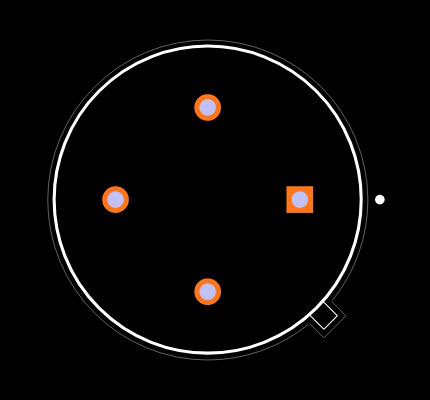

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 17-015G
| Part Name | 17-015G |
| Manufacturer | TE Connectivity |
| Sensor Type | mV Output Pressure Sensors |
| Package | TO-8 |
| Type | Gage |
| Operating Temperature Range | -40 – 125 |
| TE Internal Number | 17-015G |
| Output/Span | 100mV |
| Pressure | 15 |
| Accuracy | ±0.1% Span Non-Linearity |
| Supply Current (A) | 1.5 |
| Options | No Option |
| RoHS | True |
| Dimensions | Dia .44 |
