1701977
SnapVerified
Pluggable Terminal Blocks 6 Pos 10.16mm pitch Feed Through Header
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1701977 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

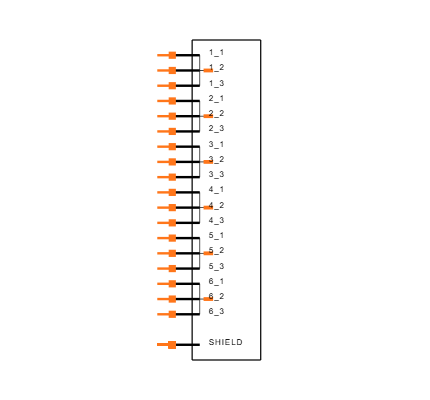

Symbol
No web preview
This Symbol is Available for

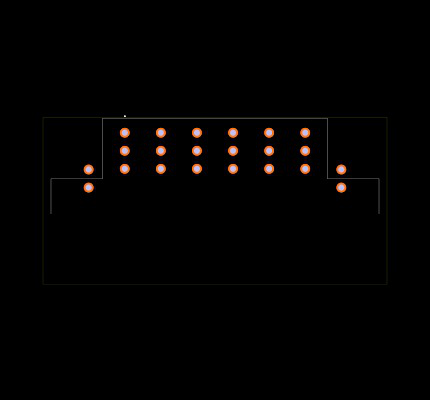

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1701977
| Part Name | 1701977 |
| Manufacturer | Phoenix Contact |
| Rated Current (A) | 76 |
| Width | 96.32 |
| GTIN | 4046356030885 |
| Type Of Interlock | Threaded joint |
| Assembly | Threaded joint |
| Product Description | Feed-through header |
| Certificate/approval | cULus Recognized, VDE Zeichengenehmigung |
| Gtin (ean) Code | 4046356030885 |
| Internal Article Number | 1701977 |
| Color Of Housing | green |
| Depth | 34 |
| Design Of Electrical Connection | Wave soldering |
| Manufacturer Product Designation | Feed-through header |
| RoHS | True |
| Material Of The Contact Coat | Ag |
| Assembly Type | Wave soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Material Of Insulation | PA |
| Product Article Number Of Manufacturer | 1701977 |
| Pole Number | 6 |
| Height | 20.3 |
| Material Of The Contact | Copper |
