171111-1
Conn Housing RCP 1 POS Crimp ST Cable Mount Automotive Bag
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 171111-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

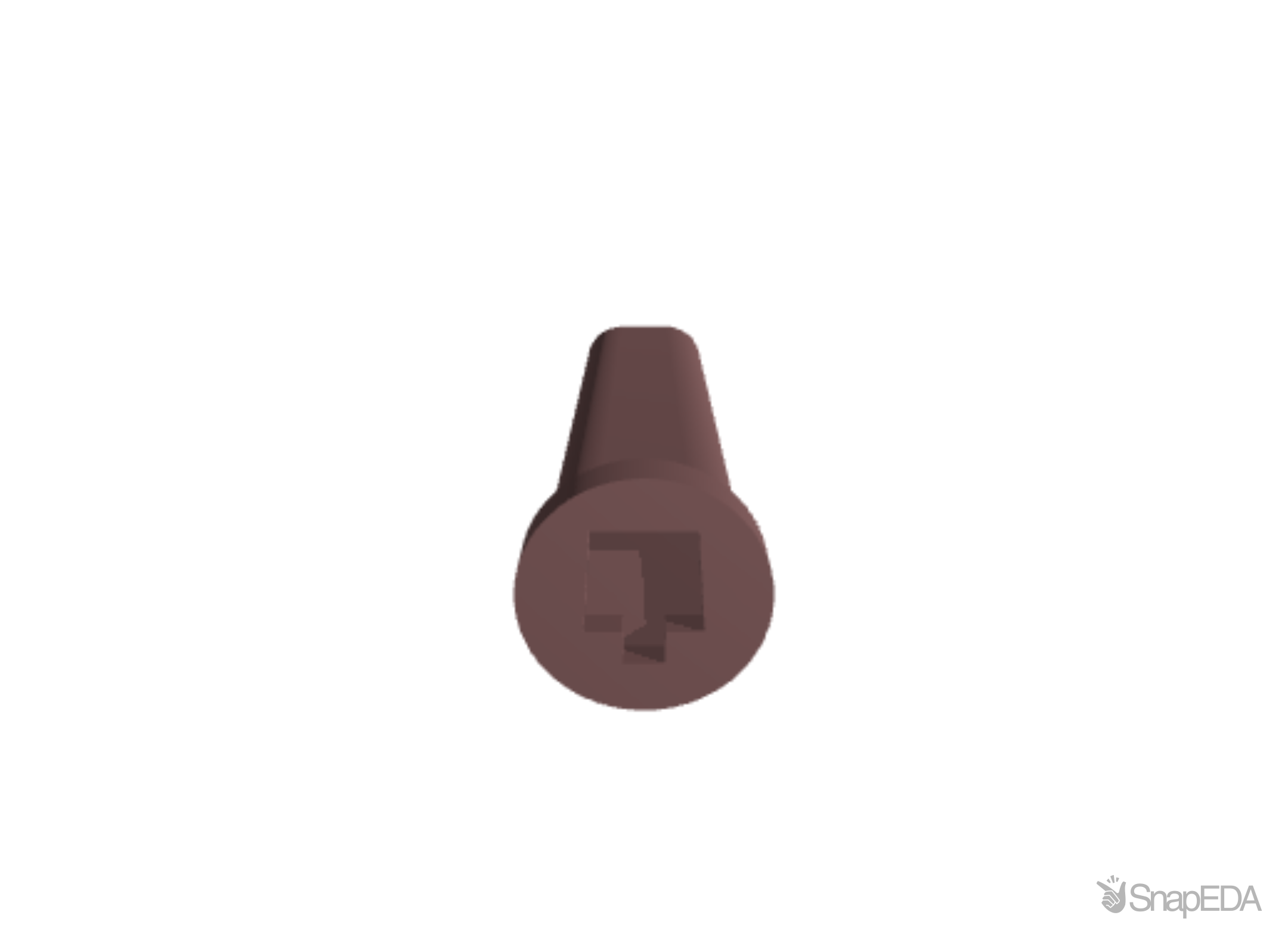

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 171111-1
| Part Name | 171111-1 |
| Manufacturer | TE Connectivity / AMP |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 20 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for male terminals |
| Number of Positions | 1 |
| TE Internal Number | 171111-1 |
| Connector System | Wire-to-Wire |
| Strain Relief | No |
| Terminal Position Assurance | No |
| Polarized | Yes |
| Hybrid Connector | No |
| Packaging Method | Bag |
| Packaging Quantity | 1000 |
| Length | .283 |
| Cable Exit Angle | 180° |
| Serviceable | No |
| RoHS | True |
| Sealable | No |
| Color | Gray |
| Height | 7.2 |
| Mating Pin Diameter | .093 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
