1713859
SnapVerified
Phoenix Contact, 1713859 MKDS 5/11-9,5
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1713859 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

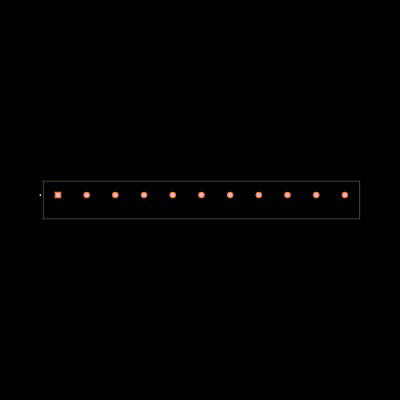

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1713859
| Part Name | 1713859 |
| Manufacturer | Phoenix Contact |
| Assembly Type | Print mounting |
| Min. Operating Temperature | -40 |
| Product Article Number Of Manufacturer | 1713859 |
| Product Description | PCB terminal block |
| Max. Connectable Conductor Cross-section Multiple Wire | 1.5 |
| Max. Operating Temperature | 105 |
| Max. Line Cross Section, Rigid | 6 |
| Height | 26.5 |
| Certificate/approval | CSA, cULus Recognized, VDE Zeichengenehmigung, DNV GL |
| Width | 104.72 |
| Depth | 12.05 |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| GTIN | 4017918257835 |
| Net Weight | 0.03238 |
| Manufacturer Product Designation | PCB terminal block |
| Number Of The Executions Of The Housing Parts | 0 |
| Application Standards | IECÂ 60947-7-4 |
