1713883
SnapVerified
14 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1713883 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

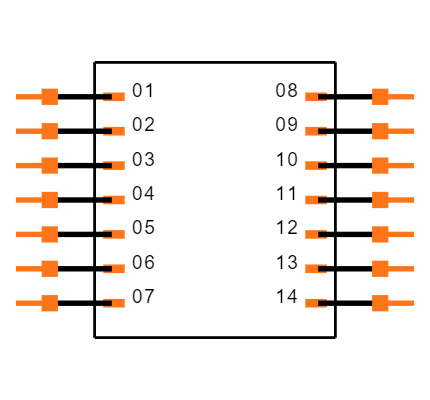

Symbol
No web preview
This Symbol is Available for

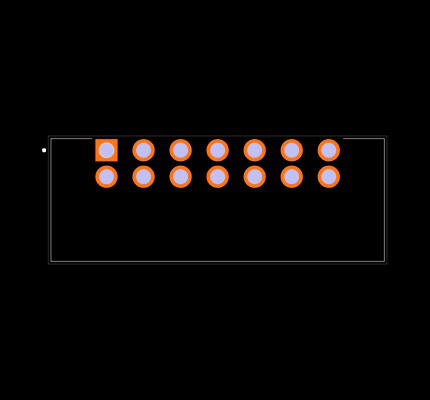

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1713883
| Part Name | 1713883 |
| Manufacturer | Phoenix Contact |
| Assembly Type | THR soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Assembly | snap-lock |
| Product Article Number Of Manufacturer | 1713883 |
| Type Of Pcb Contacting | THT connection (Wave soldering) |
| Width | 31.5 |
| Product Description | PCB header |
| Pole Number | 7 |
| Certificate/approval | cULus Recognized, VDE Gutachten mit Fertigungsüberwachung |
| Height | 13.4 |
| Material Of Insulation | LCP |
| Depth | 11.6 |
| Gtin (ean) Code | 4055626328270 |
| GTIN | 4055626328270 |
| Rated Current (A) | 8 |
| Manufacturer Product Designation | PCB header |
| Design Of Electrical Connection | THR soldering |
| Internal Article Number | 1713883 |
| Application Standards | IEC 61984 |
| RoHS | True |
| Color Of Housing | black |
