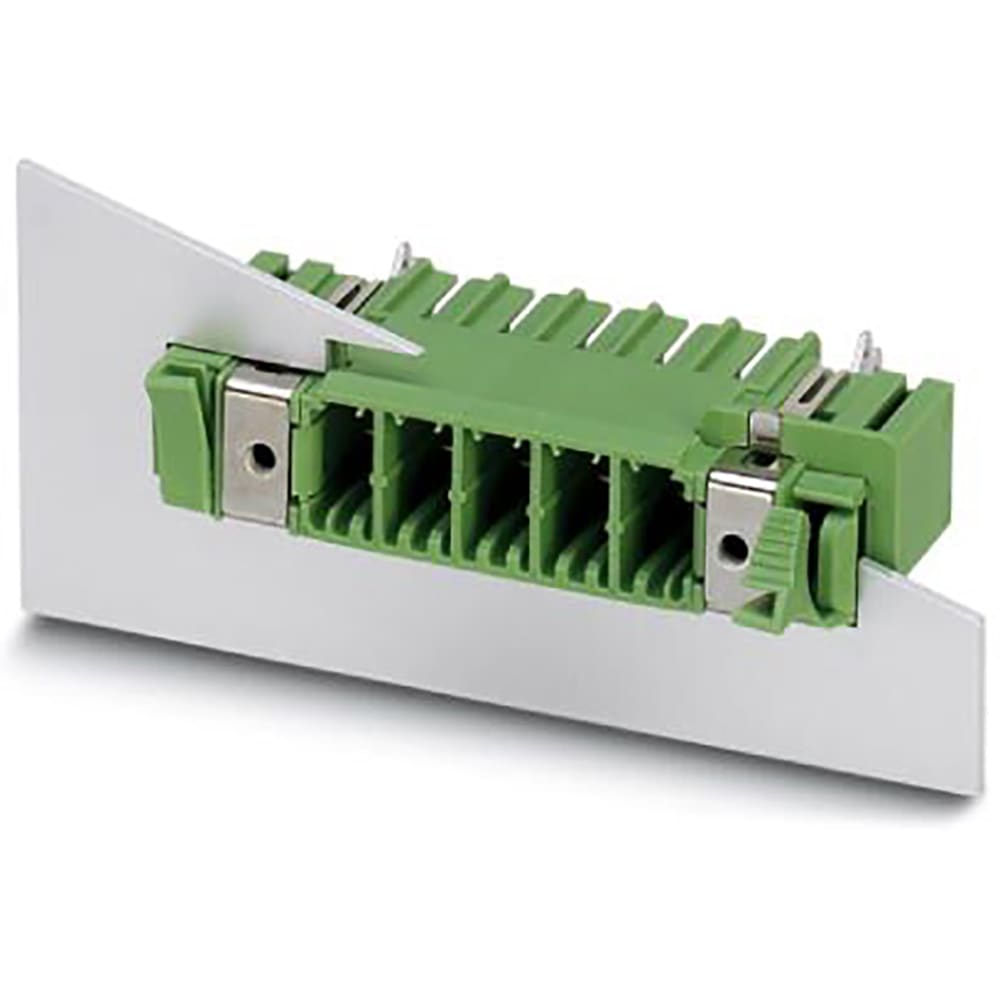

Header 7.62mm 8AWG 630V 41A 6 Position Combicon Power Series | Phoenix Contact 1716108
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1716108 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1716108
| Part Name | 1716108 |
| Manufacturer | Phoenix Contact |
| Material Of The Contact Coat | Tin |
| Assembly Type | Wave soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Assembly | Threaded joint |
| Product Article Number Of Manufacturer | 1716108 |
| Material Of Insulation | PA |
| Product Description | Feed-through header |
| Pole Number | 6 |
| Category | Connectors |
| Height | 21.1 |
| Width | 71.22 |
| Depth | 29.25 |
| GTIN | 4046356136723 |
| Type Of Interlock | Threaded joint |
| Rated Current (A) | 32 |
| Manufacturer Product Designation | Feed-through header |
| Color Of Housing | green |
