1717831-2
Conn DIMM Socket SKT 52 POS 0.8mm Solder RA SMD T/R
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1717831-2 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

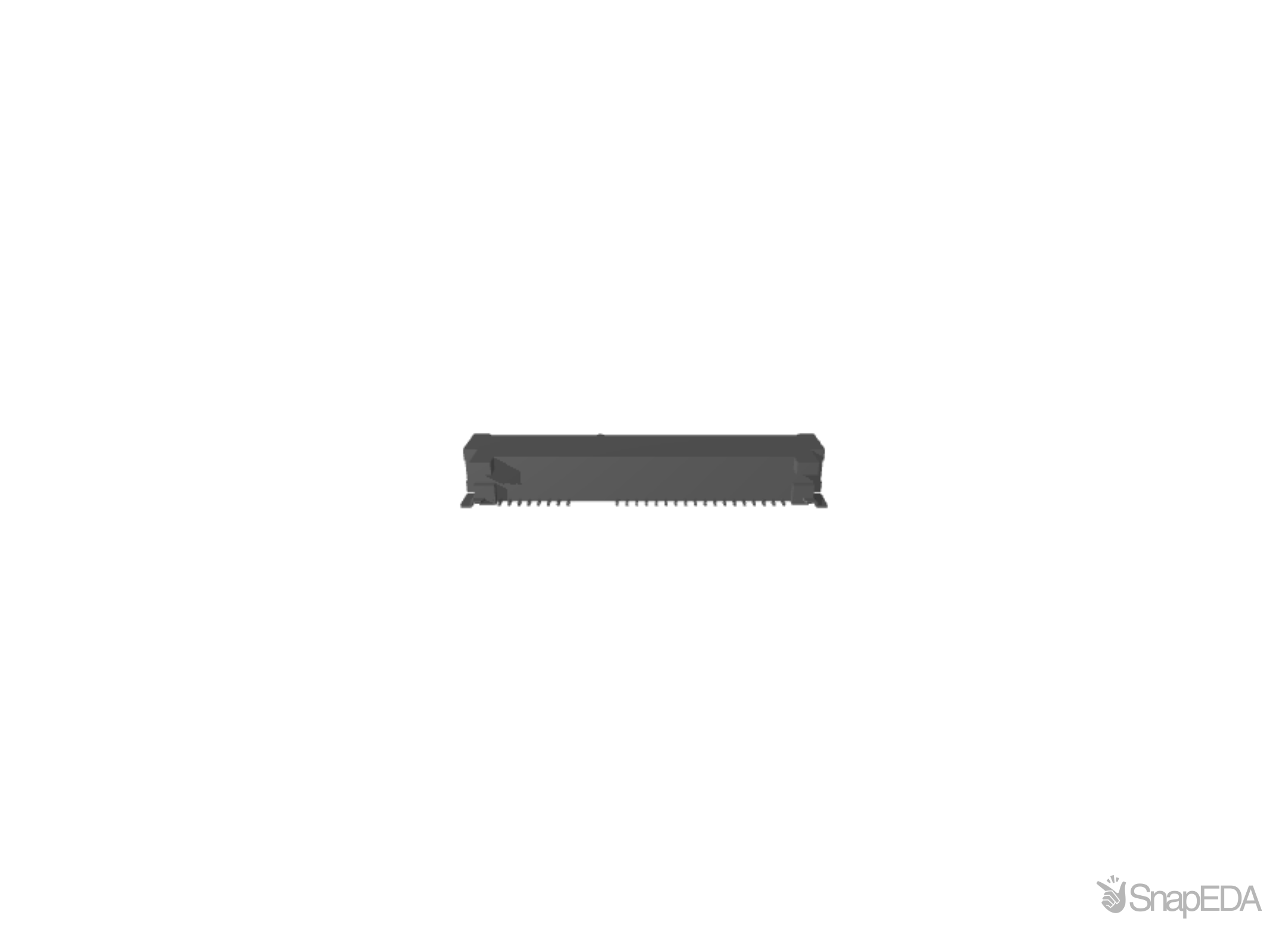

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1717831-2
| Part Name | 1717831-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .031 |
| Circuit Application | Signal |
| TE Internal Number | 1717831-2 |
| Termination Method to Printed Circuit Board | Surface Mount |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 52 |
| PCB Mount Retention | Without |
| Ejector Location | Both Ends |
| PCB Mount Orientation | Horizontal |
| Connector System | Board-to-Board |
| Number of Rows | 2 |
| Ejector Type | Locking |
| Housing Color | Black |
| Bus Type | Mini PCI Express |
| Contact Underplating Material | Nickel |
| Sealable | No |
| Number of Keys | 1 |
| Operating Temperature Range | -67 – 185 |
| Insertion Style | Cam-In |
| Packaging Method | Reel |
| Packaging Quantity | 500 |
| Contact Base Material | Copper Alloy |
| Height Above PC Board | .157 |
| Contact Mating Area Plating Material | Gold Flash |
| Stackable | No |
| Housing Material | High Temperature Thermoplastic |
| 端子の下地めっきの材料 | Nickel |
| Module Orientation | Right Angle |
| High Temperature Housing | Yes |
| Stack Height | 4 |
| Row-to-Row Spacing | .244 |
| Contact Current Rating (Max) (A) | .5 |
| UL Flammability Rating | UL 94V-0 |
| PCB Contact Termination Area Plating Material | Gold Flash |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
