171813-3003

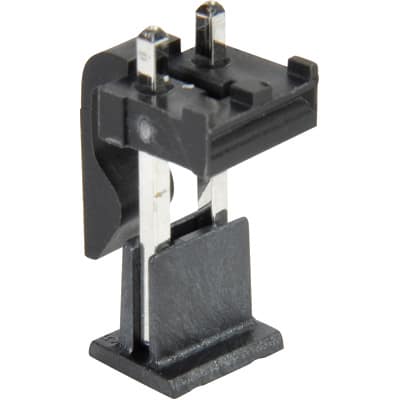

Conn,Rect/PCB,Header,0.156",W2B,3 Pos,Vert.,FrLk,KK 396 RPC Ser,Tin,Tape/Reel | Molex Incorporated 171813-3003
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 171813-3003 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

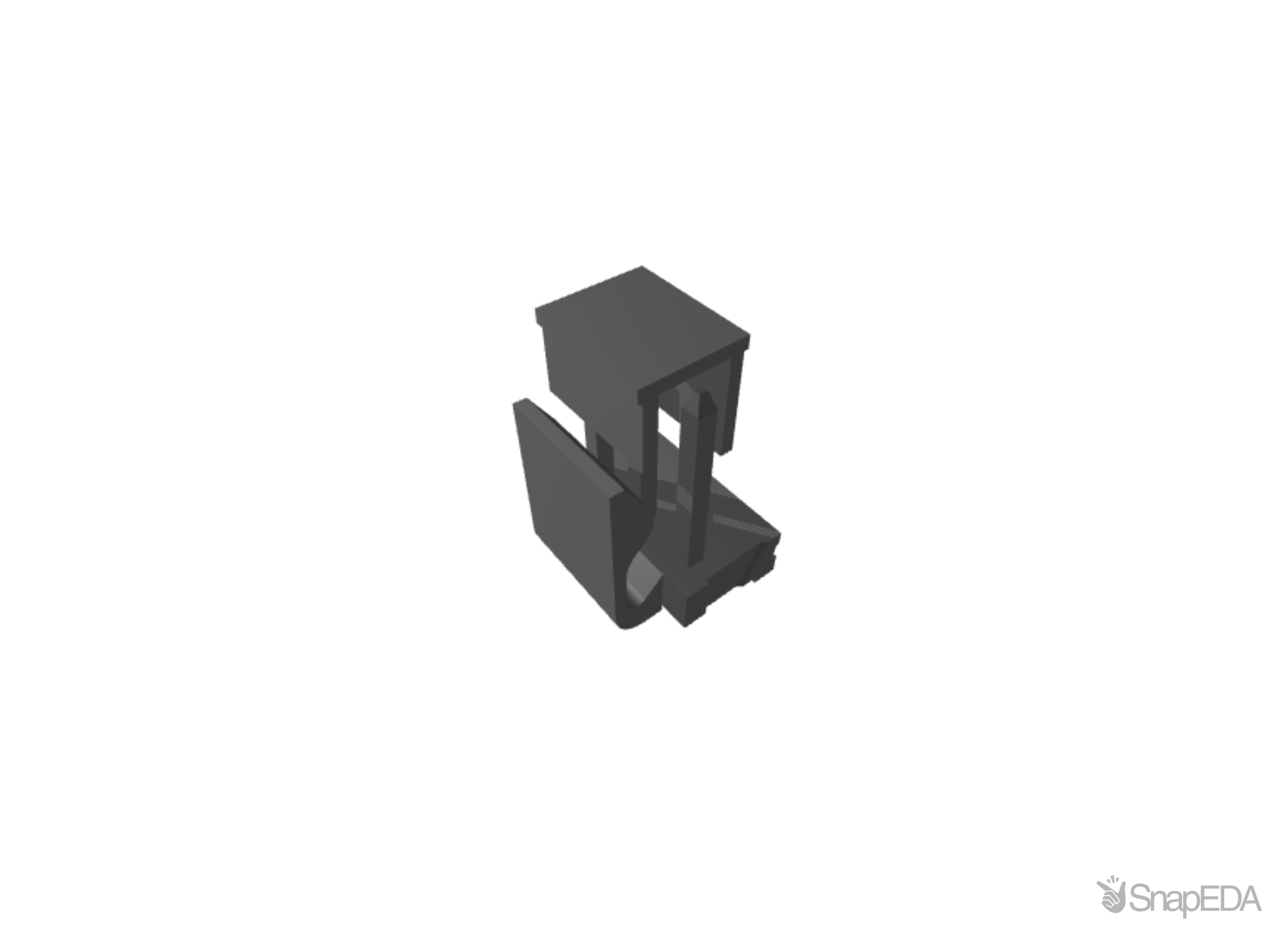

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 171813-3003
| Part Name | 171813-3003 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Unshrouded |
| Current Rating (A) | 13.0 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 600.0 V |
| Series | KK 396 |
| Body Orientation | Straight |
| Pitch | 3.96 (mm) |
| Connector System | Board to Board, Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Contact Material | Brass |
| Number Of Contacts | 3 |
| Series Number | 171813 |
Inventory for the 171813-3003 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
377
|
|
Visit Site | |
|
★ Featured
|
11,250
|
280 x $1.26
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
8,705
|
|
Visit Site | |
| Conrad |
8,705
|
|
Visit Site | |
| Farnell UK |
7,900
|
|
Visit Site | |
| Heilind Electronics |
|
|
Visit Site | |
| Newark |
8,705
|
|
Visit Site | |
| Onlinecomponents |
1,741
|
|
Visit Site | |
| Powell Electronics |
5,745
|
1 x $1.23
|
Visit Site | |
| RS UK |
1,245
|
5 x $1.74
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
8,700
|
|
Visit Site | |
| Verical |
8,700
|
|
Visit Site |
No issues have been reported for the 171813-3003
