171826-8
EI Series, 2.5mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 171826-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

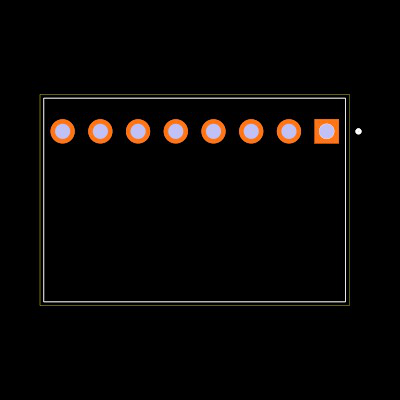

Footprint
No web preview
This Footprint is Available for

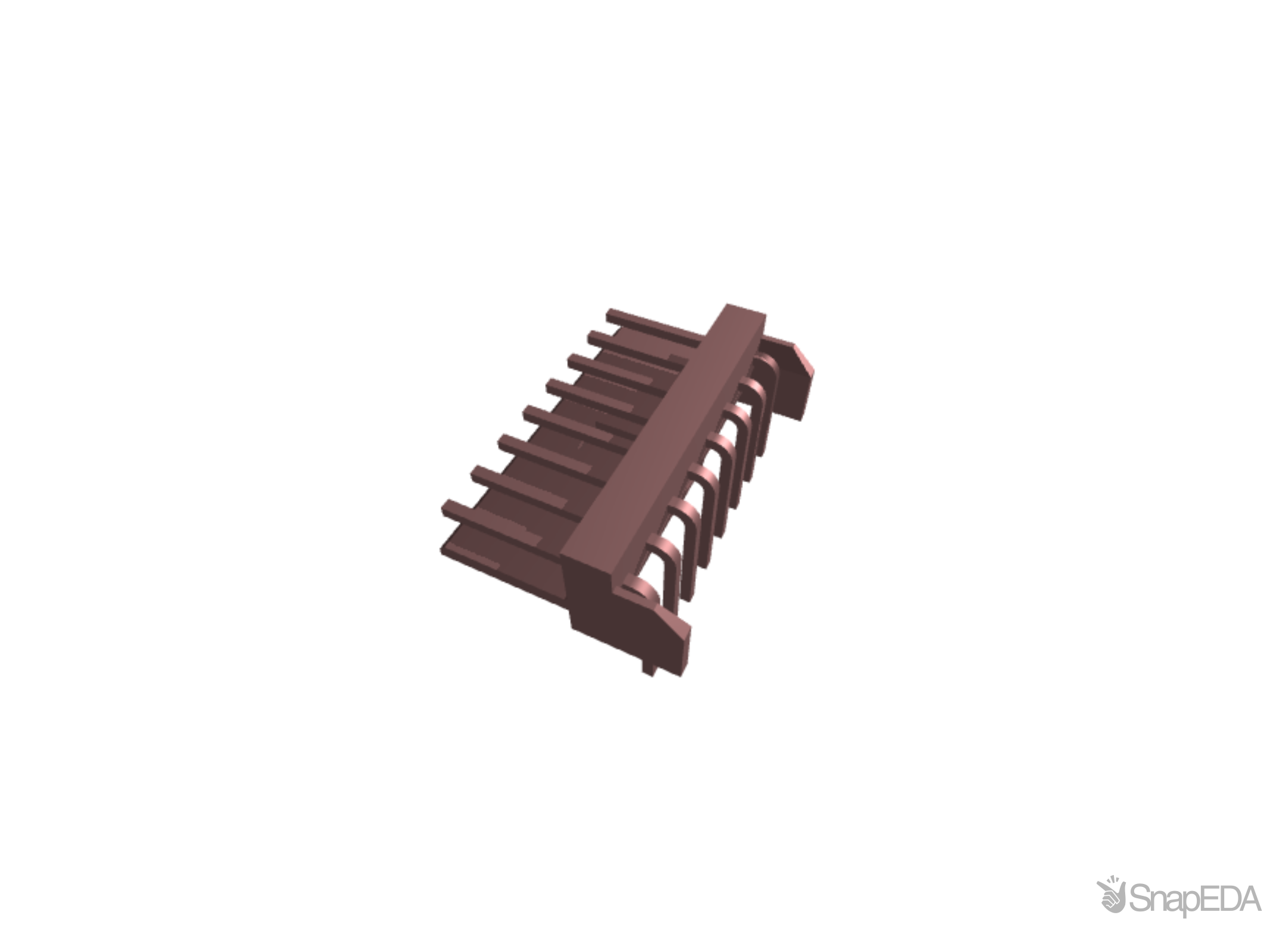

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 171826-8
| Part Name | 171826-8 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .098 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | 6/6 Nylon |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 250 |
| Number of Positions | 8 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.6 |
| Termination Post & Tail Length | 3.6 |
| Contact Current Rating (Max) (A) | 3.5 |
| Mating Post Length | 7.5 |
| TE Internal Number | 171826-8 |
| PCB Mount Orientation | Horizontal |
| Connector System | Wire-to-Board |
| Connector Height | 6.7 |
| Number of Rows | 1 |
| Housing Color | Natural |
| Header Type | Shrouded |
| Contact Mating Area Plating Material Finish | Matte |
| Strain Relief | Without |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | .8 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector Length | 20 |
| Operating Temperature Range | -4 – 203 |
| CSA Certified | Yes |
| Packaging Method | Bag/Box |
| Packaging Quantity | 250 |
| Agency/Standard | UL |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Nickel |
| RoHS | True |
| Mating Retention | With |
| Contact Base Material | Brass |
| PCB Mount Alignment | Without |
| Mating Retention Type | Polarized Lock |
| Panel Mount Feature | Without |
| PCB Connector Assembly Type | PCB Mount Header |
| Contact Retention | Without |
| Connector Profile | Low |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Sealable | No |
