1729144
PCB Terminal Screw 5.08mm 16AWG 400V 13.5A 4 Position COMBICON MKDSN Series | Phoenix Contact 1729144
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1729144 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

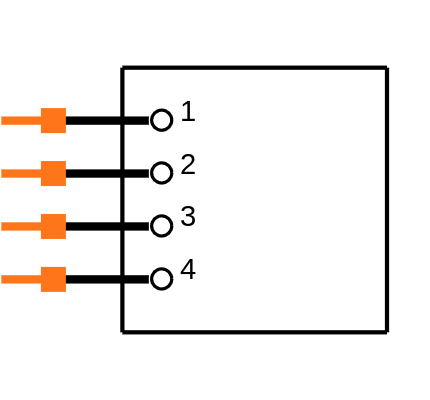

Symbol
No web preview
This Symbol is Available for

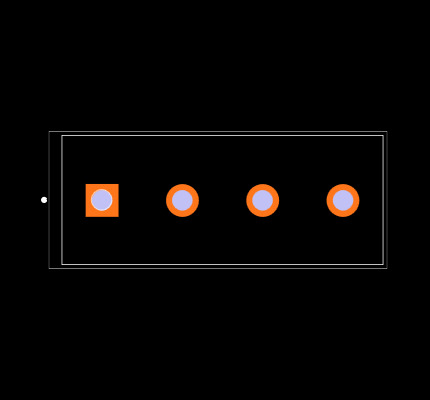

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1729144
| Part Name | 1729144 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Assembly Type | Print mounting |
| Min. Operating Temperature | -40 |
| Product Article Number Of Manufacturer | 1729144 |
| Product Description | PCB terminal block |
| Max. Connectable Conductor Cross-section Multiple Wire | 0.75 |
| Max. Operating Temperature | 105 |
| Max. Line Cross Section, Rigid | 1.5 |
| Height | 13.5 |
| Certificate/approval | cULus Recognized, VDE Zeichengenehmigung, DNV GL |
| Width | 20.32 |
| Depth | 8.15 |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| GTIN | 4017918026011 |
| Net Weight | 0.00358 |
| Manufacturer Product Designation | PCB terminal block |
| Number Of The Executions Of The Housing Parts | 0 |
| Application Standards | IECÂ 60947-7-4 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 13.5 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250 V |
| Series | MKDSN 1.5/4-5.08 |
| Body Orientation | Straight |
| Termination Method | Screw |
| Depth | 8.1 (mm) |
| Width | 10 (mm) |
| Length | 20.32 (mm) |
| Number Of Rows | 1 |
| Pitch | 5.08 (mm) |
| Number Of Contacts | 4 |
| Type | PCB Terminal Block |
