1734580-8
Conn RJ-45 F 10 POS 1.02mm Solder RA Thru-Hole 10 Terminal 1 Port Cat 3 Box/Tray
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1734580-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

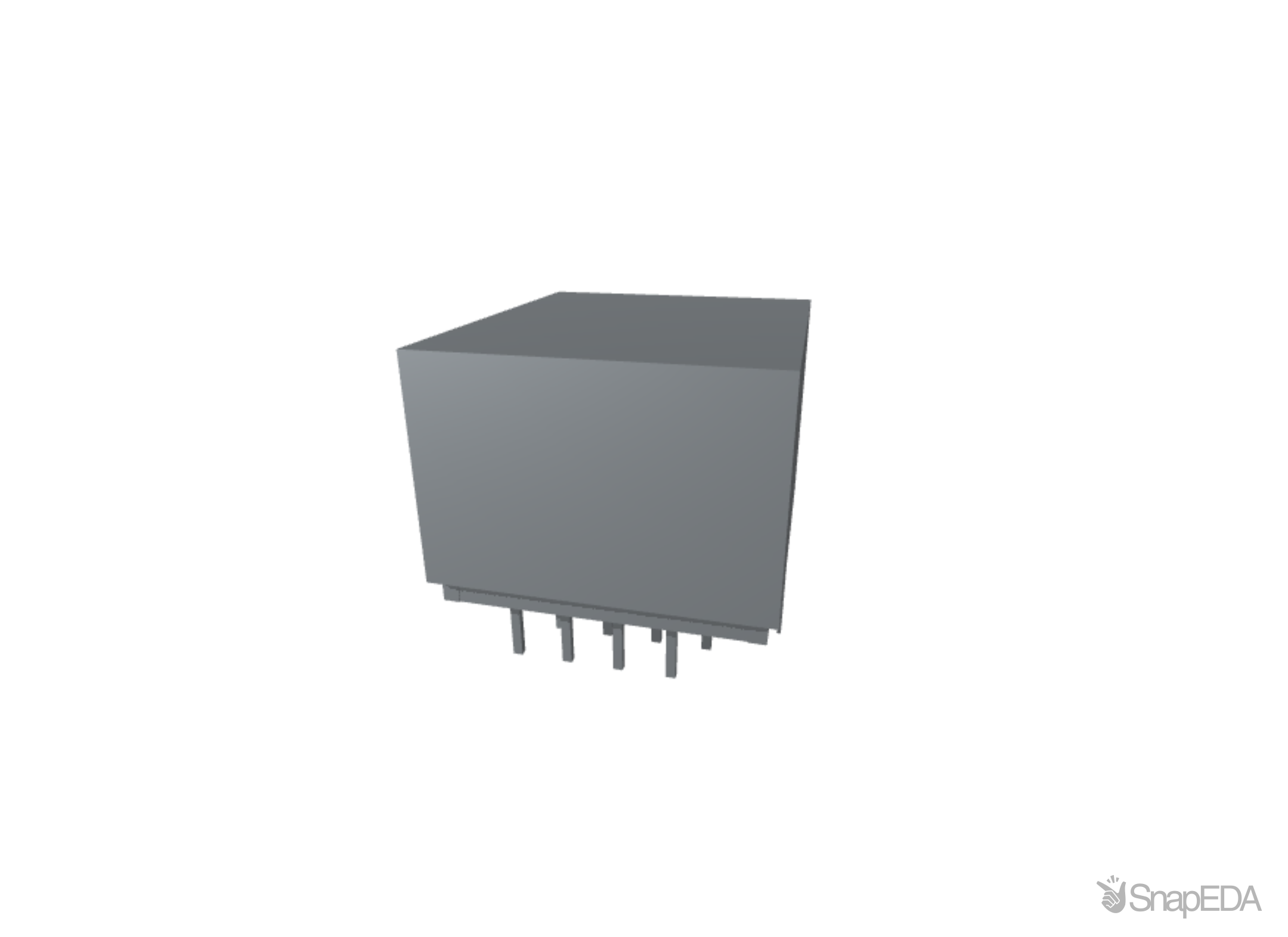

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1734580-8
| Part Name | 1734580-8 |
| Manufacturer | TE Connectivity |
| コネクタ製品タイプ | Connector Assembly |
| Centerline (Pitch) | .04 |
| Circuit Application | Signal |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| Modular Jack Latch Orientation | Standard - Latch Down |
| Housing Material | PA 46 GF30 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 10 |
| Number of Loaded Positions | 8 |
| Panel Mount Feature | Without |
| PCB Thickness (Recommended) | .063 |
| Connectors & Connector Components Type | Connector |
| TE Internal Number | 1734580-8 |
| PCB Tail Length | 3.25 |
| PCB Mount Orientation | Right Angle |
| Status Indicator | None |
| Connector Height | 12.25 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 – 85 |
| Shielded | Yes |
| Mating Entry Location | Side |
| Port Matrix Configuration | 1 x 1 |
| Packaging Method | Tray |
| Packaging Quantity | 25 |
| Keyed | No |
| 端子の下地めっきの材料 | Nickel |
| Contact Mating Area Plating Material | Gold |
| Modular Jack & Plug Interface Type | RJ45 |
| RoHS | True |
| Connector Contact Density | Standard |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Shield Plating Material | Nickel |
| Modular Jacks & Plugs Products | RJ Type Jacks & Plugs |
| Modular Connector Style | Jack |
| Shield Material | Brass |
| Performance Category | Cat 3 |
| Panel Ground Location | Top |
| Contact Mating Area Plating Material Thickness | 50 |
| Grounding Options | PCB Ground |
| Contact Current Rating (Max) (A) | 1 |
| UL Flammability Rating | UL 94V-0 |
| Connector Profile | Low |
| PCB Contact Termination Area Plating Material | Gold Flash |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
