1735183-1
Serial Ata & Serial Attached Scs
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1735183-1 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

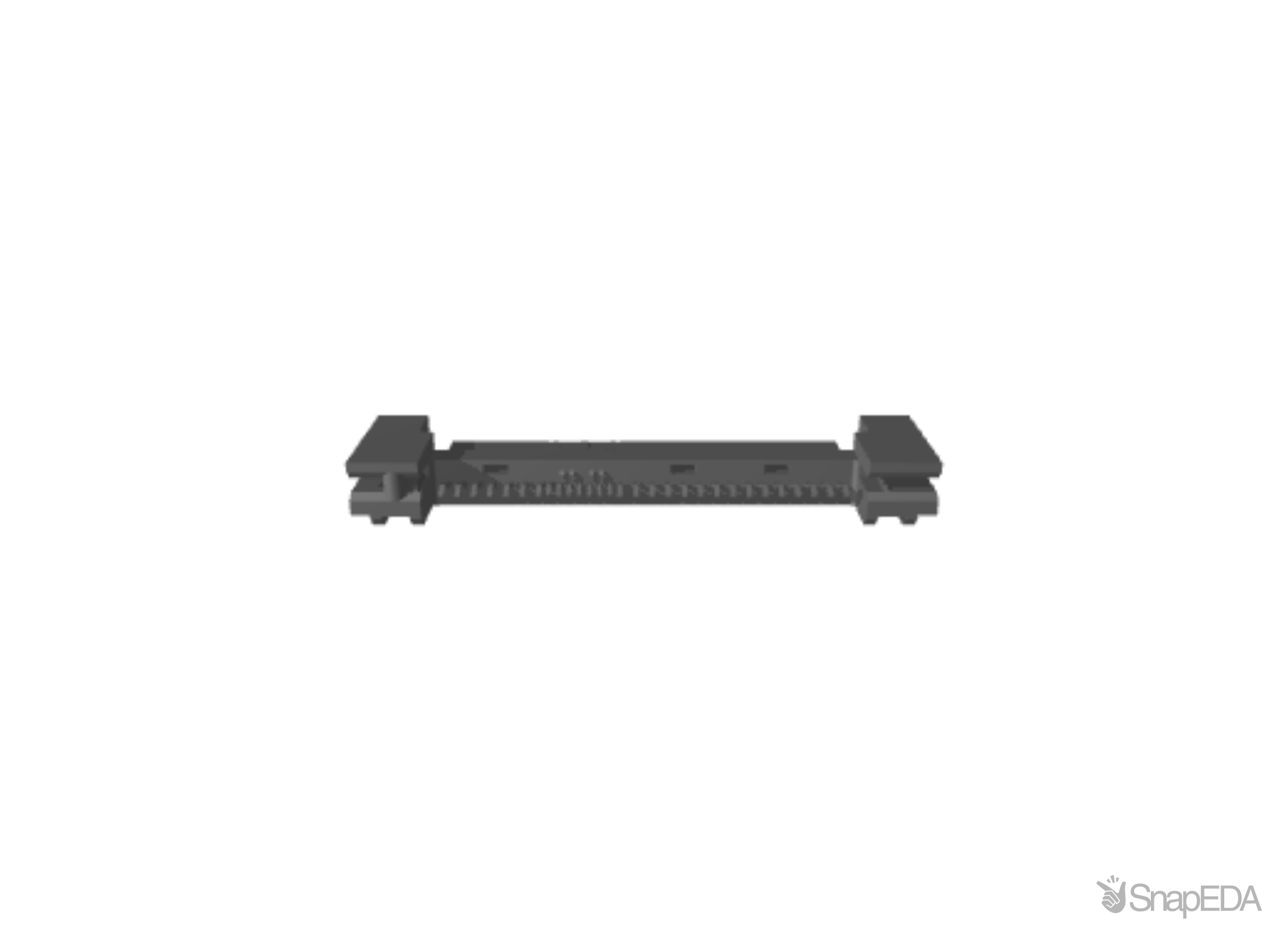

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1735183-1
| Part Name | 1735183-1 |
| Manufacturer | TE Connectivity / AMP |
| Centerline (Pitch) | 1.27 |
| Circuit Application | Power & Signal |
| Housing Material | Thermoplastic |
| Connector Style | Plug |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Shell | Without |
| TE Internal Number | 1735183-1 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Solder Tail Contact Plating Thickness | 1.91 |
| Number of Rows | 1 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Plug Configuration | SAS |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 – 85 |
| Contact Base Material | Brass |
| Packaging Method | Tray |
| Packaging Quantity | 40 |
| Keyed | No |
| Number of Ports | 1 |
| Number of Positions | 29 |
| Contact Mating Area Plating Material | Gold |
| Stackable | No |
| RoHS | True |
| PCB Mounting Style | Straddle Mount |
| 端子の下地めっきの材料 | Nickel |
| High Temperature Housing | Yes |
| Product Grouping | SAS |
| UL Flammability Rating | UL 94V-0 |
| Contact Current Rating (Max) (A) | 1.5 |
| Contact Mating Area Plating Thickness | 30 |
| PCB Contact Termination Area Plating Material | Tin |
| Sealable | No |
