1735446-7
Connector Header Through Hole 7 position 0.079" (2.00mm)
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1735446-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

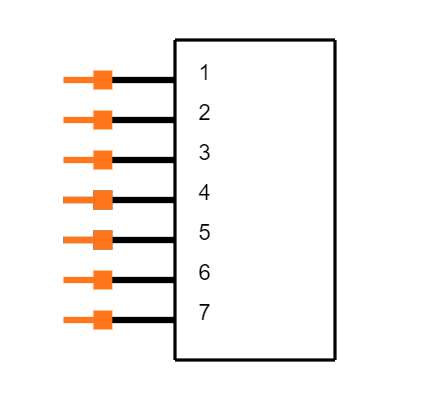

Symbol
No web preview
This Symbol is Available for

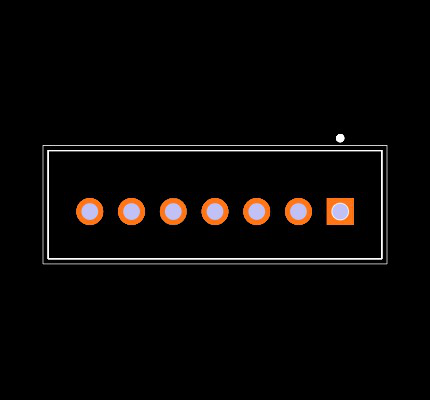

Footprint
No web preview
This Footprint is Available for

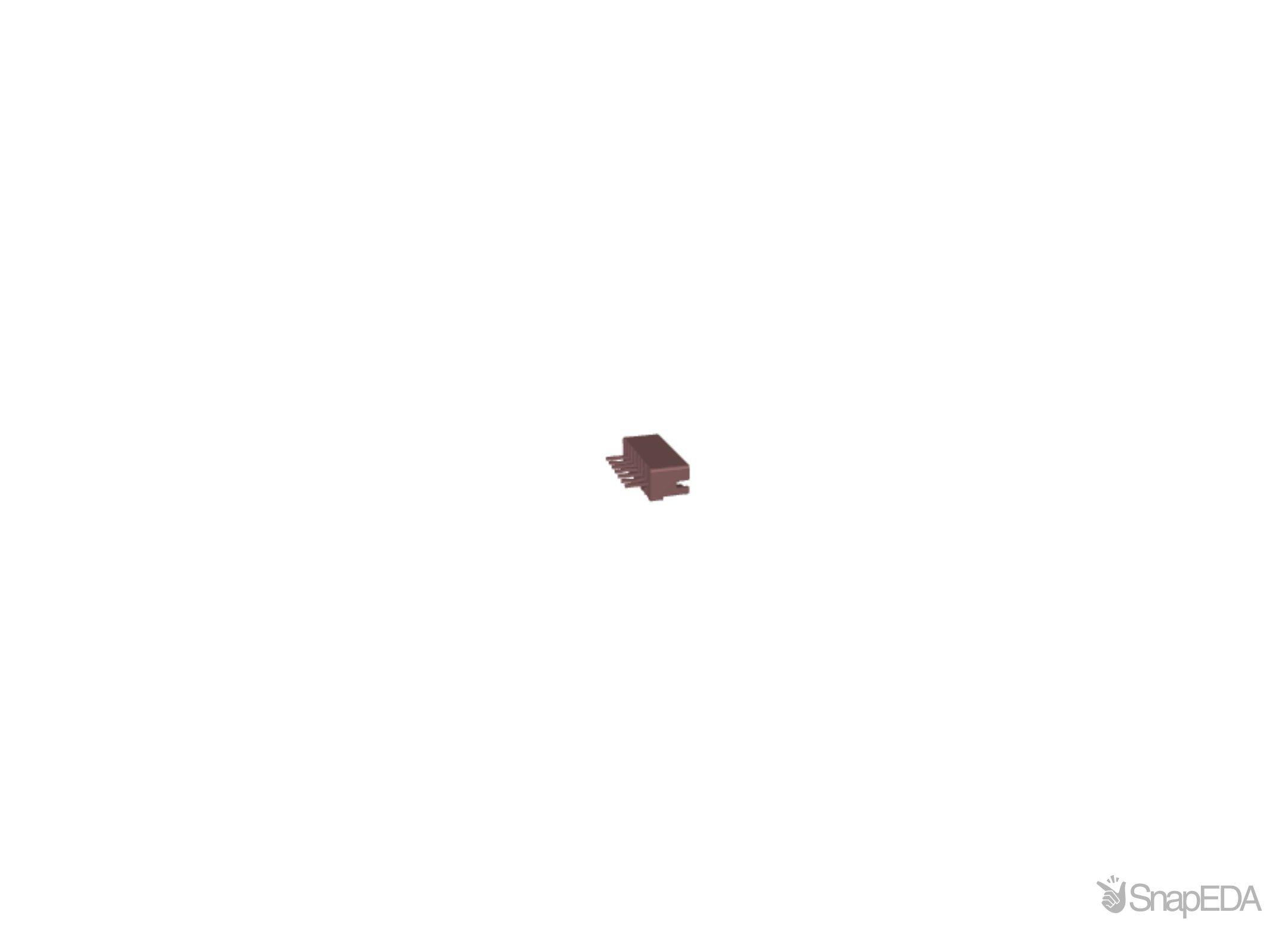

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1735446-7
| Part Name | 1735446-7 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .079 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Thermoplastic |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Retention Solder Tails |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .039 – .063 |
| Termination Post & Tail Length | .134 |
| Contact Current Rating (Max) (A) | 3 |
| Mating Post Length | .131 |
| TE Internal Number | 1735446-7 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | 6.07 |
| Number of Rows | 1 |
| Housing Color | Natural |
| Connector Width | .185 |
| Contact Underplating Material | Nickel |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | 2.03 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector Length | 16 |
| Header Type | Partially Shrouded |
| Operating Temperature Range | -13 – 185 |
| Contact Mating Area Plating Material Finish | Bright |
| Packaging Method | Bag |
| Packaging Quantity | 300 |
| Contact Base Material | Copper Alloy |
| Contact Layout | Inline |
| 端子の下地めっきの材料 | Nickel |
| Number of Positions | 7 |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mating Retention | With |
| Strain Relief | Without |
| PCB Mount Alignment | Without |
| Mating Retention Type | Locking |
| PCB Connector Assembly Type | PCB Mount Header |
| Contact Retention | Without |
| Connector Contact Load Condition | Fully Loaded |
| PCB Contact Termination Area Plating Material Finish | Bright |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Wire Size | 30 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1735446-7 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
16,876
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
9,600 x $0.14
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Onlinecomponents |
15,300
|
|
Visit Site | |
| Powell Electronics |
10,098
|
|
Visit Site | |
| Sager |
|
19,200 x $0.13
|
Visit Site | |
| TE Store |
16,876
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| Verical |
15,300
|
|
Visit Site |
No issues have been reported for the 1735446-7
If you experienced any issues with the symbol or footprint, please report it.
