174147-2
Multilock 040 Series 3.8mm Pitch 16 Way 2 Row Male Straight PCB Housing | TE Connectivity 174147-2
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 174147-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

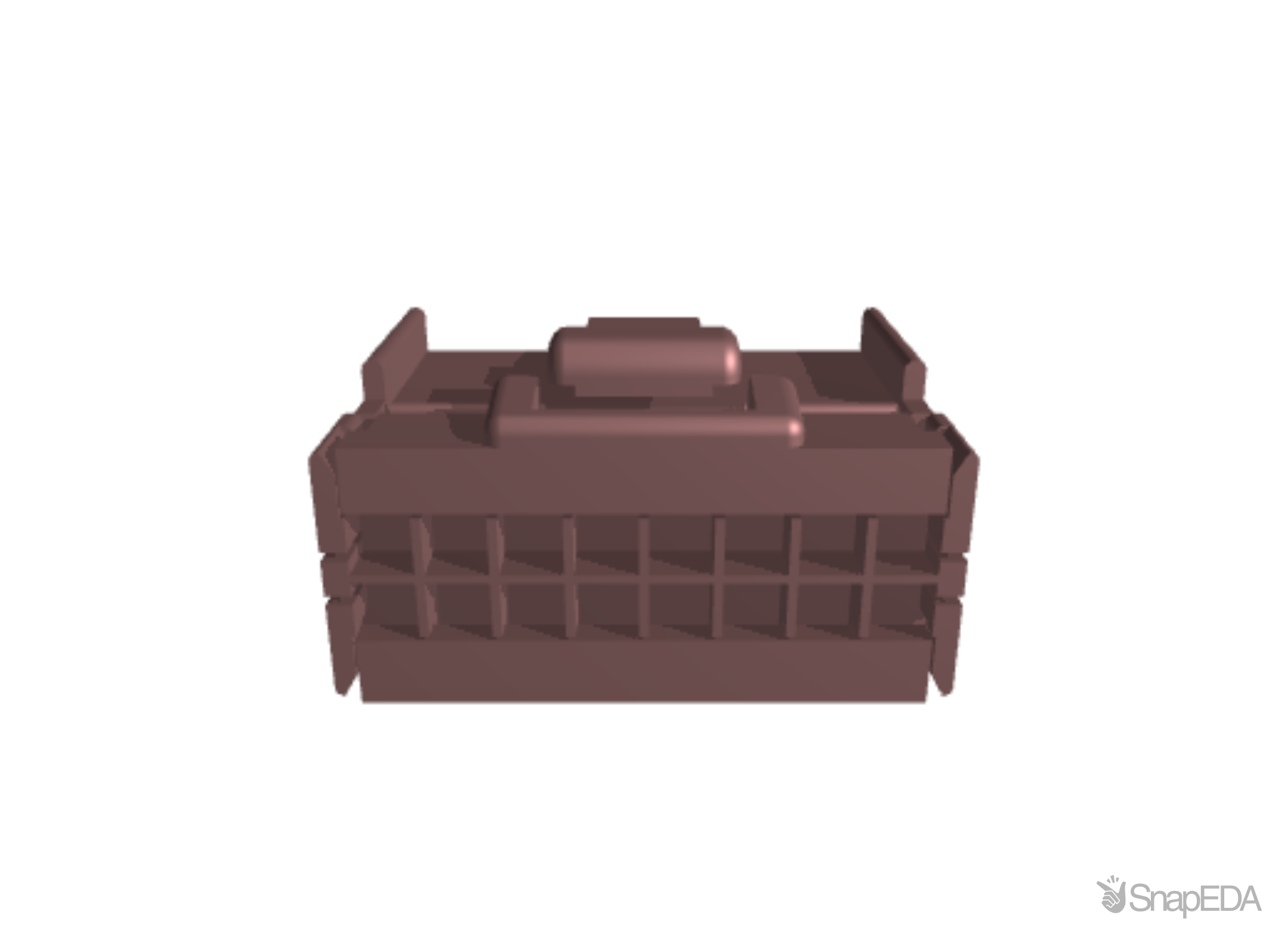

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 174147-2
| Part Name | 174147-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 3.8 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 1.248 |
| Operating Voltage (V) | 12 |
| Connector Style | Housing for female terminals |
| Connector Position Assurance Capable | No |
| Number of Positions | 16 |
| Hybrid Connector | No |
| TE Internal Number | 174147-2 |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Strain Relief | No |
| Body Material | PBT |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | Yes |
| Operating Temperature Range | -30 – 105 |
| Serviceable | Yes |
| Length | 21 |
| Cable Exit Angle | 180° |
| RoHS | True |
| Mating Tab Width | 1.8 |
| Sealable | No |
| Color | Black |
| UL Flammability Rating | UL 94-HB |
| Height | 1.039 |
| Row-to-Row Spacing | .138 |
| Primary Locking Feature | Integrated in Housing |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Mounting Type | Cable Mount |
| Series | MULTILOCK 040 |
| Body Orientation | Straight |
| Pitch | 3.8 (mm) |
| Housing Material | Glass Fibre Reinforced PBT |
| Width | 32.7 (mm) |
| Length | 26.4 (mm) |
| Number Of Rows | 2 |
| Gender | Male |
| For Use With | PCB Connector |
| Number Of Contacts | 16 |
