174552-1

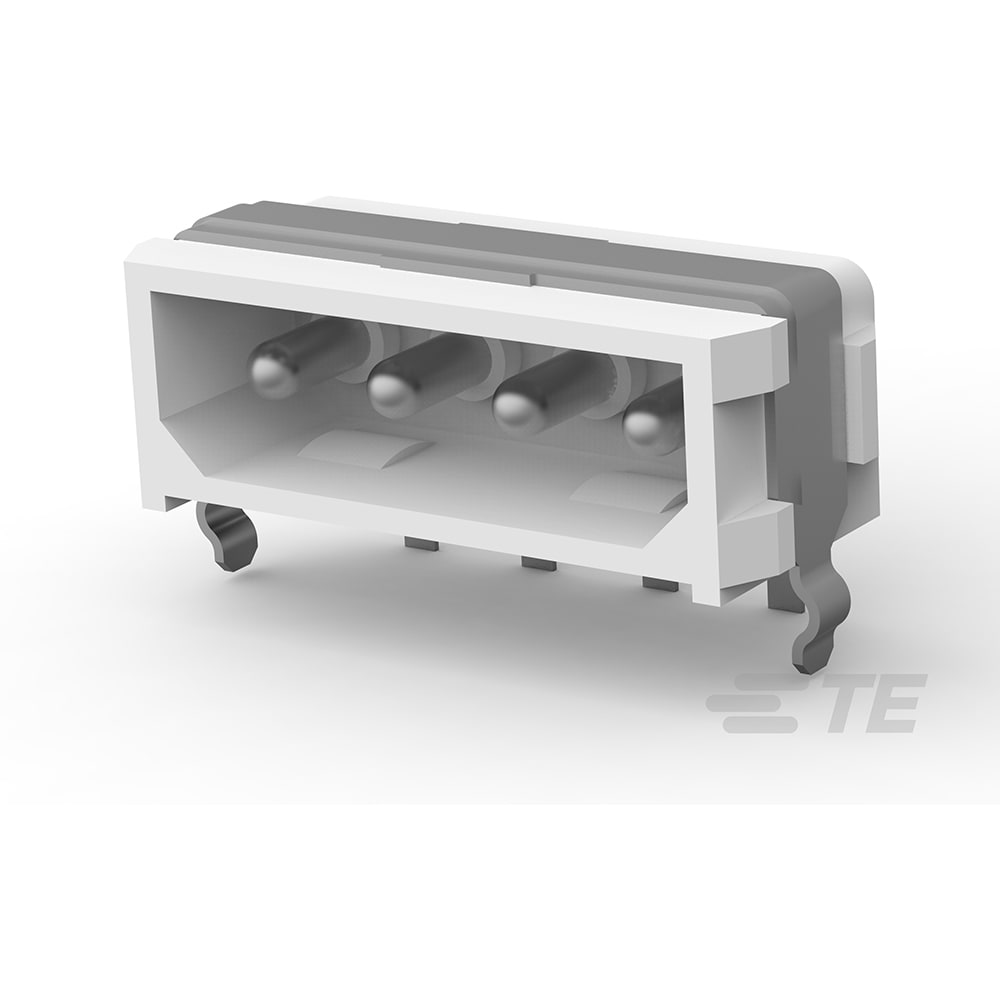

Circular Connector, 4P C-MNL PIN HDR R/A Commercial MATE-N-LOK Series | TE Connectivity 174552-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 174552-1 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 174552-1
| Part Name | 174552-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 5.08 |
| Circuit Application | Power |
| UL Flammability Rating | UL 94V-2 |
| Housing Material | Nylon 66 |
| Width | 11.5 |
| Number of Power Positions | 4 |
| Operating Voltage (V) | 250 |
| For Use With | Socket (Plug) Housing |
| UL Rating | Certified |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Fixed Belt |
| Number of Positions | 4 |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1.6 |
| Termination Post & Tail Length | 4.1 |
| CSA File Number | LR7189A |
| TE Internal Number | 174552-1 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Housing Type | Receptacle |
| Agency/Standard Number | E28476 |
| Housing Color | Natural |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| Operating Temperature Range | -4 – 221 |
| Contact Layout | Inline |
| Number of Rows | 1 |
| Packaging Method | Bag |
| Packaging Quantity | 200 |
| Agency/Standard | UL |
| Contact Termination Area Plating Material | Tin |
| Length | 25.3 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| VDE Tested | No |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Product Type | Header |
| Mating Retention Type | Detent Lock |
| Height | 10.75 |
| Contact Current Rating (Max) (A) | 10 |
| Contact Retention | Without |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 174552-1 by TE Connectivity AMP Connectors from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
7,184
|
|
Visit Site | |
|
★ Featured
|
155
|
|
Visit Site | |
|
★ Featured
|
4,103
|
310 x $1.12
|
Visit Site | |
| Onlinecomponents |
3,200
|
|
Visit Site | |
| Verical |
3,200
|
|
Visit Site |
No issues have been reported for the 174552-1
