1747996-4
3.5 3.96 & 6.2 Centerline 600 V 12 A max.
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1747996-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

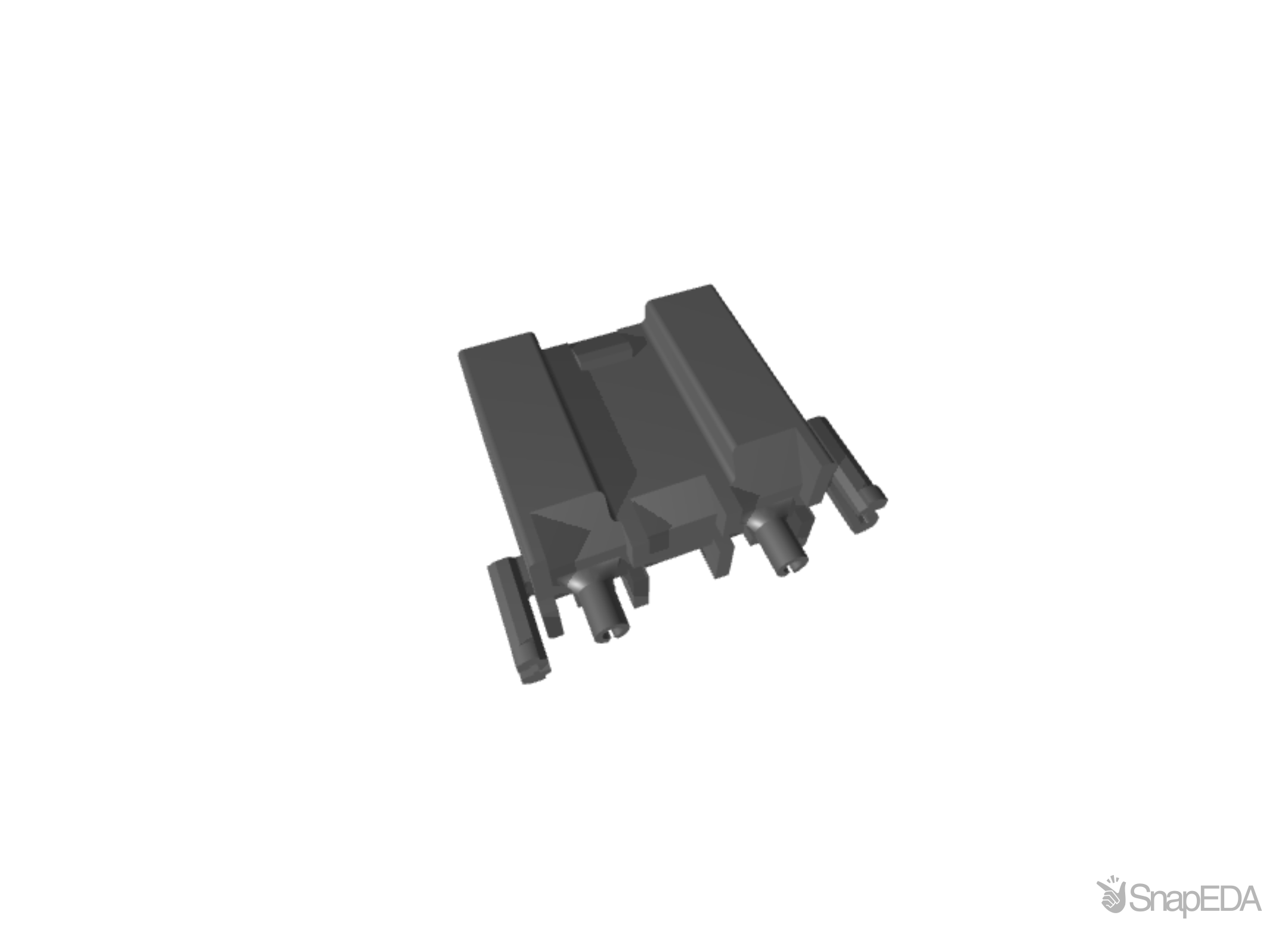

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1747996-4
| Part Name | 1747996-4 |
| Manufacturer | TE Connectivity / AMP |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | 12.4 |
| Keying | D |
| Circuit Application | Power |
| Mating Retention Type | Latch |
| Housing Material | Nylon 6/6 GF |
| Number of Power Positions | 2 |
| Operating Voltage (V) | 600 |
| For Use With | Plug Housing |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| Termination Post & Tail Length | 3.1 |
| TE Internal Number | 1747996-4 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Housing Color | Yellow |
| Number of Signal Positions | 0 |
| Product Type | Header Assembly |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| Operating Temperature Range | -40 – 221 |
| Strain Relief | Without |
| Packaging Method | Bag |
| Housing Type | Receptacle |
| Packaging Quantity | 150 |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 2 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Copper Alloy |
| Tab Width | .122 |
| Contact Retention | With |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | .421 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 20 |
| Contact Mating Area Plating Thickness | .8 |
| Contact Type | Tab |
| Glow Wire Rating | GWT 750°C (Without Flame) |
| Wire Size | 2427 – 7144 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1747996-4
