174977-2
Multilock 040 Series 2.5mm Pitch 20 Way 2 Row Female Straight PCB Housing | TE Connectivity 174977-2
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 174977-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

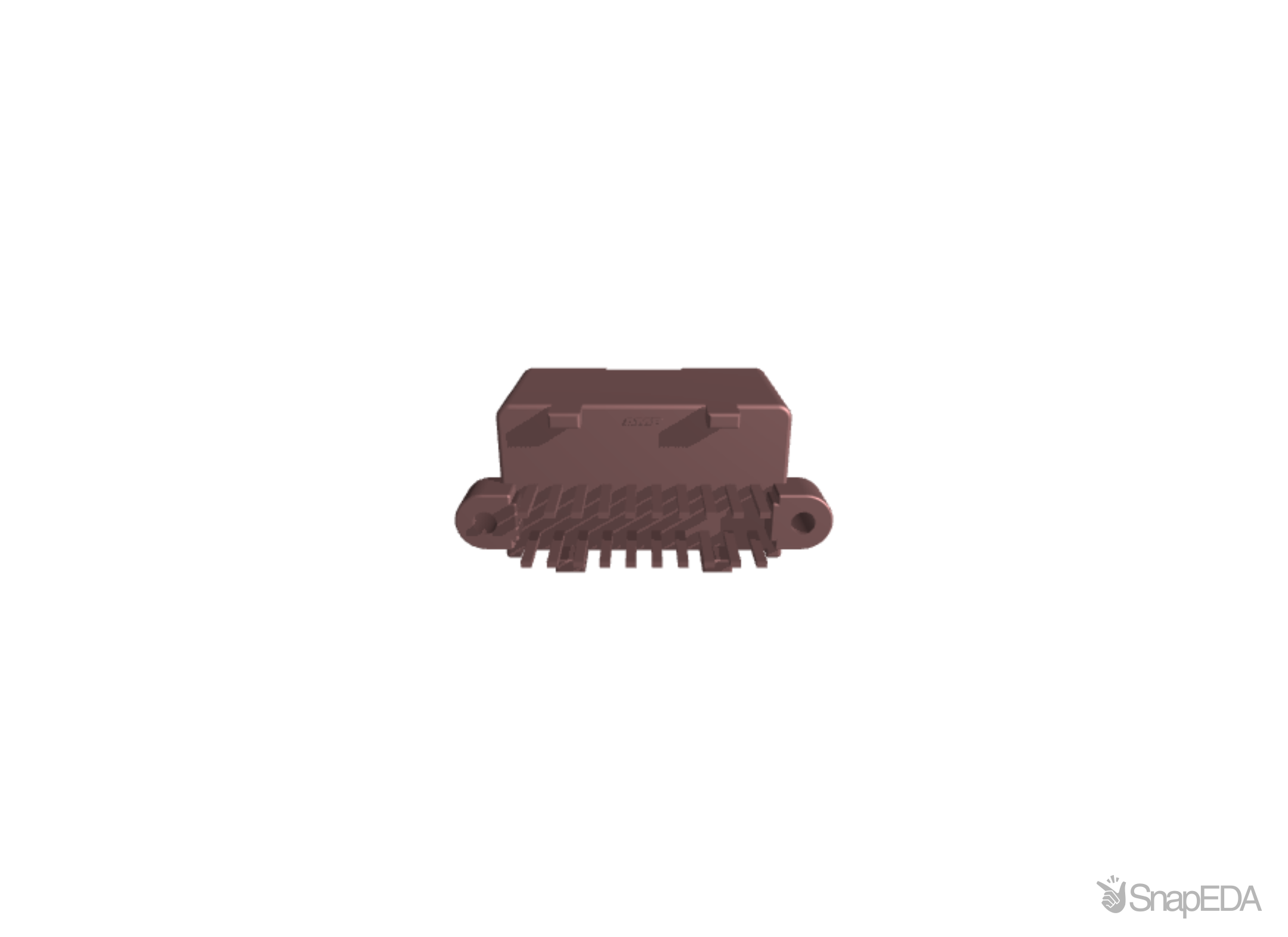

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 174977-2
| Part Name | 174977-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .098 |
| Circuit Application | Signal |
| Packaging Type | Tube |
| Width | 37.5 |
| Operating Voltage (V) | 12 |
| Number of Positions | 20 |
| PCB Mount Retention | Without |
| Tab Thickness | .64 |
| PCB Thickness (Recommended) | .063 |
| Operating Temperature (Max) | 100 |
| TE Internal Number | 174977-2 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Alignment | Without |
| Number of Rows | 2 |
| Voltage Rating (Max) (V) | 12 |
| Termination Method | Through Hole - Solder |
| Number of Signal Positions | 20 |
| Sealable | No |
| Hybrid Header | No |
| Nominal Voltage Architecture (V) | 12 |
| Mounting Orientation | Vertical/180 |
| Operating Temperature Range | -30 to 105 |
| Shielded | No |
| Mounting Holes | With |
| Locking Interface | With |
| Packaging Quantity | 100 |
| Length | 16.9 |
| RoHS | True |
| Tab Width | .039 |
| Color | Black |
| Number of Sections | 1 |
| Profile Height from PCB | 19.2 |
| UL Flammability Rating | UL 94-HB |
| Panel Mount Feature | Without |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Through Hole |
| Gender | Female |
| Body Orientation | Straight |
| Pitch | 2.5 (mm) |
| Housing Material | PBT |
| Width | 19.2 (mm) |
| Length | 37.5 (mm) |
| Number Of Rows | 2 |
| Series | MULTILOCK 040 |
| For Use With | MULTILOCK Wire-to-Board Connector |
| Number Of Contacts | 20 |
