1757820-8

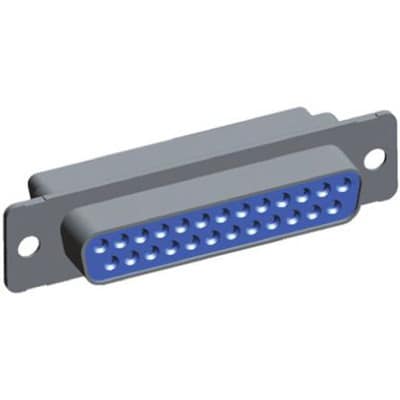

Conn, D-Sub, Cable Socket, 25Pos, STR, 109 Series, Crimp, 20AWG | TE Connectivity 1757820-8
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1757820-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

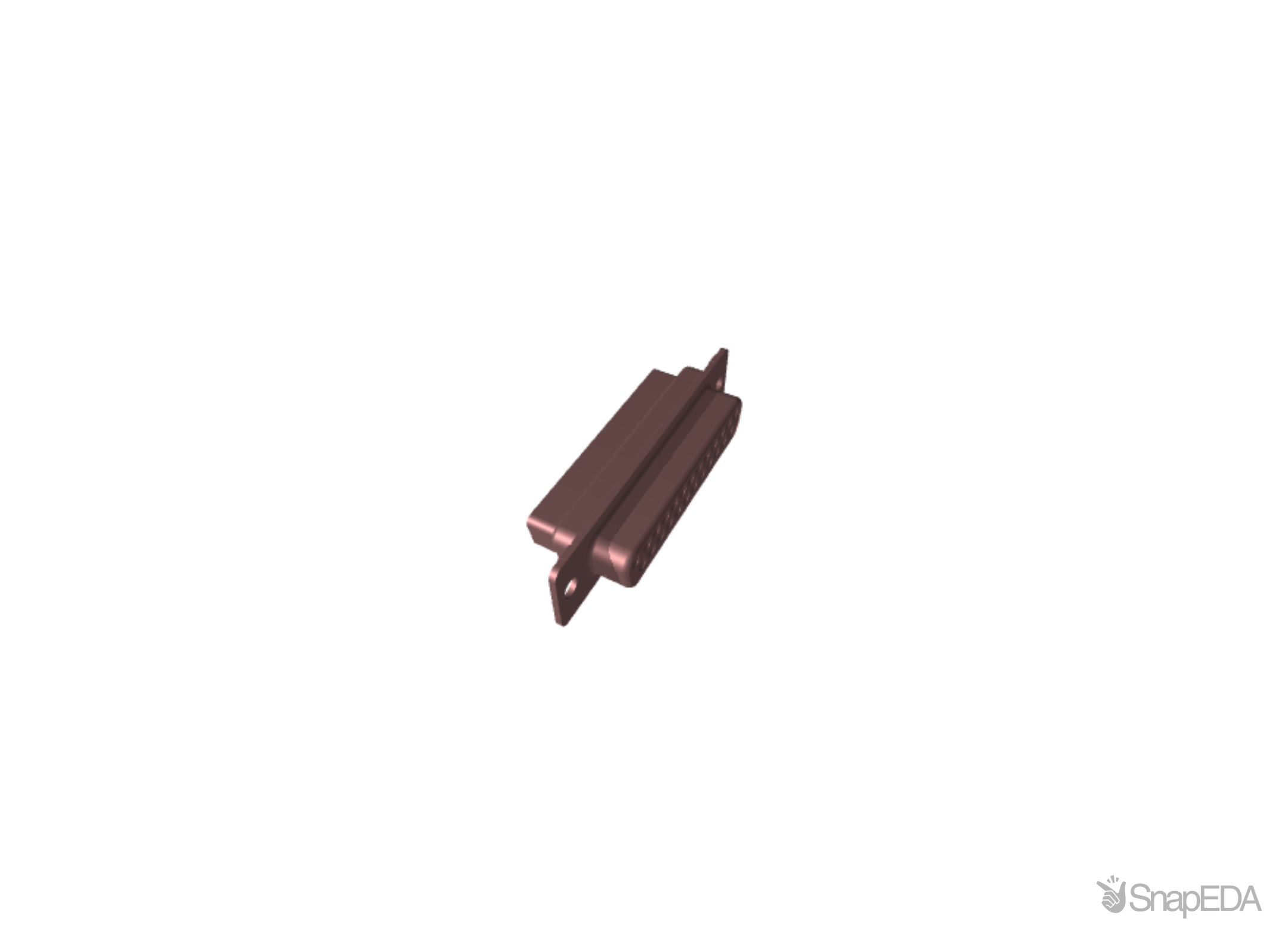

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1757820-8
| Part Name | 1757820-8 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Zinc |
| Category | Connectors |
| Centerline (Pitch) | .109 |
| Shell Material | Steel |
| Circuit Application | Signal |
| Shell Size | 3 |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Wire & Cable |
| TE Internal Number | 1757820-8 |
| Blindmate | No |
| Connector System | Cable-to-Cable |
| Non-Magnetic | No |
| Contact Base Material | Copper Alloy |
| Contact Size | 20 |
| Retention Clip Material | Stainless Steel |
| Operating Temperature Range | -22 – 257 |
| Mounting Hole Diameter | .12 |
| NASA Qualification | No |
| Packaging Method | Package |
| Number of Positions | 25 |
| ULTRA-LITE Connector | No |
| Contact Mating Area Plating Material | Gold over Nickel |
| Power/Signal/Coax Combination | No |
| Product Type | Connector |
| Box Mount D-Sub Connector Insert Arrangement | MS18275-1 |
| Contact Current Rating (Max) (A) | 7.5 |
| Contact Type | Socket |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Copper Alloy |
| Dimensions | 53.42 x 12.93 x 17.06 (mm) |
| Mounting Type | Cable Mount |
| Gender | Female |
| Series | Amplimite 109 |
| Body Orientation | Straight |
| Length | 53.42 (mm) |
| Housing Material | Steel |
| Width | 12.93 (mm) |
| Depth | 17.06 (mm) |
| Minimum Operating Temperature | -55.0 (°C) |
| Termination Method | Crimp |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 25 |
| Maximum Operating Temperature | +125 (°C) |
| Series Number | M24308/2-3Z |
Inventory for the 1757820-8 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
547
|
|
Visit Site | |
| Arrow Electronics |
414
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Onlinecomponents |
77
|
1 x $15.70
|
Visit Site | |
| Verical |
414
|
1 x $37.58
|
Visit Site |
No issues have been reported for the 1757820-8
