175785-2
Conn Multilock Connector RCP 20 POS 3.5mm Solder RA Thru-Hole
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 175785-2 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

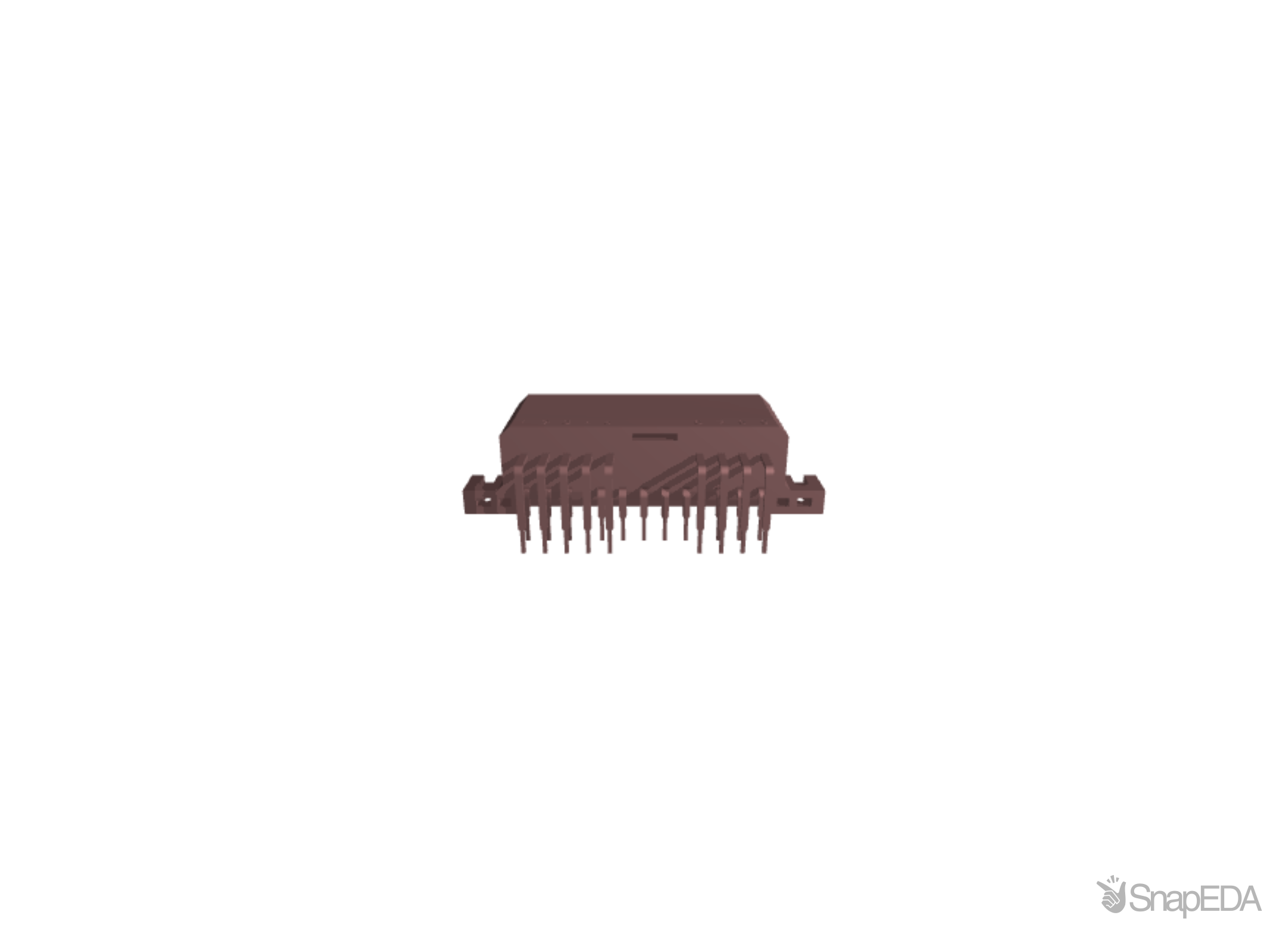

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 175785-2
| Part Name | 175785-2 |
| Manufacturer | TE Connectivity / AMP |
| Centerline (Pitch) | 3.5 |
| UL Flammability Rating | UL 94-HB |
| Width | 60.3 |
| Operating Voltage (V) | 12 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.6 |
| Operating Temperature (Max) | 194 |
| TE Internal Number | 175785-2 |
| Number of Positions | 20 |
| PCB Mount Alignment | Without |
| Number of Rows | 2 |
| RoHS | True |
| Termination Method | Through Hole - Solder |
| Number of Signal Positions | 20 |
| Sealable | No |
| Hybrid Header | No |
| Nominal Voltage Architecture (V) | 12 |
| Mounting Orientation | Horizontal/90 |
| Operating Temperature Range | -30 to 105 |
| Shielded | No |
| Mounting Holes | With |
| Locking Interface | With |
| Length | .732 |
| Voltage Rating (Max) (V) | 12 |
| Life Cycle Status | Obsolete |
| Color | White |
| Number of Sections | 1 |
| Profile Height from PCB | .622 |
| Packaging Type | Tube |
| Panel Mount Feature | Without |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 175785-2
