1761072-2
RECPT,HSSDC2,FIBRE,ON TAPE
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1761072-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

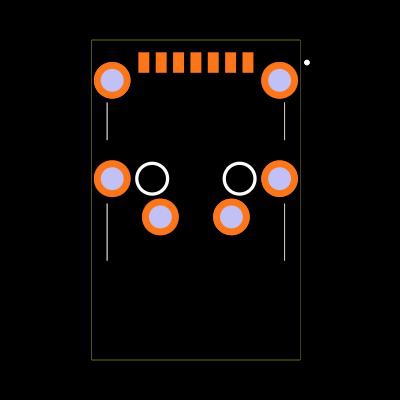

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1761072-2
| Part Name | 1761072-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 1.27 |
| Circuit Application | Signal |
| Housing Material | LCP (Liquid Crystal Polymer) |
| For Use With | Fibre Channel |
| Connector Style | Receptacle |
| Number of Positions | 7 |
| PCB Mount Retention | Without |
| Part Category | HSSDC2 Connectors |
| TE Internal Number | 1761072-2 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Cable-to-Board |
| Product Designation | SFP |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Number of Bays | 1 |
| Operating Temperature Range | -10 – 60 |
| Packaging Method | Tape & Reel |
| Contact Mating Area Plating Material | Gold over Nickel |
| RoHS | True |
| PCB Mounting Style | Surface Mount |
| Mounting Angle | Right Angle |
| Contact Base Material | Copper Alloy |
| Contact Current Rating (Max) (A) | .5 |
| Contact Mating Area Plating Thickness | 50 |
