1761465-4
Conn PCI Express Card Edge SKT 164 POS 1mm Solder RA Thru-Hole Box/Tray
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1761465-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

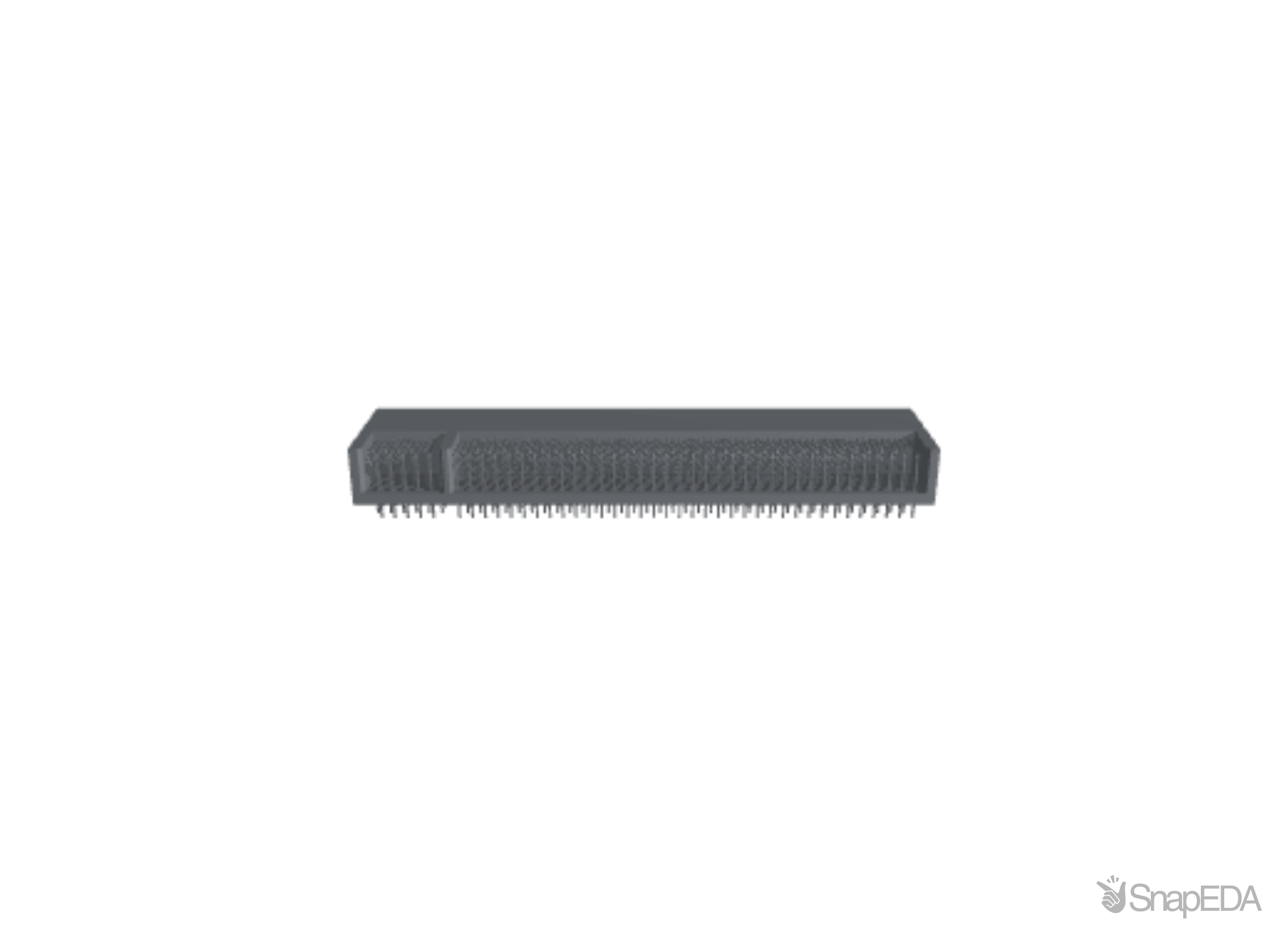

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1761465-4
| Part Name | 1761465-4 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 1 |
| Pick and Place Cover | Without |
| TE Internal Number | 1761465-4 |
| Housing Material | High Temperature Thermoplastic |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 50 |
| Current Rating (A) | 1.1 |
| PCB Mount Orientation | Right Angle |
| Pylon Material | Plastic |
| Termination Post & Tail Length | .091 |
| Ejector | Without |
| Number of Pylons | 2 |
| Number of Positions | 164 |
| Connector System | Board-to-Board |
| Connector Height | 9.4 |
| Housing Color | Black |
| Connector Width | .772 |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| PCB Thickness (Accepted) | .062 |
| Connector Length | 3.504 |
| Bus Type | PCI Express |
| Operating Temperature Range | -40 – 185 |
| Packaging Method | Box |
| Packaging Quantity | 50 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole |
| 端子の下地めっきの材料 | Nickel |
| Weight | 21.302 |
| Contact Mating Area Plating Material Thickness | 30 |
| Contact Current Rating (Max) (A) | 1.1 |
| Voltage (V) | 50 |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1761465-4 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
257
|
|
Visit Site | |
|
★ Featured
|
603
|
|
Visit Site | |
|
★ Featured
|
1,000
|
25 x $14.34
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
15
|
1 x $28.92
|
Visit Site | |
| Farnell UK |
14
|
|
Visit Site | |
| Heilind Americas |
|
500 x $23.24
|
Visit Site | |
| Mouser |
|
500 x $24.90
|
Visit Site | |
| Onlinecomponents |
15
|
|
Visit Site | |
| Powell Electronics |
10
|
|
Visit Site | |
| Sager |
|
500 x $29.05
|
Visit Site | |
| Verical |
14
|
2 x $42.10
|
Visit Site |
No issues have been reported for the 1761465-4
