1761607-6
HEADER, PIN, IDC, AMP-LATCH, 16 POS, LOW PROFILE, PCB, RIGHT ANGLE, BLACK | TE Connectivity 1761607-6
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1761607-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

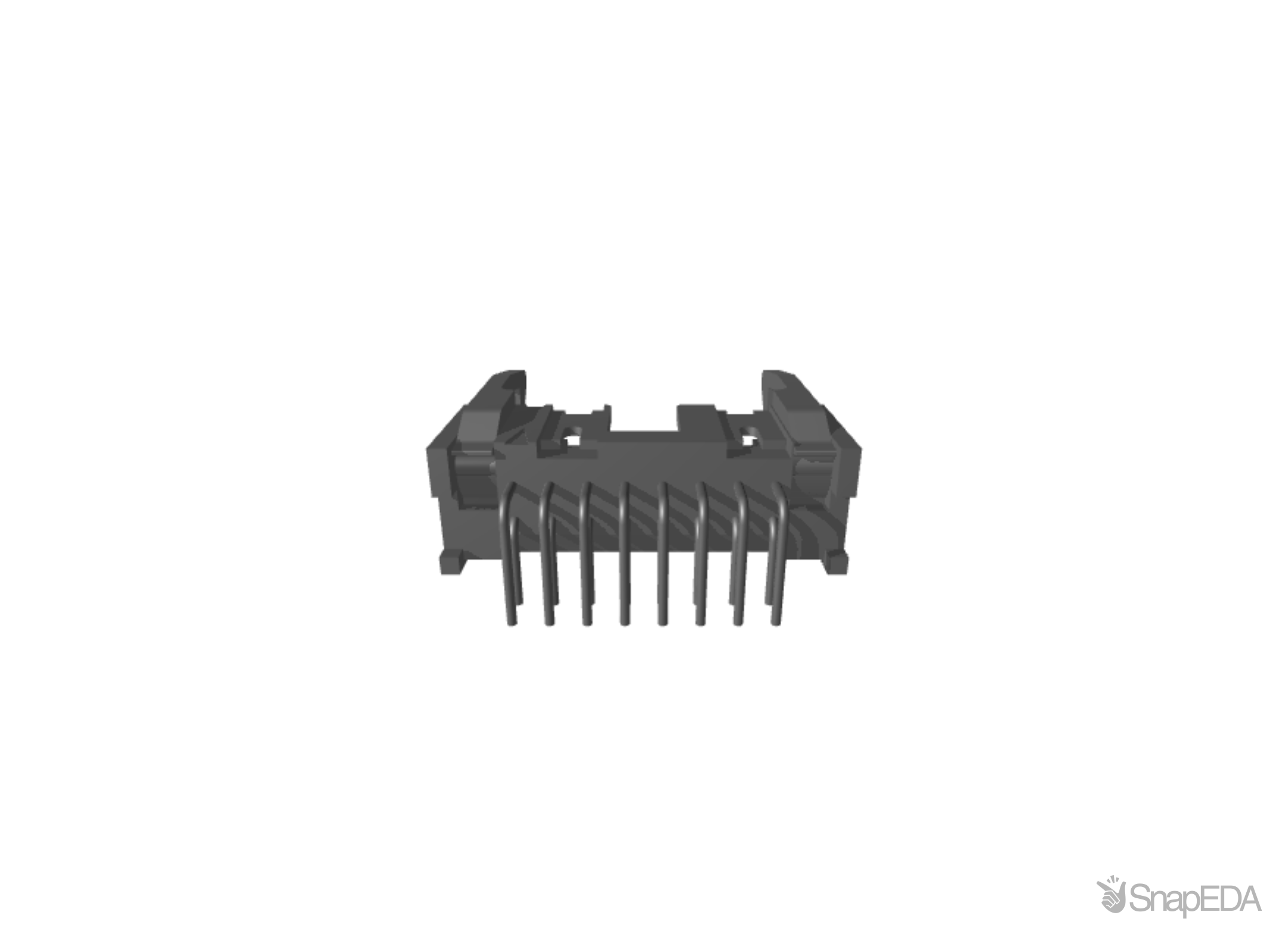

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1761607-6
| Part Name | 1761607-6 |
| Manufacturer | TE Connectivity |
| Wire-to-Board | |
| Category | Connectors |
| Mating Alignment Type | Center |
| Centerline (Pitch) | 2.54 |
| Temperature Rating | High |
| Circuit Application | Signal |
| Insulation Resistance | 1000 5000 |
| Housing Style | 4-Sided |
| Polarization | With |
| Row-to-Row Spacing | 2.54 |
| Contact Termination Area Plating Thickness | 100 |
| Operating Voltage (V) | 250 |
| Connector Style | Plug |
| Ejection Latches | With |
| Connector & Contact Terminates To | Printed Circuit Board |
| Profile | Low |
| PCB Mount Alignment | Without |
| Housing Material | PBT |
| Board Standoff | Without |
| Operating Temperature Range | -65 to 105 |
| TE Internal Number | 1761607-6 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Pin Header |
| Contact Underplating Material | Nickel |
| Product Type | Connector |
| Housing Entry Style | Top |
| Contact Shape | Square |
| Contact Transmits (Typical) | Signal (Data) |
| Mating Retention | With |
| PCB Mount Retention | Without |
| Packaging Method | Tube |
| Connector Type | Header |
| Packaging Quantity | 19 |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 16 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold Flash over Palladium Nickel |
| Shrouded End Dimension | 3.76 |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole |
| Contact Base Material | Phosphor Bronze |
| Termination Post Length | 2.6 |
| Post Size | .025 |
| Length | 27.94 |
| Height | 9.19 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 1 |
| Contact Mating Area Plating Thickness | 30 |
| Connector Mounting Type | Board Mount |
| UL Flammability Rating | UL 94V-0 |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| ??? | AMP-Latch Receptacle |
| Mating Connector Lock | Without |
| Daisy Chain | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Series | AMP-LATCH |
| Body Orientation | Right Angle |
| Pitch | 2.54 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 2 |
| Termination Method | Solder |
| Number Of Contacts | 16 |
| Contact Material | Phosphor Bronze |
Inventory for the 1761607-6 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
318
|
|
Visit Site | |
|
★ Featured
|
1,038
|
|
Visit Site | |
| Arrow Electronics |
290
|
|
Visit Site | |
| Avnet America |
1,037
|
|
Visit Site | |
| Heilind Electronics |
256
|
|
Visit Site | |
| Newark |
1,037
|
|
Visit Site | |
| Onlinecomponents |
1,045
|
|
Visit Site | |
| RS Americas |
855
|
|
Visit Site | |
| Sager |
|
855 x $5.20
|
Visit Site | |
| TE Store |
318
|
|
Visit Site | |
| TTI Americas |
95
|
19 x $3.60
|
Visit Site | |
| Verical |
1,463
|
|
Visit Site |
No issues have been reported for the 1761607-6
If you experienced any issues with the symbol or footprint, please report it.
