1761633-2
IDC LOW PRO HDR 39/40P VERT 15 AU
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1761633-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

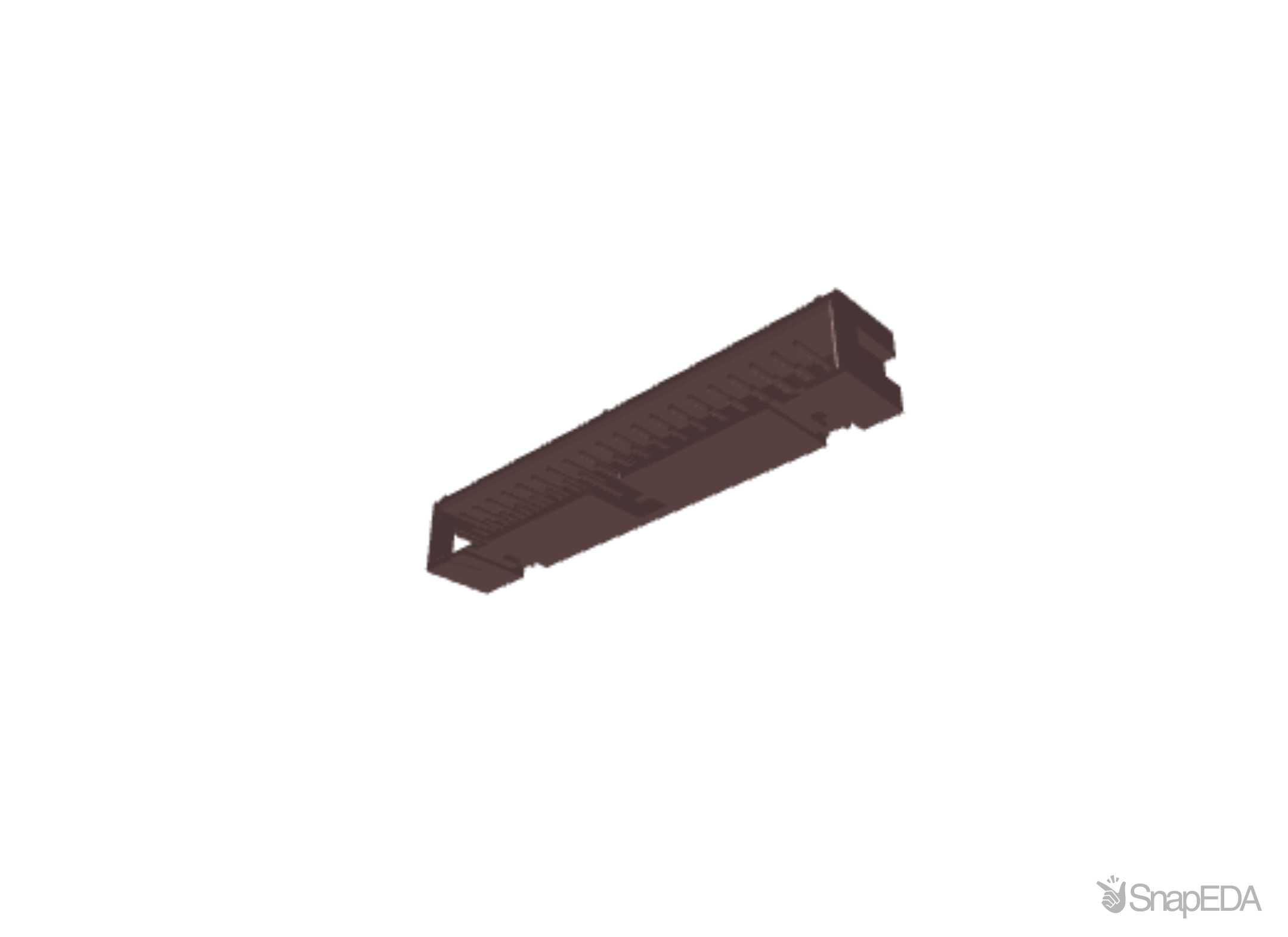

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1761633-2
| Part Name | 1761633-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Center |
| Centerline (Pitch) | 2.54 |
| Temperature Rating | High |
| Circuit Application | Signal |
| Housing Style | 4-Sided |
| Polarization | With |
| Row-to-Row Spacing | 2.54 |
| Contact Termination Area Plating Thickness | 100 |
| Ejection Latches | Without |
| Connector Style | Plug |
| Connector & Contact Terminates To | Printed Circuit Board |
| Profile | Low |
| PCB Mount Retention | Without |
| Housing Material | PBT |
| Board Standoff | Without |
| TE Internal Number | 1761633-2 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Pin Header |
| Product Type | Connector |
| Housing Entry Style | Top |
| Contact Shape | Square |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Mating Retention | With |
| Operating Temperature Range | -65 to 105 |
| Packaging Method | Tube |
| Connector Type | Header |
| Packaging Quantity | 50 |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 40 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Shrouded End Dimension | 3.81 |
| Termination Method to Printed Circuit Board | Through Hole |
| Contact Base Material | Phosphor Bronze |
| Termination Post Length | .12 |
| PCB Mount Alignment | Without |
| Post Size | .025 |
| Length | 2.3 |
| Height | .35 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 1 |
| Contact Mating Area Plating Thickness | 15 |
| Connector Mounting Type | Board Mount |
| UL Flammability Rating | UL 94V-0 |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| ??? | AMP-Latch Receptacle |
| Mating Connector Lock | Without |
| Daisy Chain | With |
