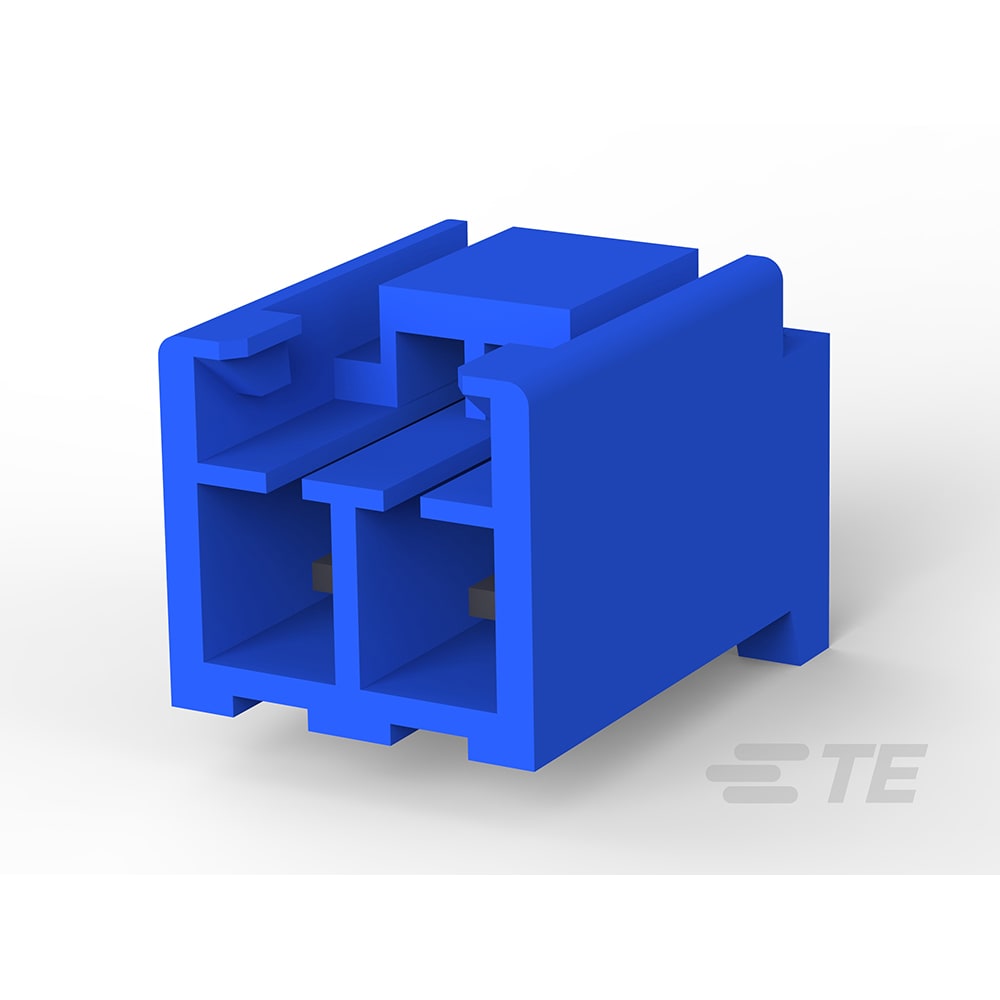

176975-6
SOLIS SP SPD22-16COM22-18MIL1797 | TE Connectivity 176975-6
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 176975-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

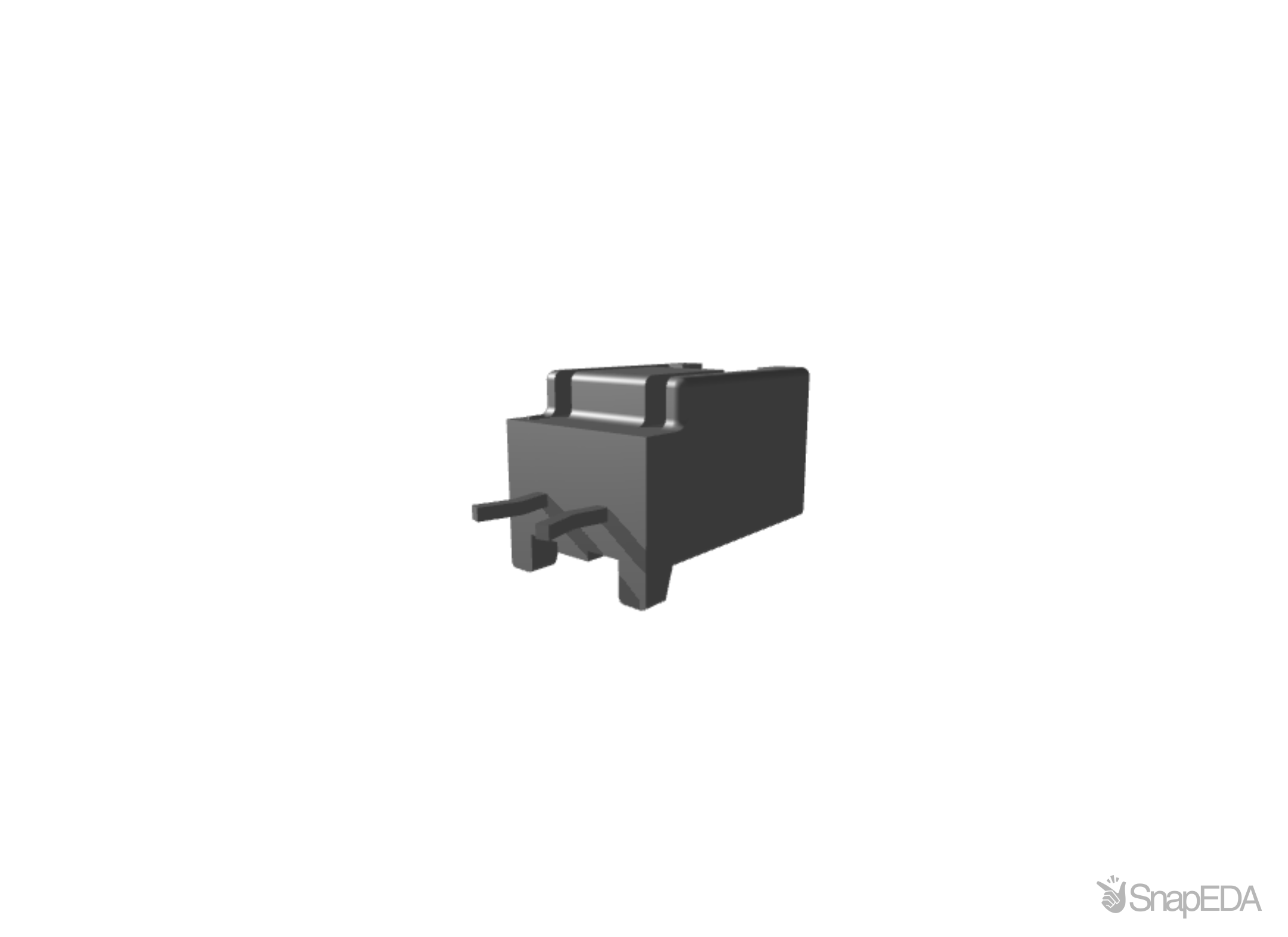

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 176975-6
| Part Name | 176975-6 |
| Manufacturer | TE Connectivity / AMP |
| Category | Connectors |
| Centerline (Pitch) | .155 |
| Circuit Application | Power |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Number of Power Positions | 2 |
| Operating Voltage (V) | 50 |
| Number of Positions | 2 |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 176975-6 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Housing Color | Blue |
| Number of Signal Positions | 0 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -30 – 105 |
| Packaging Method | Bag/Box |
| Housing Type | Plug |
| Packaging Quantity | 400 |
| Contact Termination Area Plating Material | Tin |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Housing Material | Nylon 6/6 GF |
| Product Type | Connector |
| Contact Retention | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Current Rating (Max) (A) | 7 |
| Contact Mating Area Plating Thickness | 39.37 |
| Contact Type | Tab |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
