1771059
SnapVerified

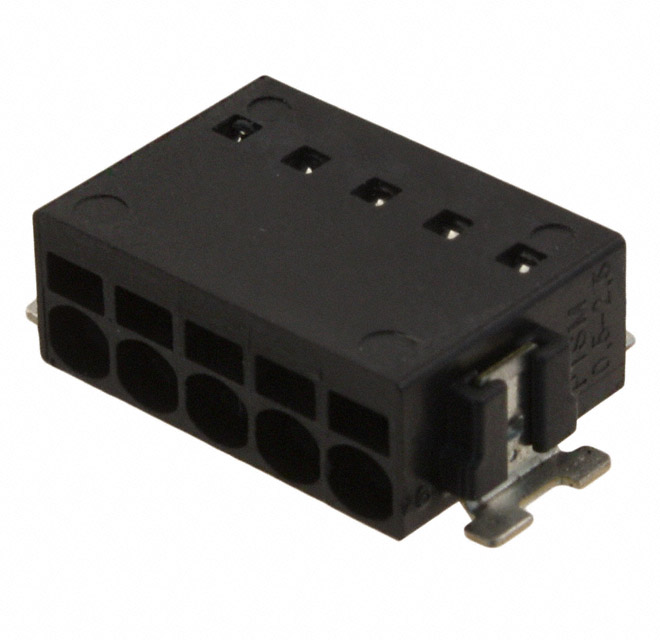

5 Position Wire to Board Terminal Block Horizontal with Board 0.098" (2.50mm) Surface Mount
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1771059 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

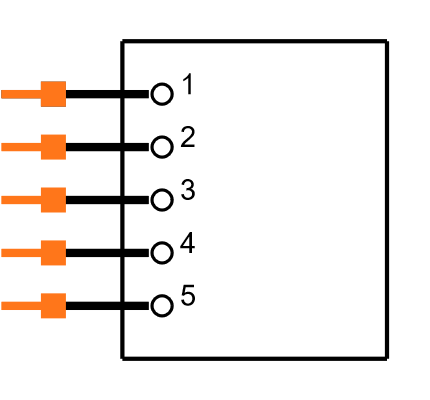

Symbol
No web preview
This Symbol is Available for

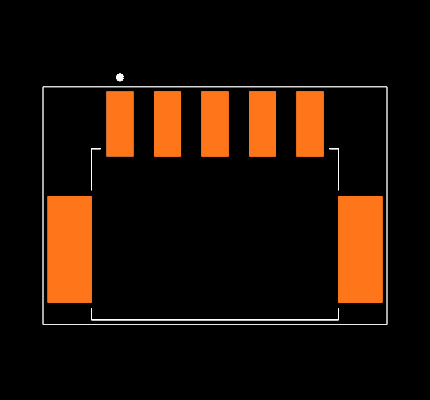

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1771059
| Part Name | 1771059 |
| Manufacturer | Phoenix Contact |
| Max. Operating Temperature | 100 |
| Max. Line Cross Section, Rigid | 0.5 |
| Width | 16.9 |
| GTIN | 4046356459709 |
| Min. Operating Temperature | -40 |
| Min. Line Cross Section, Flexible | 0.2 |
| Product Description | PCB terminal block |
| Certificate/approval | cULus Recognized, UL Recognized, VDE Zeichengenehmigung |
| Gtin (ean) Code | 4046356459709 |
| Internal Article Number | 1771059 |
| Number Of The Executions Of The Housing Parts | 0 |
| Type Of Pcb Contacting | SMD connection |
| Max. Line Cross Section, Flexible | 0.5 |
| Depth | 11 |
| Manufacturer Product Designation | PCB terminal block |
| RoHS | True |
| Assembly Type | Print mounting |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1771059 |
| Material Of Insulation | LCP |
| Net Weight | 0.00186 |
| Height | 5 |
| Min. Line Cross Section, Rigid | 0.14 |
| Application Standards | IECÂ 60998-2-2 (in parts) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pitch | 2.5 (mm) |
| Current Rating (A) | 6 (A) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 160 V |
| Gender | Male |
| Colour | Black |
| Material | Liquid Crystal Polymer |
| Depth | 5 (mm) |
| Termination Method | Spring Cage |
| Width | 9 (mm) |
| Length | 13 (mm) |
| Number Of Rows | 1 |
| Series | PTSM 0.5/ 5-2.5-H SMD R44 |
| Number Of Contacts | 5 |
| Type | PCB Terminal Block |
| Body Orientation | Horizontal |
Inventory for the 1771059 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Buerklin |
|
770 x $1.27
|
Visit Site | |
| Conrad |
12
|
|
Visit Site | |
| RS UK |
295
|
5 x $1.63
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
|
|
Visit Site |
No issues have been reported for the 1771059
