1771143
SnapVerified
1771143 Phoenix Contact PTSM 0,5/ 7-2,5-V SMD R44 PC terminal block, Nominal current: 6 A, Nom. voltage: 32 V, Pitch: 2.5 mm, Number of positions: 7, Type of connection: Spring-cage conn., Assembly: SMD/THT/THR, Conductor/PCB connection direction: 90 ?, Color: black Manufacturer Part # 1771143 Manufacturer: Phoenix Contact Weight: 0.0017 lbs/piece Availability: stock to 10 days (If immediate availability is time sensitive, please contact customer service at 1-866-388-7558) Pack Qty: 400 (Items must be purchased in multiples of the Pack Qty) Special Notes:
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1771143 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

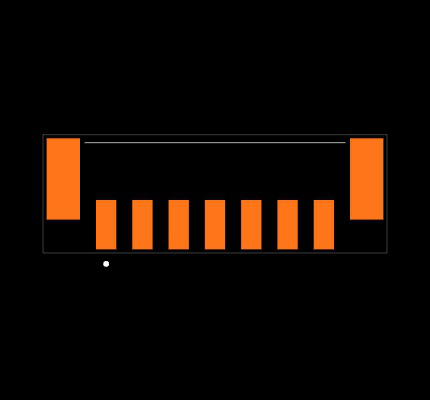

Footprint
No web preview
This Footprint is Available for

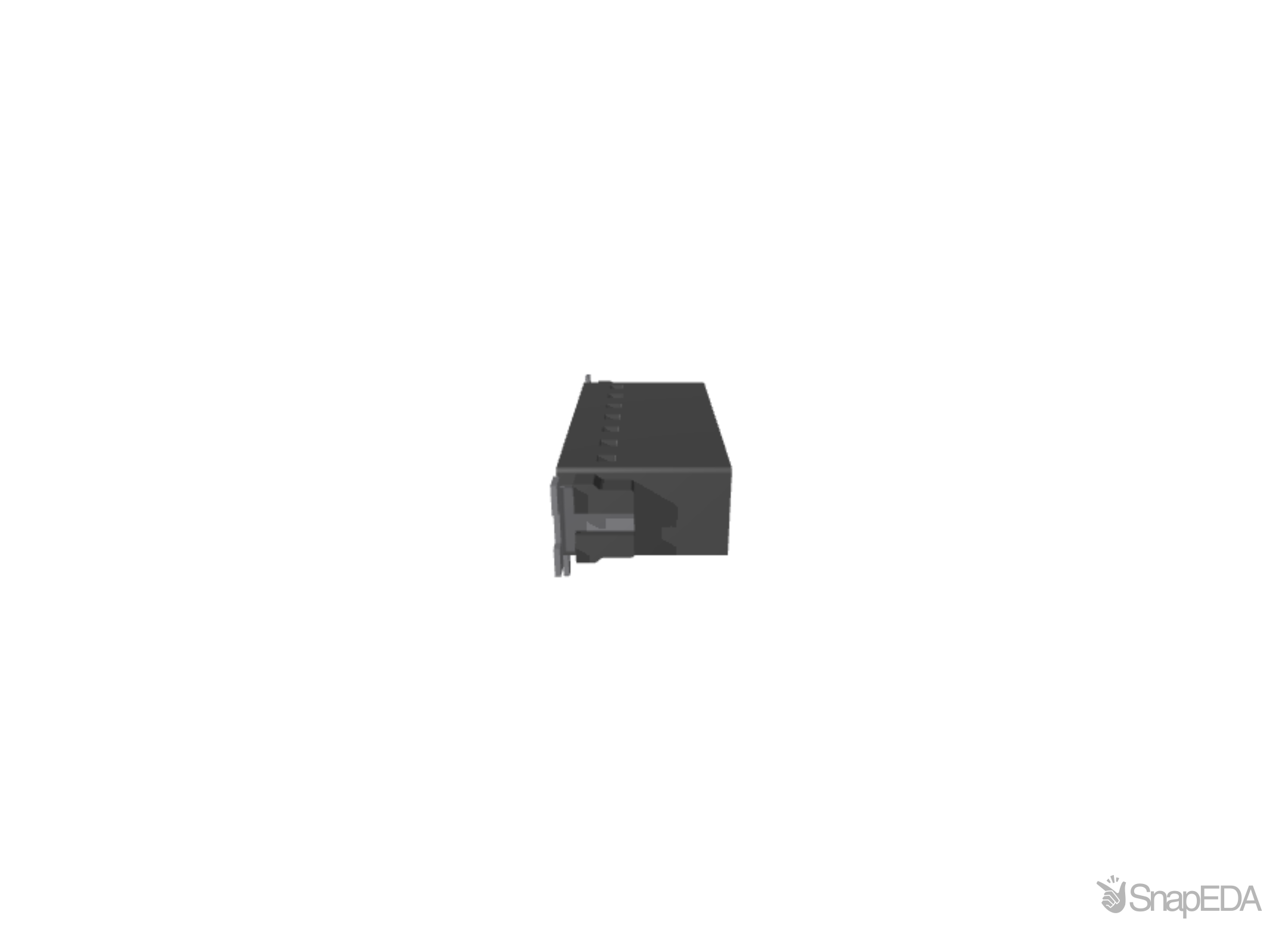

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1771143
| Part Name | 1771143 |
| Manufacturer | Phoenix Contact |
| Max. Operating Temperature | 100 |
| Max. Line Cross Section, Rigid | 0.5 |
| Width | 22.6 |
| GTIN | 4046356460477 |
| Min. Operating Temperature | -40 |
| Min. Line Cross Section, Flexible | 0.2 |
| Product Description | PCB terminal block |
| Certificate/approval | cULus Recognized, UL Recognized, VDE Zeichengenehmigung |
| Gtin (ean) Code | 4046356460477 |
| Internal Article Number | 1771143 |
| Number Of The Executions Of The Housing Parts | 0 |
| Type Of Pcb Contacting | SMD connection |
| Max. Line Cross Section, Flexible | 0.5 |
| Depth | 7 |
| Manufacturer Product Designation | PCB terminal block |
| RoHS | True |
| Assembly Type | Print mounting |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1771143 |
| Material Of Insulation | LCP |
| Net Weight | 0.0018 |
| Height | 9 |
| Min. Line Cross Section, Rigid | 0.14 |
| Application Standards | IECÂ 60998-2-2 (in parts) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | PTSM 0.5/ 7-2.5-V-SMD R44 |
| Current Rating (A) | 6 (A) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 160 V |
| Gender | Male |
| Colour | Black |
| Material | Liquid Crystal Polymer |
| Termination Method | Spring Cage |
| Width | 5 (mm) |
| Depth | 9 (mm) |
| Number Of Rows | 1 |
| Length | 18 (mm) |
| Pitch | 2.5 (mm) |
| Number Of Contacts | 7 |
| Type | PCB Terminal Block |
| Body Orientation | Straight |
