1775014-2
24 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1775014-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

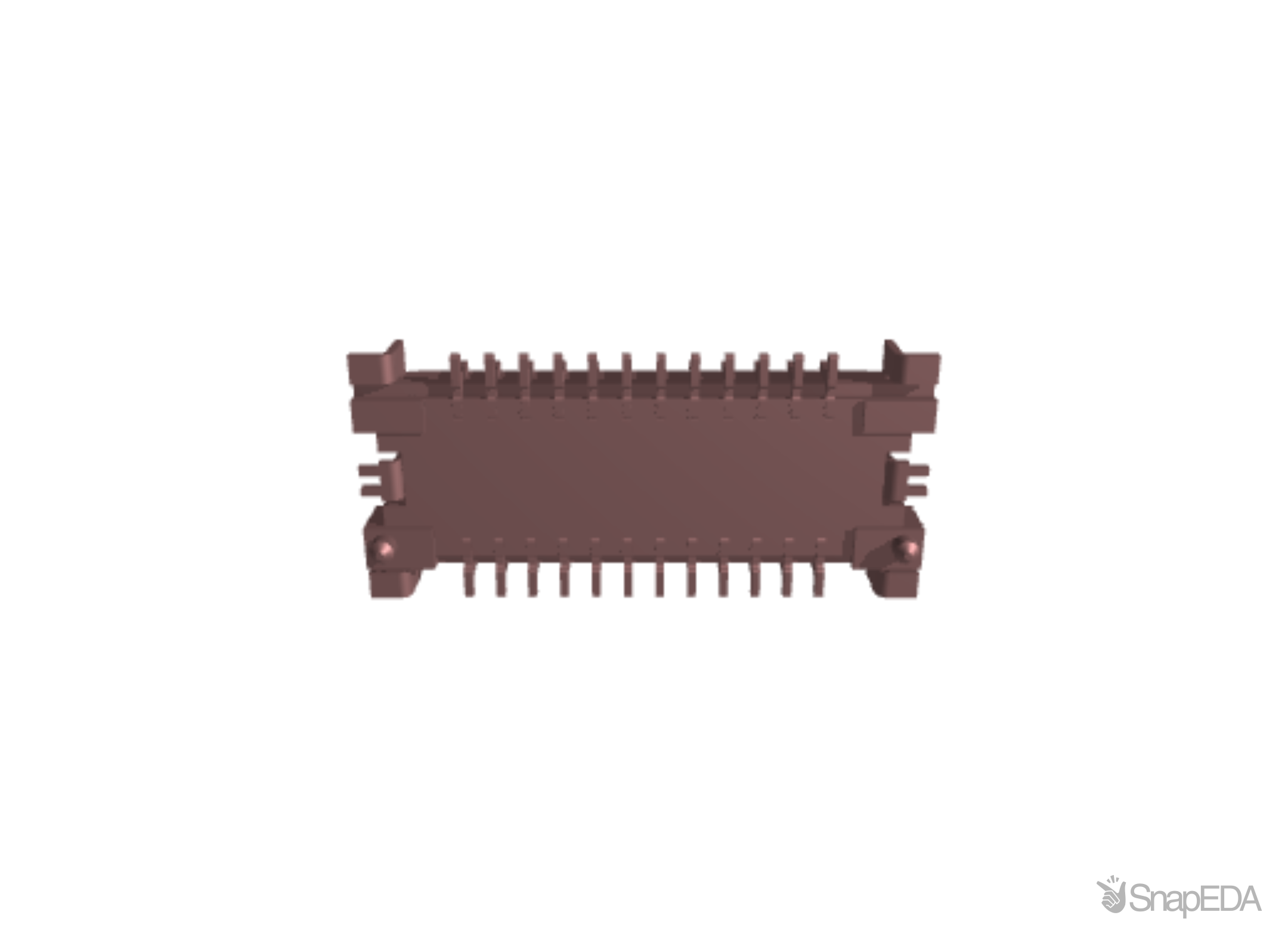

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1775014-2
| Part Name | 1775014-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarized |
| Centerline (Pitch) | .031 |
| Circuit Application | Signal |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Nylon 6T |
| Insulation Resistance | 2 |
| Operating Voltage (V) | 50 |
| PCB Mount Alignment Type | Locating Posts |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | None |
| PCB Mount Retention | Without |
| Contact Current Rating (Max) (A) | .5 |
| TE Internal Number | 1775014-2 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Connector Height | .09432 |
| Number of Rows | 2 |
| Housing Color | Natural |
| Header Type | Standard |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | 2.54 |
| Dielectric Withstanding Voltage (Max) (V) | 500 |
| Assembly Process Feature | Pick and Place Cover |
| Operating Temperature Range | -25 – 85 |
| High Temperature Compatible | Yes |
| Packaging Method | Tape & Reel |
| Packaging Quantity | 1500 |
| Contact Layout | Inline |
| Number of Positions | 24 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold Flash |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Termination Method to Printed Circuit Board | Surface Mount |
| Contact Base Material | Phosphor Bronze |
| PCB Contact Termination Area Plating Material | Gold Flash |
| Cover Material | Mylar |
| PCB Mount Alignment | With |
| Stack Height | 3 |
| PCB マウント アラインメント タイプ | Locating Posts |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Profile | Low |
| Contact Type | Tab |
| Stackable | Yes |
| Board-to-Board Configuration | Mezzanine |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the 1775014-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| TE Connectivity |
5,541
|
|
Visit Site |
No issues have been reported for the 1775014-2
If you experienced any issues with this part, please report it.
