177537-2
Connector Header Through Hole 2 position 0.098" (2.50mm)
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 177537-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

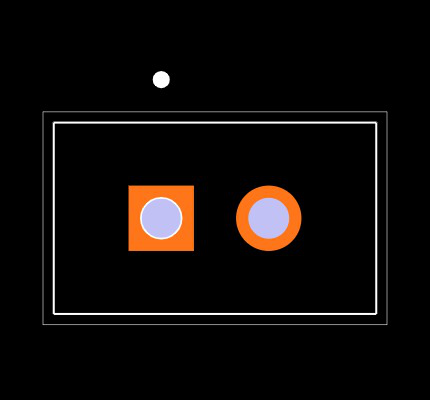

Footprint
No web preview
This Footprint is Available for

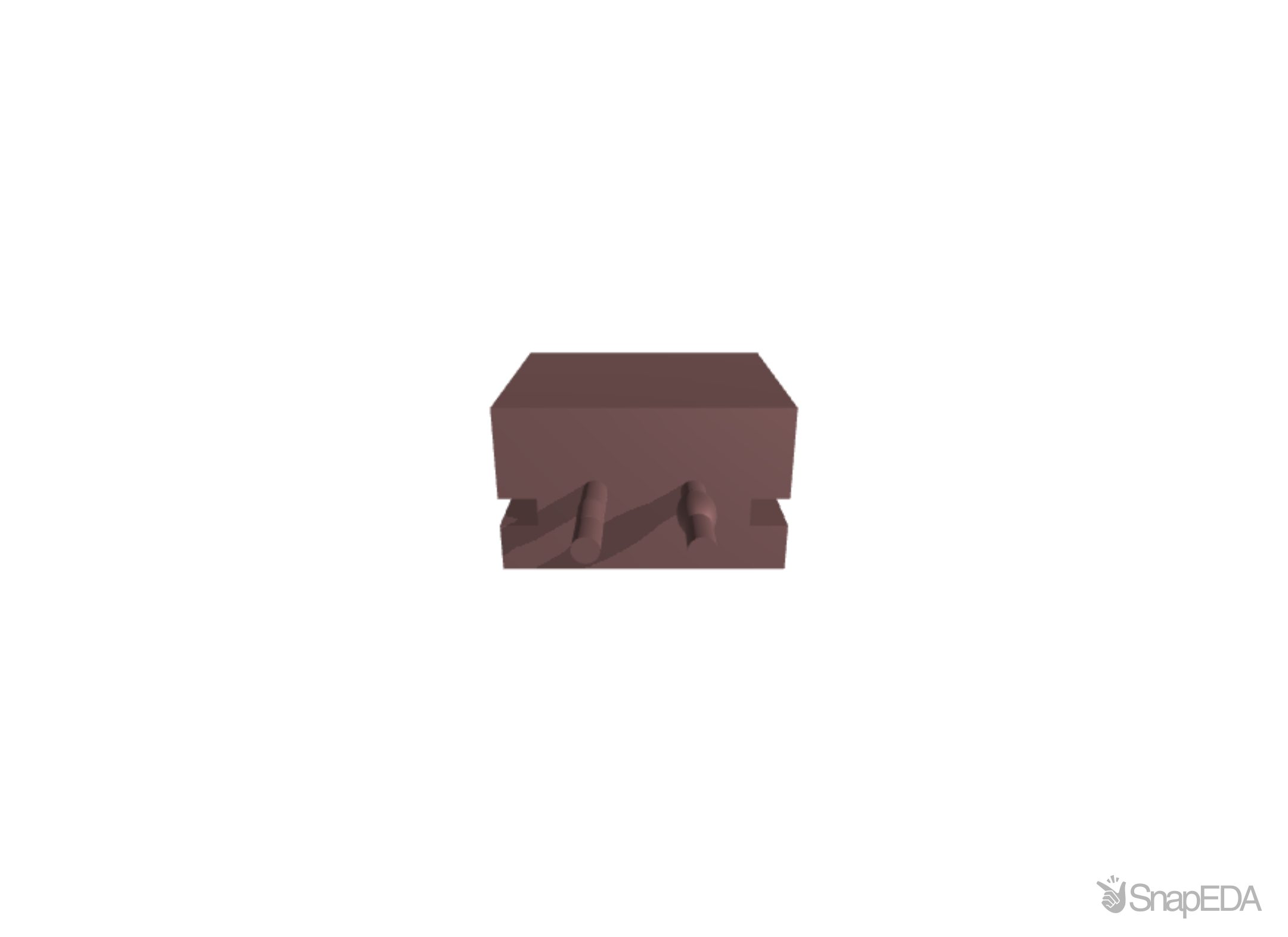

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 177537-2
| Part Name | 177537-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2.5 |
| Mating Retention Type | Polarized Lock |
| Housing Material | 66 Nylon |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 250 |
| Number of Positions | 2 |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1 – 1.6 |
| Termination Post & Tail Length | 3.17 |
| PCB Connector Assembly Type | PCB Mount Header |
| Mating Post Length | .134 |
| TE Internal Number | 177537-2 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | 6.48 |
| Number of Rows | 1 |
| Housing Color | Natural |
| Header Type | Partially Shrouded |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Shape | Rounded |
| Contact Transmits (Typical) | Signal (Data) |
| Mating Retention | With |
| Connector Length | .295 |
| Operating Temperature Range | -25 – 105 |
| Strain Relief | Without |
| Packaging Method | Loose Piece |
| Packaging Quantity | 1000 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Pre-Tin |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Brass |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 4 |
| Contact Retention | Without |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Pre-Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
