1775838-2
CONN PCI EXP MIN FML 52POS 0.031 / 52 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm) Black
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1775838-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

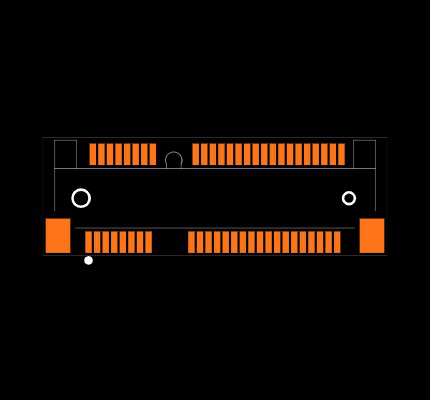

Footprint
No web preview
This Footprint is Available for

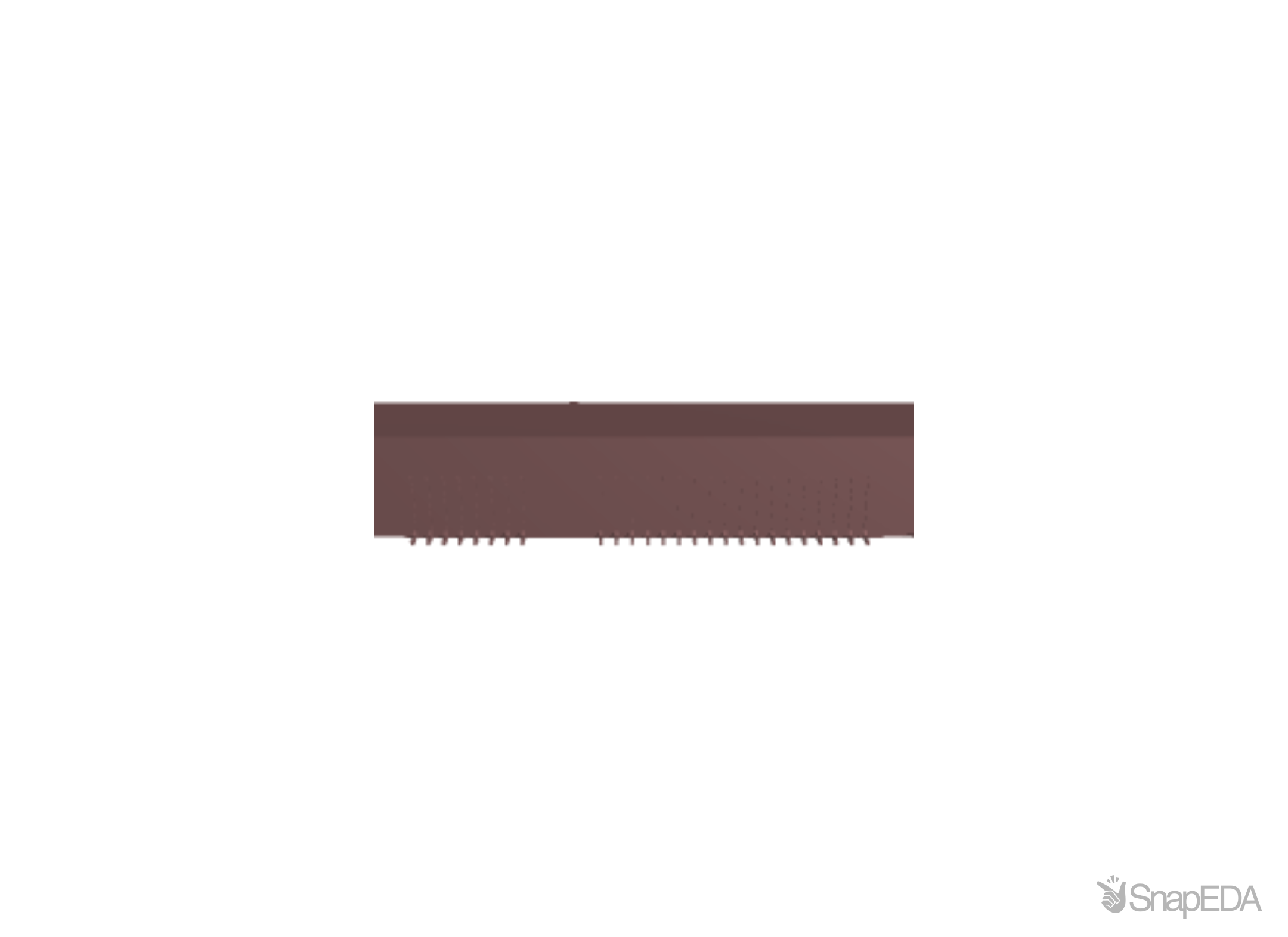

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1775838-2
| Part Name | 1775838-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .8 |
| Circuit Application | Signal |
| TE Internal Number | 1775838-2 |
| Termination Method to Printed Circuit Board | Surface Mount |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 52 |
| PCB Mount Retention | Without |
| Ejector Location | None |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Number of Rows | 2 |
| Housing Color | Black |
| Bus Type | Mini PCI Express |
| Contact Underplating Material | Nickel |
| Contact Base Material | Copper Alloy |
| Number of Keys | 1 |
| Operating Temperature Range | -67 – 185 |
| Insertion Style | Cam-In |
| Packaging Method | Tape & Reel |
| Packaging Quantity | 500 |
| Stackable | No |
| Height Above PC Board | .22 |
| DRAM Type | Standard |
| Contact Mating Area Plating Material | Gold Flash |
| RoHS | True |
| Housing Material | Thermoplastic |
| 端子の下地めっきの材料 | Nickel |
| Module Orientation | Right Angle |
| High Temperature Housing | Yes |
| Stack Height | .22 |
| Row-to-Row Spacing | .8 |
| Contact Current Rating (Max) (A) | .5 |
| DRAM Voltage (V) | 1.5 |
| UL Flammability Rating | UL 94V-0 |
| PCB Contact Termination Area Plating Material | Gold Flash |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Housing Material | Thermoplastic |
| Current Rating (A) | 5 (A) |
| Contact Plating | Gold, Nickel |
| Mounting Type | Surface Mount |
| Card Type | Card Edge |
| Gender | Female |
| Body Orientation | Right Angle |
| Pitch | 0.8 (mm) |
| Length | 29.9 (mm) |
| Termination Method | Solder |
| Voltage Rating (V) | 1.5 (DRAM) V |
| Width | 5.6 (mm) |
| Depth | 6.41 (mm) |
| Number Of Rows | 2 |
| Series Number | 1775838 |
| Minimum Operating Temperature | -55 (°C) |
| Series | Mini PCI Express |
| Number Of Contacts | 52 |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Copper Alloy |
Inventory for the 1775838-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
24,500
|
|
Visit Site | |
| Boersig GmbH |
|
1 x $0.56
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Compona AG |
|
6,000 x $0.41
|
Visit Site | |
| Farnell UK |
581
|
|
Visit Site | |
| Heilind Americas |
1,875
|
|
Visit Site | |
| Interstate Connecting Components |
625
|
|
Visit Site | |
| Newark |
581
|
|
Visit Site | |
| Powell Electronics |
18
|
|
Visit Site | |
| Sager |
|
6,000 x $0.56
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| element14 Singapore |
581
|
|
Visit Site |
No issues have been reported for the 1775838-2
If you experienced any issues with the symbol or footprint, please report it.
