1776112-4
Buchanan Series 4 Position AWG 16-28 Black PCB Through Hole Terminal Block
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1776112-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

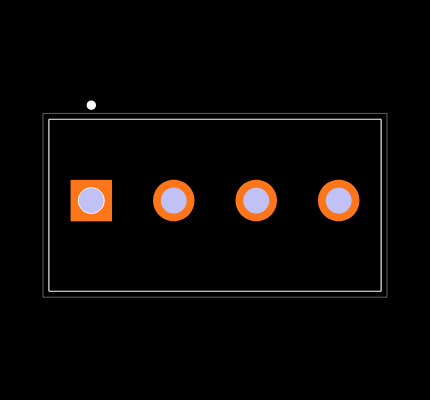

Footprint
No web preview
This Footprint is Available for

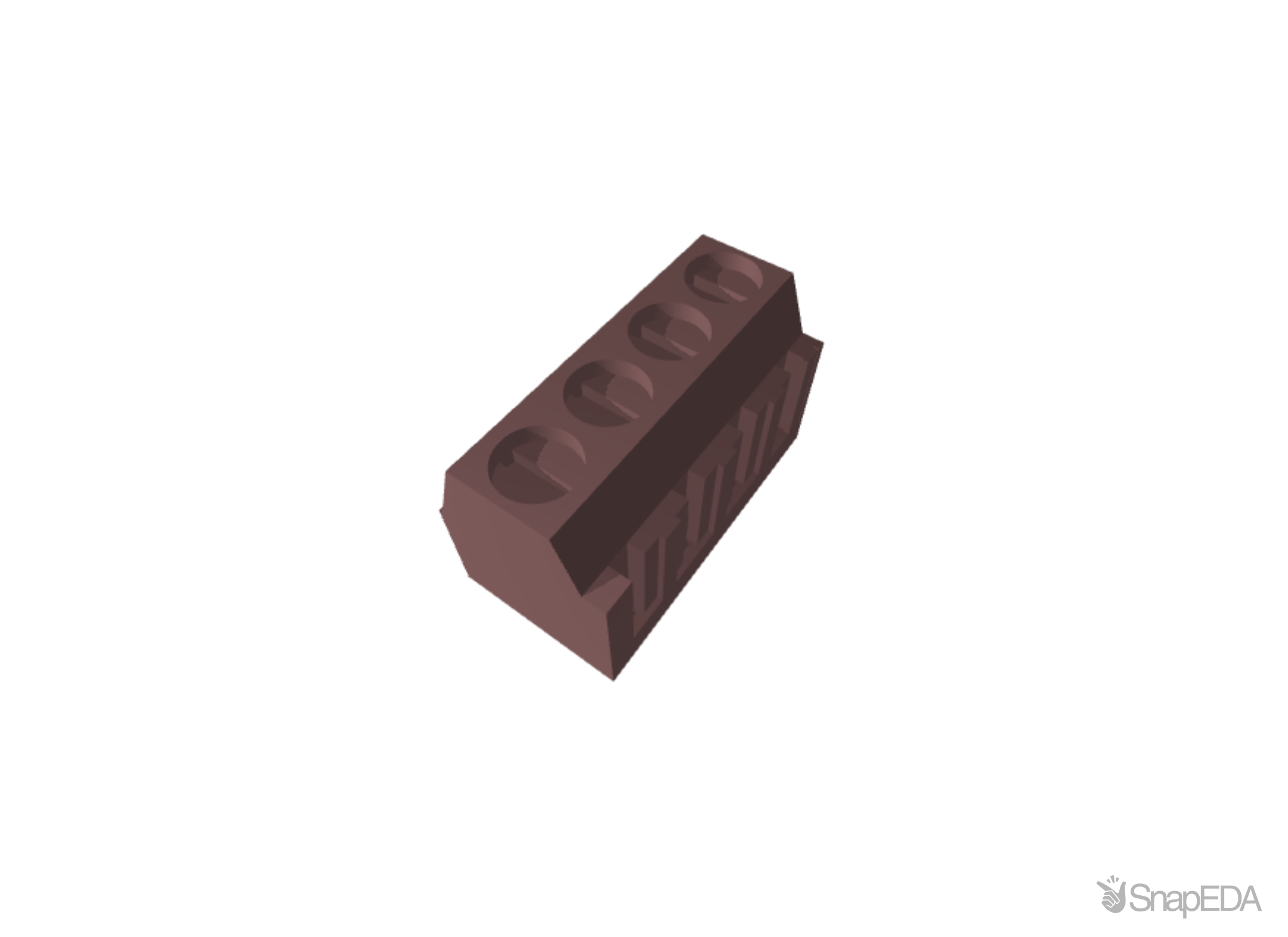

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1776112-4
| Part Name | 1776112-4 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .138 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Plating Material | Nickel |
| Screw Flange | Without |
| Screw Size | M2 |
| Contact Mount | Through Hole |
| Connector Style | Header |
| Number of Positions | 4 |
| Stacking Configuration | Side Stackable |
| Current Rating (Max) (A) | 12 |
| Screw Material | Copper Alloy |
| TE Internal Number | 1776112-4 |
| PCB Tail Length | .102 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Black |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 to 105 |
| Packaging Quantity | 150 |
| Stacked Levels | Without |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mounting Angle | Vertical |
| Interlock | Without |
| Wire Entry Angle | Side |
| Contact Current Rating (Max) (A) | 12 |
| Block Type | PCB Mount |
| Voltage (V) | 150 |
| Wire Size | .08 1.4 |
| Closed End | Without |
| Wire Protection | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
