1776275-3
Wire-To-Board Terminal Block, 3, 250 V, 7 A, 22 Awg, 14 Awg, 2 Mm
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1776275-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

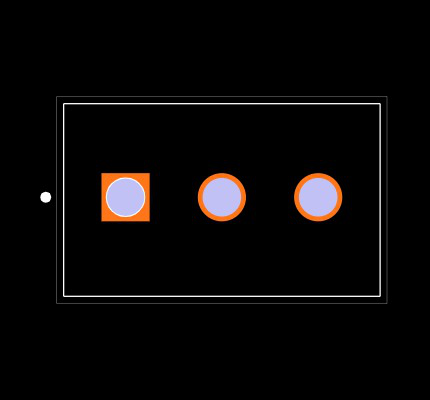

Footprint
No web preview
This Footprint is Available for

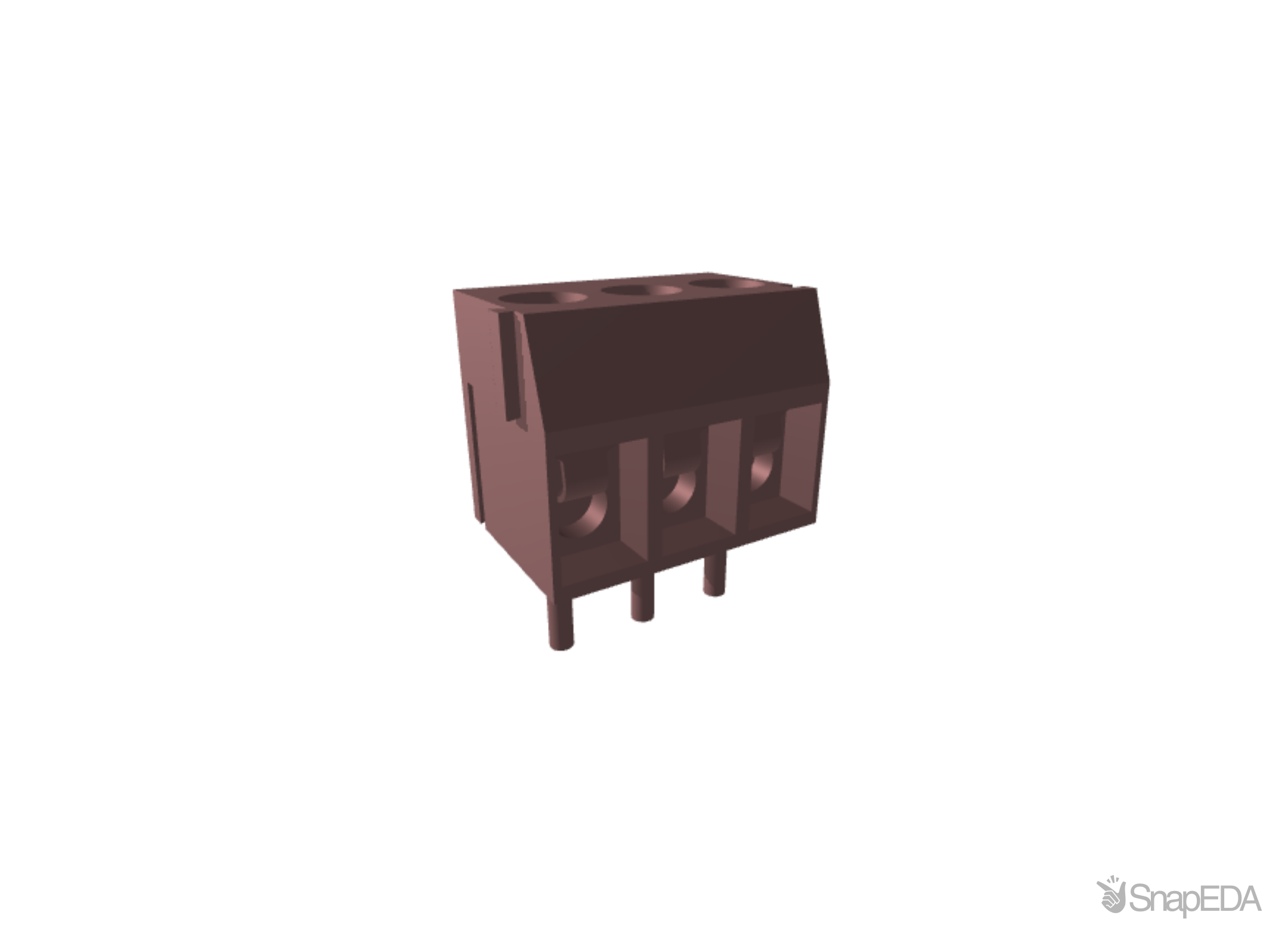

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1776275-3
| Part Name | 1776275-3 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 3.5 |
| Circuit Application | Signal |
| Housing Material | PA 66 |
| Screw Flange | Without |
| Wire Entry Angle | Side |
| Contact Mount | Through Hole |
| Connector Style | Header |
| Number of Positions | 3 |
| Current Rating (Max) (A) | 7 |
| Screw Material | Steel |
| TE Internal Number | 1776275-3 |
| PCB Tail Length | 4.2 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Blue |
| Header Type | Header Only |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 to 105 |
| Packaging Quantity | 800 |
| Stacked Levels | Without |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mounting Angle | Vertical |
| Threaded Flange | Without |
| Interlock | With |
| Contact Current Rating (Max) (A) | 7 |
| Block Type | PCB Mount |
| Voltage (V) | 250 |
| Wire Size | .12 .9 |
| Closed End | Without |
| Wire Protection | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1776275-3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,913
|
|
Visit Site | |
|
★ Featured
|
2,730
|
|
Visit Site | |
| Arrow Electronics |
1,603
|
|
Visit Site | |
| Onlinecomponents |
7,404
|
|
Visit Site | |
| Verical |
2,837
|
4 x $0.51
|
Visit Site |
No issues have been reported for the 1776275-3
