1776293-8

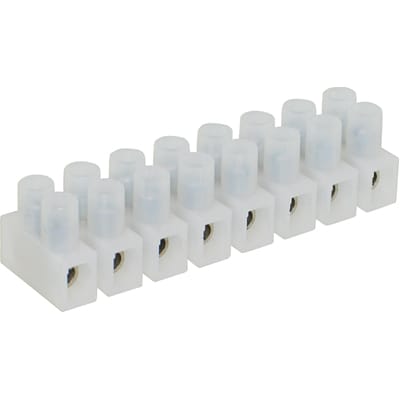

Terminal Block with Wire Protector 30A 250V 8mm (.315) Pitch 26-12AWG 8 Position | TE Connectivity 1776293-8
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1776293-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

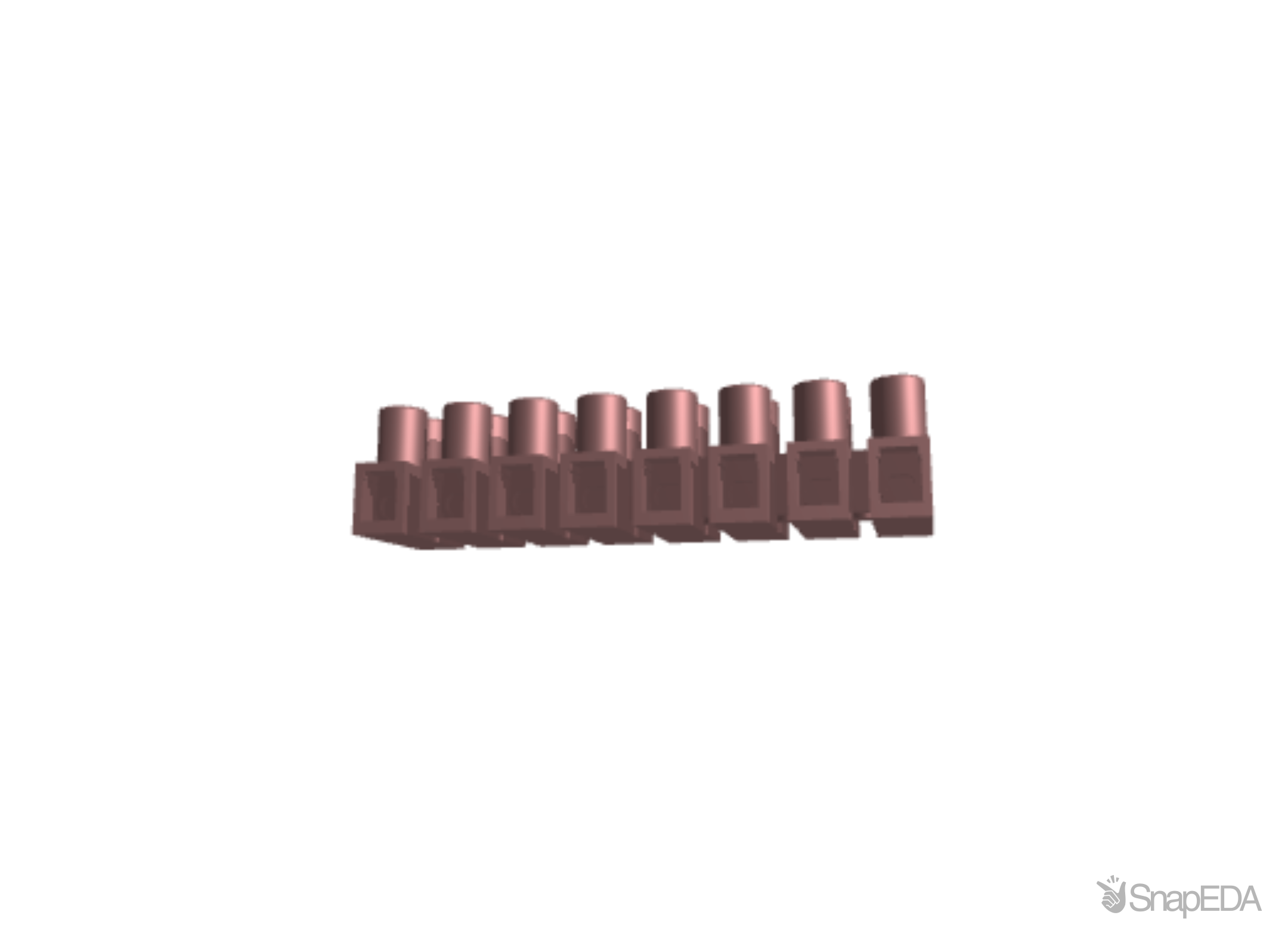

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1776293-8
| Part Name | 1776293-8 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 8 |
| Housing Material | Polyamide 6 |
| Screw Plating Material | Zinc Chromate |
| Mounting Insert | Without |
| Screw Size | M3 |
| Current Rating (A) | 30 |
| Number of Positions | 8 |
| Current Rating (Max) (A) | 30 |
| TE Internal Number | 1776293-8 |
| Number of Rows | 1 |
| RoHS | True |
| Product Type | Barrier Strip |
| Connector Mounting Type | Panel |
| Terminal Material | Brass |
| Packaging Method | Package |
| Packaging Quantity | 50 |
| Screw Plating Finish | Bright |
| Number of Levels | 1 |
| Color | Natural |
| Mounting Ears | Without |
| UL Flammability Rating | UL 94V-2 |
| Screw Material | Steel |
| Terminal Plating Material | Tin |
| Wire Size | .12 – 3.3 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
