1778793
SnapVerified

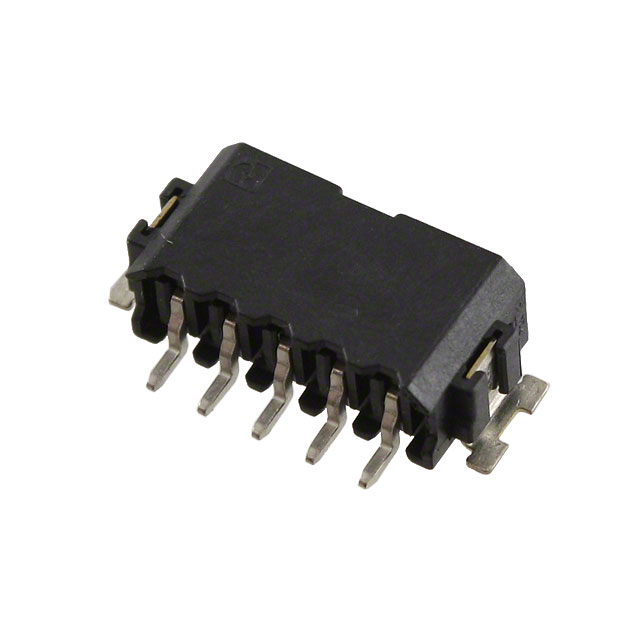

5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) 90°, Right Angle - Surface Mount
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1778793 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

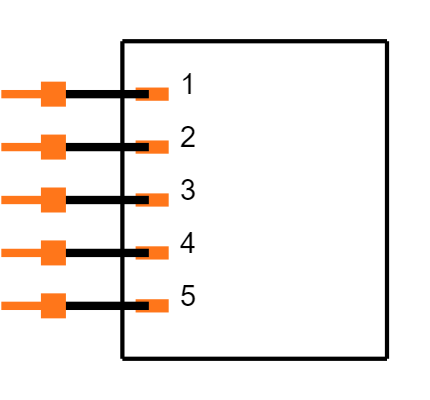

Symbol
No web preview
This Symbol is Available for

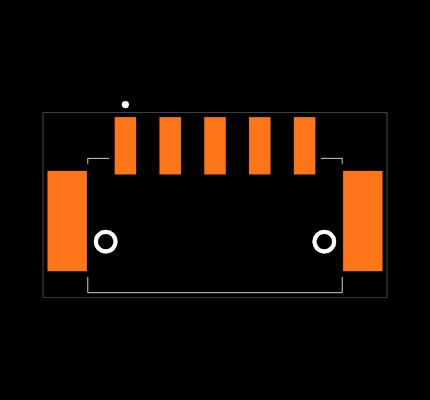

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1778793
| Part Name | 1778793 |
| Manufacturer | Phoenix Contact |
| Assembly Type | SMD soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Assembly | plugged-in |
| Product Article Number Of Manufacturer | 1778793 |
| Type Of Pcb Contacting | SMD connection |
| Width | 18.1 |
| Product Description | PCB header |
| Pole Number | 5 |
| Certificate/approval | cULus Recognized, UL Recognized, VDE Zeichengenehmigung |
| Height | 5 |
| Material Of Insulation | LCP |
| Depth | 9.5 |
| Gtin (ean) Code | 4046356530002 |
| GTIN | 4046356530002 |
| Rated Current (A) | 6 |
| Manufacturer Product Designation | PCB header |
| Design Of Electrical Connection | SMD soldering |
| Internal Article Number | 1778793 |
| Application Standards | IEC 61984 |
| RoHS | True |
| Color Of Housing | black |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1778793 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,198
|
|
Visit Site | |
|
★ Featured
|
825
|
|
Visit Site | |
| Buerklin |
|
600 x $1.71
|
Visit Site | |
| Conrad |
5
|
|
Visit Site | |
| Farnell UK |
|
600 x $1.68
|
Visit Site | |
| Onlinecomponents |
76
|
|
Visit Site | |
| RS Americas |
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
|
|
Visit Site | |
| TTI Americas |
|
600 x $1.30
|
Visit Site | |
| Verical |
70
|
40 x $1.83
|
Visit Site |
No issues have been reported for the 1778793
If you experienced any issues with the symbol or footprint, please report it.
