178306-2
Dynamic 3000,Header, Horizontal, 12 -Way, 2 row TAB 3.81mm D-3 | TE Connectivity 178306-2
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 178306-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

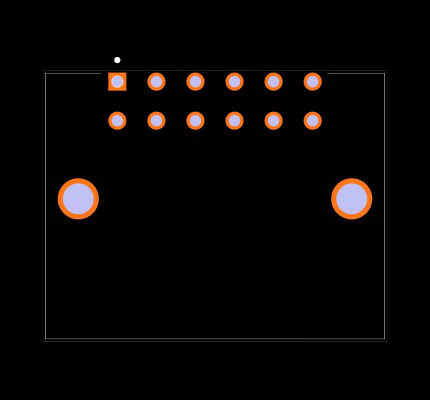

Footprint
No web preview
This Footprint is Available for

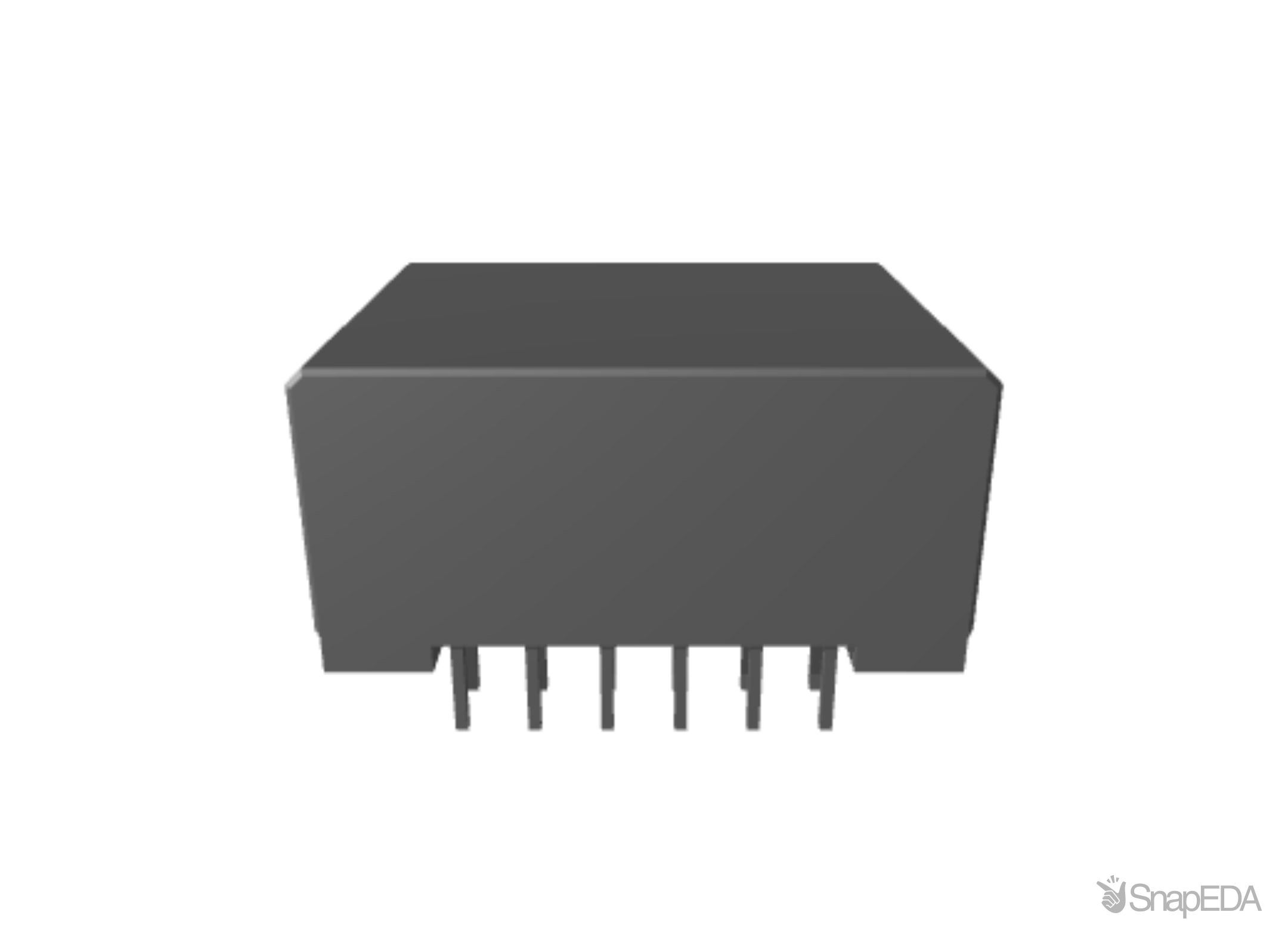

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 178306-2
| Part Name | 178306-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .149 |
| Tail Plating Thickness | 78.74 |
| Circuit Application | Power & Signal |
| Contact Style | Right Angle |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Polyester GF |
| Width | 1.02 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 250 |
| Insertion Force | Standard |
| For Use With | Receptacle Housing |
| Connector Style | Plug |
| UL Rating | Recognized |
| Number of Positions | 12 |
| PCB Mount Retention Type | Retention Leg |
| PCB Mount Retention | With |
| Contact Layout | Matrix |
| VDE Tested | No |
| UL Voltage Rating (V) | 250 |
| CSA File Number | LR7189 |
| ???? | Black |
| Contact Plating Material | Gold |
| TE Internal Number | 178306-2 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Tail Plating Material | Tin |
| Header Type | Shrouded |
| Product Type | Connector |
| Multiple Contact Types | Without |
| Contact Transmits (Typical) | Signal (Data) |
| Mating Retention | With |
| UL File Number | E28476 |
| Operating Temperature Range | -67 to 221 |
| Shielded | No |
| Number of Rows | 2 |
| Packaging Method | Box & Tube |
| Tail Length | 3.8 |
| Packaging Quantity | 15 |
| Connector Type | Header |
| Agency/Standard | UL |
| Halogen Free | Yes |
| Length | 1.3 |
| Shunts/Shorting Bars | Without |
| Lock Type | Latch |
| CSA Rating | Certified |
| PCB Thickness (Recommended) | .063 |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Strain Relief | Without |
| Assembly Integration Feature | Without |
| PCB Mount Alignment | Without |
| Mating Retention Type | Latch |
| Height | .568 |
| Row-to-Row Spacing | 5.08 |
| Contact Current Rating (Max) (A) | 15 |
| Contact Retention | Without |
| Connector Mounting Type | Board Mount |
| Contact Type | Tab |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Preloaded | Yes |
| Sealable | No |
| Mating Alignment | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Plating | Gold |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | Dynamic 3000 |
| Body Orientation | Right Angle |
| Distrelec Product Id | 30272161 |
| Termination Method | Solder |
| Connector System | Wire to Board |
| Number Of Rows | 2 |
| Shrouded Unshrouded | Shrouded |
| Pitch | 3.81 (mm) |
| Number Of Contacts | 12 |
| Contact Material | Copper Alloy |
