178762-1
Multilock 040/070 Series 26 Way 2 Row Female Right Angle PCB Housing | TE Connectivity 178762-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 178762-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

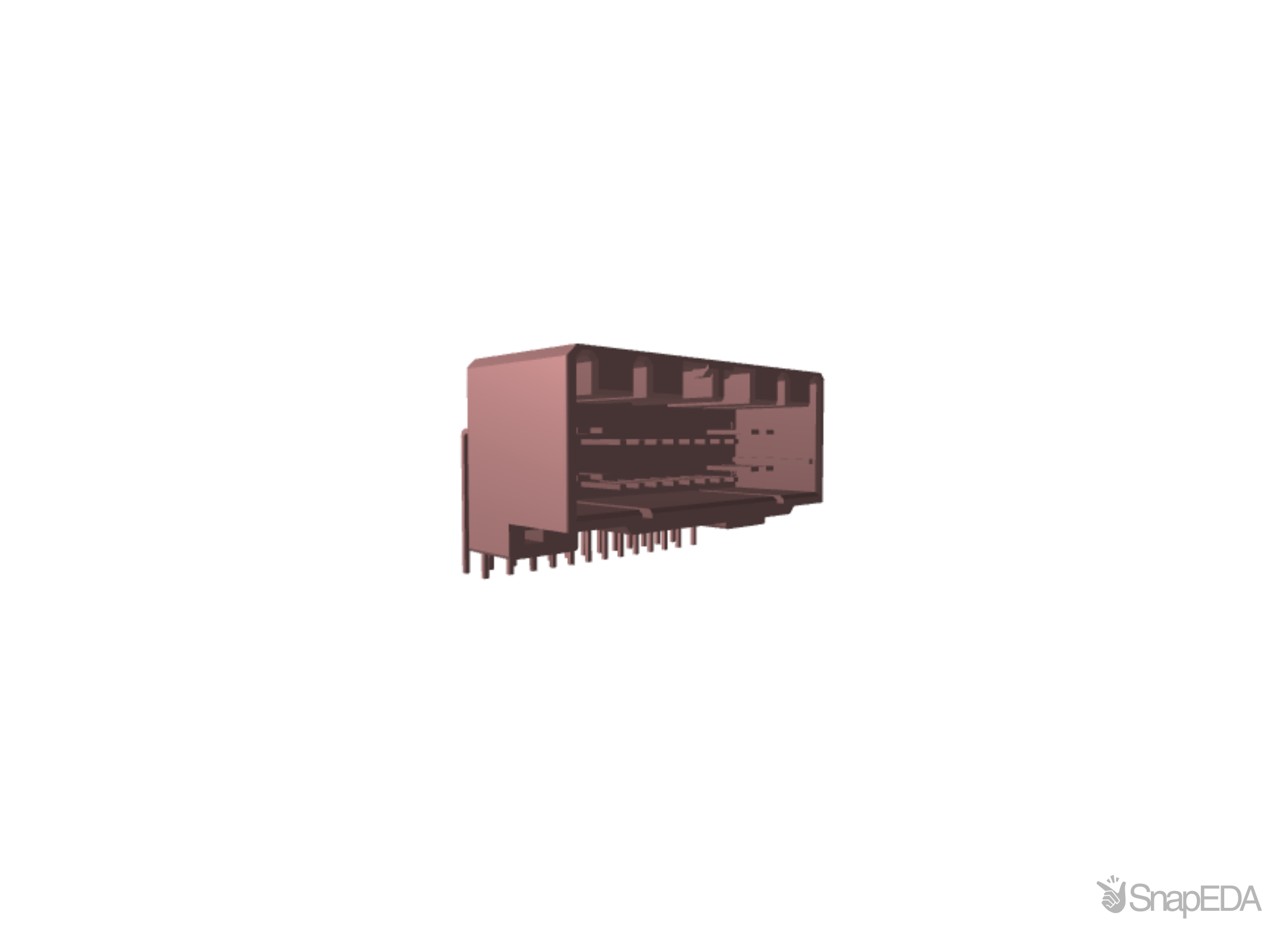

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 178762-1
| Part Name | 178762-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .138 |
| Circuit Application | Signal |
| Packaging Type | Tube |
| Width | 45.4 |
| Operating Voltage (V) | 12 |
| Number of Positions | 26 |
| PCB Mount Retention Type | Mounting Hole |
| PCB Mount Retention | With |
| Tab Thickness | .025 |
| PCB Thickness (Recommended) | 1.6 |
| Operating Temperature (Max) | 221 |
| TE Internal Number | 178762-1 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Alignment | Without |
| Number of Rows | 2 |
| RoHS | True |
| Termination Method | Through Hole - Solder |
| Number of Signal Positions | 26 |
| Sealable | No |
| Number of Sections | 1 |
| Nominal Voltage Architecture (V) | 12 |
| Mounting Orientation | Horizontal/90 |
| Operating Temperature Range | -22 to 221 |
| Shielded | No |
| Mounting Holes | With |
| Locking Interface | With |
| Packaging Quantity | 10 |
| Length | 1.0157 |
| Voltage Rating (Max) (V) | 12 |
| Tab Width | .039 |
| Color | White |
| Hybrid Header | Yes |
| Profile Height from PCB | 21.9 |
| UL Flammability Rating | UL 94-HB |
| Panel Mount Feature | Without |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Cable Mount |
| Series | MULTILOCK 040/070 |
| Body Orientation | Right Angle |
| Housing Material | PBT |
| Width | 21.9 (mm) |
| Length | 45.4 (mm) |
| Number Of Rows | 2 |
| Gender | Female |
| For Use With | Wire-to-Board Connector |
| Number Of Contacts | 26 |
Inventory for the 178762-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
5,400 x $3.89
|
Visit Site | |
|
★ Featured
|
1,540
|
75 x $4.65
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
37
|
|
Visit Site | |
| Farnell UK |
3,810
|
|
Visit Site | |
| Heilind Americas |
|
5,400 x $4.14
|
Visit Site | |
| Mouser |
|
5,400 x $3.88
|
Visit Site | |
| Newark |
4,174
|
1 x $5.04
|
Visit Site | |
| Onlinecomponents |
887
|
|
Visit Site | |
| Powell Electronics |
2,789
|
|
Visit Site | |
| RS UK |
7
|
|
Visit Site | |
| Verical |
4,170
|
|
Visit Site |
