179227-1

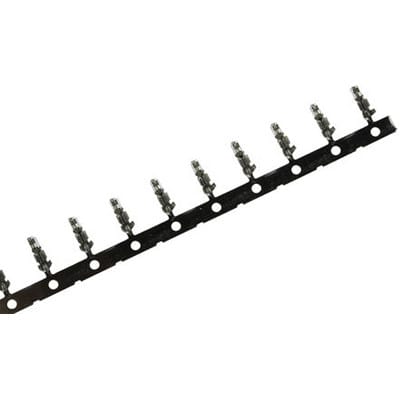

AMP CT PCB Connector Contact Female Crimp Tin Plating 26 to 22 AWG, CT Series | TE Connectivity 179227-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 179227-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 179227-1
| Part Name | 179227-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Contact Transmits (Typical) | Signal (Data) |
| Operating Temperature Range | -22 – 221 |
| Circuit Application | Signal |
| Packaging Method | Strip |
| Packaging Quantity | 10000 |
| Mating Retention | Without |
| Sealable | No |
| Wire/Cable Type | Discrete Wire |
| Operating Voltage (V) | 125 |
| Contact Mating Area Plating Material | Pre-Tin |
| Connector & Contact Terminates To | Wire & Cable |
| Wire Contact Termination Area Plating Material | Pre-Tin |
| Connector System | Wire-to-Wire |
| Product Type | Contact |
| Contact Current Rating (Max) (A) | 4 |
| TE Internal Number | 179227-1 |
| Termination Method to Wire & Cable | Crimp |
| Insulation Diameter | .93 – 1.5 |
| Wire Size | .12 – .4 |
| Contact Type | Socket |
| Insulation Resistance | 1000 |
| Internal/External | Internal |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Contact Shape | Rectangular |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
