1804687
SnapVerified
Pluggable Header 7.62mm 10AWG 630V 20A 2 Position COMBICON PCV Series | Phoenix Contact 1804687
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1804687 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

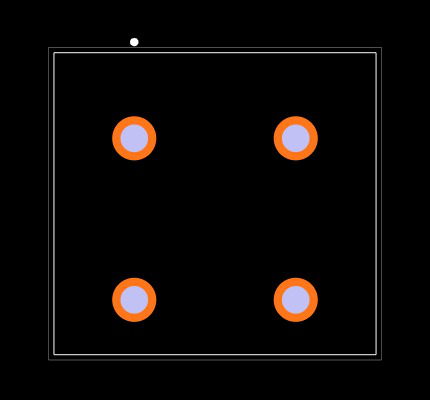

Footprint
No web preview
This Footprint is Available for

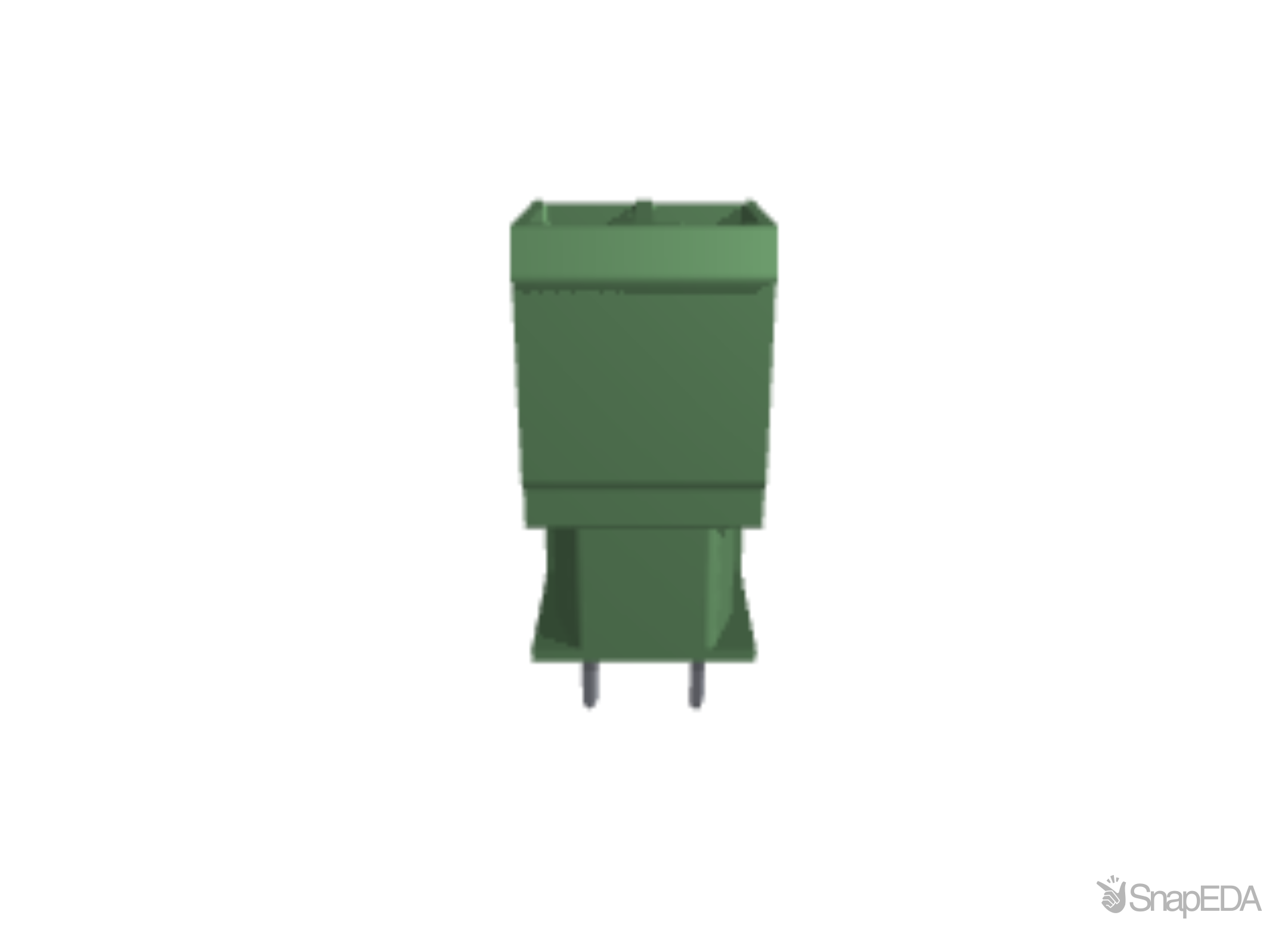

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1804687
| Part Name | 1804687 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Rated Current (A) | 20 |
| Width | 15.2 |
| GTIN | 4017918046125 |
| Type Of Interlock | without |
| Assembly | plugged-in |
| Product Description | PCB header |
| Certificate/approval | CSA, cULus Recognized, BV, DNV GL, LR |
| Gtin (ean) Code | 4017918046125 |
| Internal Article Number | 1804687 |
| Color Of Housing | green |
| Depth | 11 |
| Design Of Electrical Connection | Wave soldering |
| Manufacturer Product Designation | PCB header |
| RoHS | True |
| Material Of The Contact Coat | Sn |
| Assembly Type | Wave soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Material Of Insulation | PA |
| Product Article Number Of Manufacturer | 1804687 |
| Pole Number | 2 |
| Height | 34 |
| Application Standards | IECÂ 61984 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 20.0 (A) |
| Pluggable Terminal Block Type | Header |
| Series | PCV 4/ 2-G-7.62 |
| Body Orientation | Straight |
| Voltage Rating (V) | 630.0 V |
| Termination Method | Solder |
| Number Of Rows | 1 |
| Pitch | 7.62 (mm) |
| Number Of Contacts | 2 |
No issues have been reported for the 1804687
