18125C474KAT2A
Capacitor, 0.47, +/- 10%, 1812, No breakdown or visual defects, 2.5% (Max.) | AVX 18125C474KAT2A
Availability: In Stock
Package Type: 4532
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 18125C474KAT2A by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

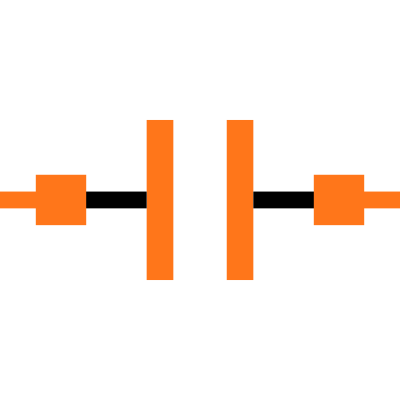

Symbol
No web preview
This Symbol is Available for

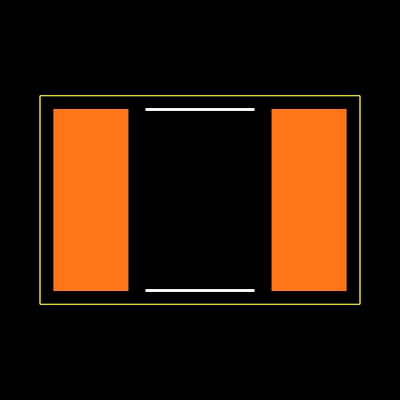

Footprint
No web preview
This Footprint is Available for

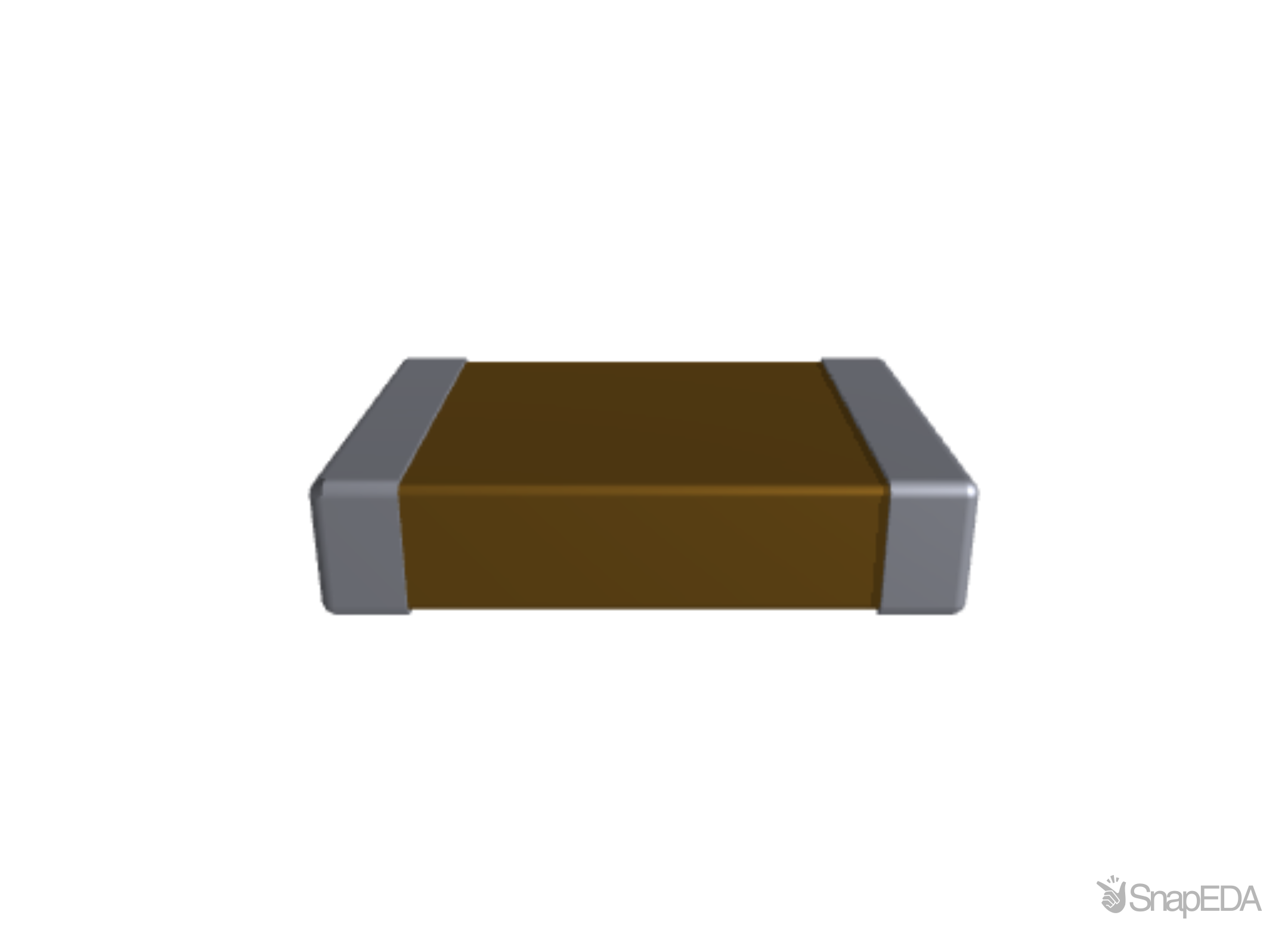

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 18125C474KAT2A
| Part Name | 18125C474KAT2A |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 4.5 x 3.2 x 1.02 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 1812 (4532M) |
| Maximum Operating Temperature | +125 (°C) |
| Depth | 3.2 (mm) |
| Height | 1.02 (mm) |
| Capacitance | 470 (nF) |
| Length | 4.5 (mm) |
| Voltage (V) | 50 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Tolerance | ±10 (%) |
| Terminal Type | Surface Mount |
| Dielectric | X7R |
Inventory for the 18125C474KAT2A by AVX from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
13,683
|
|
Visit Site | |
|
★ Featured
|
9,000
|
2,215 x $0.14
|
Visit Site | |
| Arrow Electronics |
7,000
|
|
Visit Site | |
| Farnell UK |
212
|
|
Visit Site | |
| Newark |
7,900
|
|
Visit Site | |
| RS UK |
2,760
|
|
Visit Site | |
| Rutronik |
4,000
|
|
Visit Site | |
| TME |
678
|
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| Verical |
7,000
|
1,000 x $0.18
|
Visit Site | |
| element14 Singapore |
212
|
|
Visit Site |
No issues have been reported for the 18125C474KAT2A
