Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
1812L050/30PR

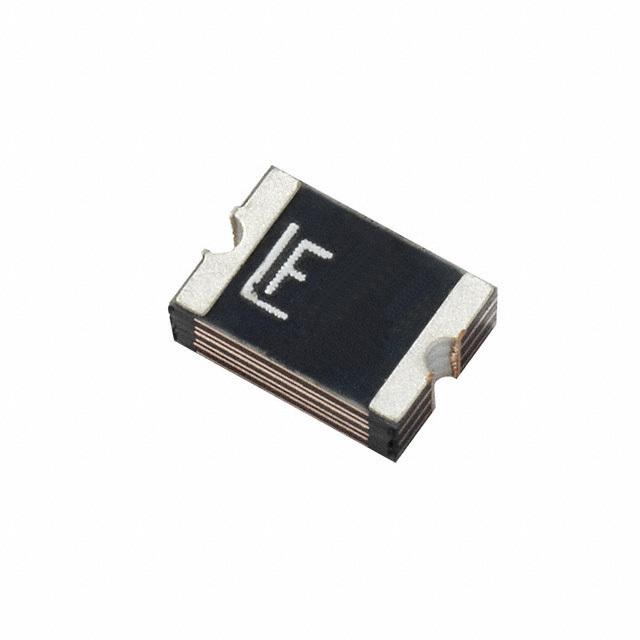

Fuse, Resettable, 1812 Series, PPTC 30V, 500mA, Surface Mount | Littelfuse 1812L050/30PR
Availability: Out of Stock
Package Type: 1812
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1812L050/30PR by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

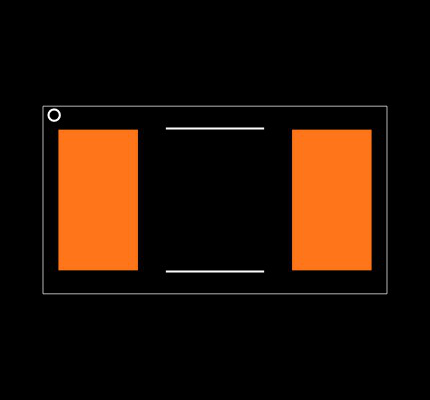

Footprint
No web preview
This Footprint is Available for

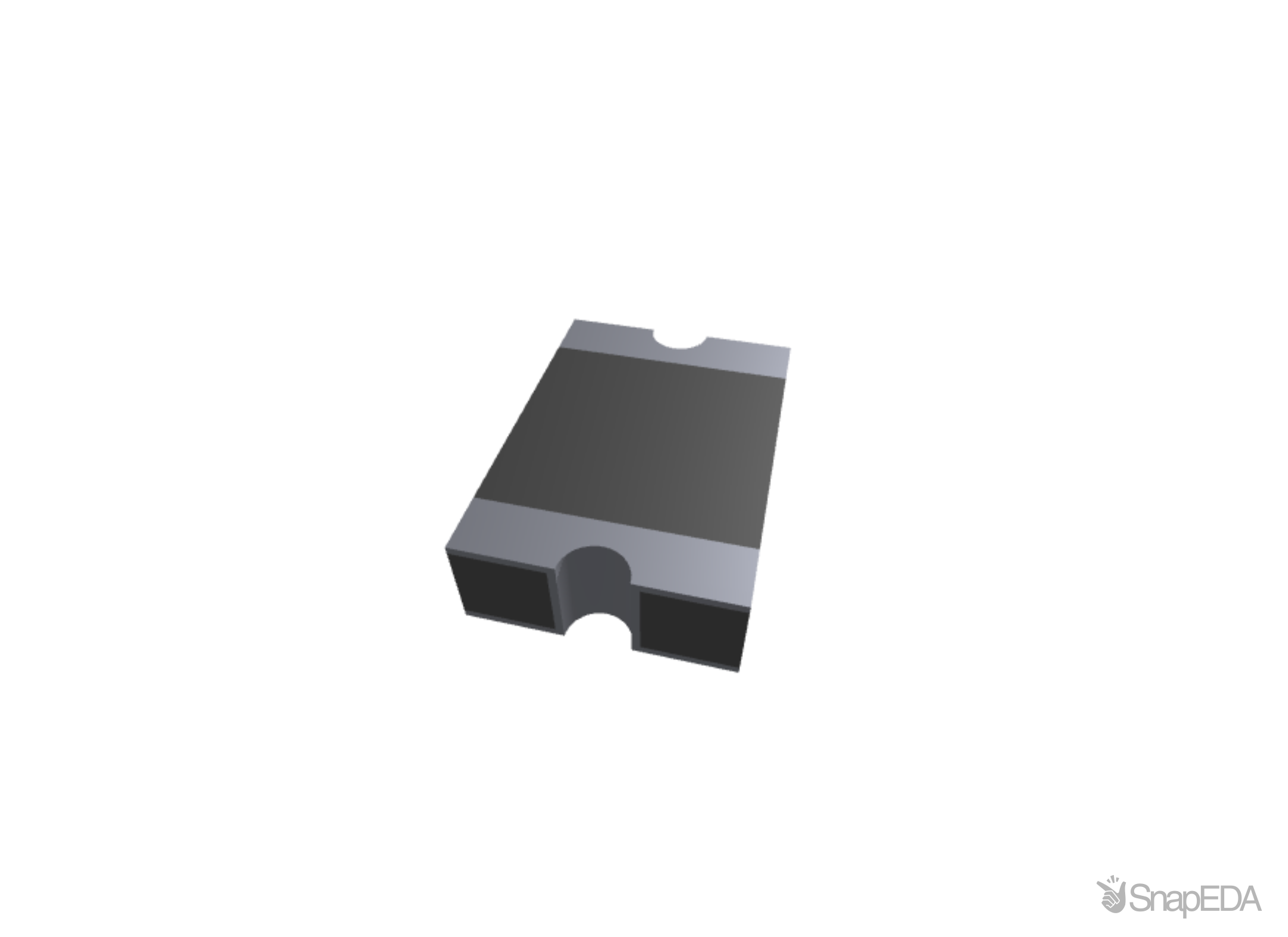

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1812L050/30PR
| Part Name | 1812L050/30PR |
| Manufacturer | Littelfuse Inc. |
| Category | Circuit Breakers, Fuses & Protection |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 0.15 (Ω) |
| Hold Current (A) | 0.5 (A) |
| Dimensions | 4.73 x 3.41 x 1 (mm) |
| Maximum Current (A) | 100 A |
| Voltage Rating (V) | 30 (V dc) |
| Series | 1812L |
| Terminal Material | Solder Plated Copper |
| Time To Trip | 0.15 (s) |
| Height | 1 (mm) |
| Trip Current (A) | 1 (A) |
| Width | 3.41 (mm) |
| Length | 4.73 (mm) |
| Power Dissipation | 0.8 (W) |
| Minimum Operating Temperature | -40 (°C) |
| Package Size | 1812 |
| Operating Temperature Range | -40 → +85 °C |
| Maximum Resistance | 1 (Ω) |
| Maximum Operating Temperature | +85 (°C) |
No issues have been reported for the 1812L050/30PR
If you experienced any issues with the symbol or footprint, please report it.
