182206-2

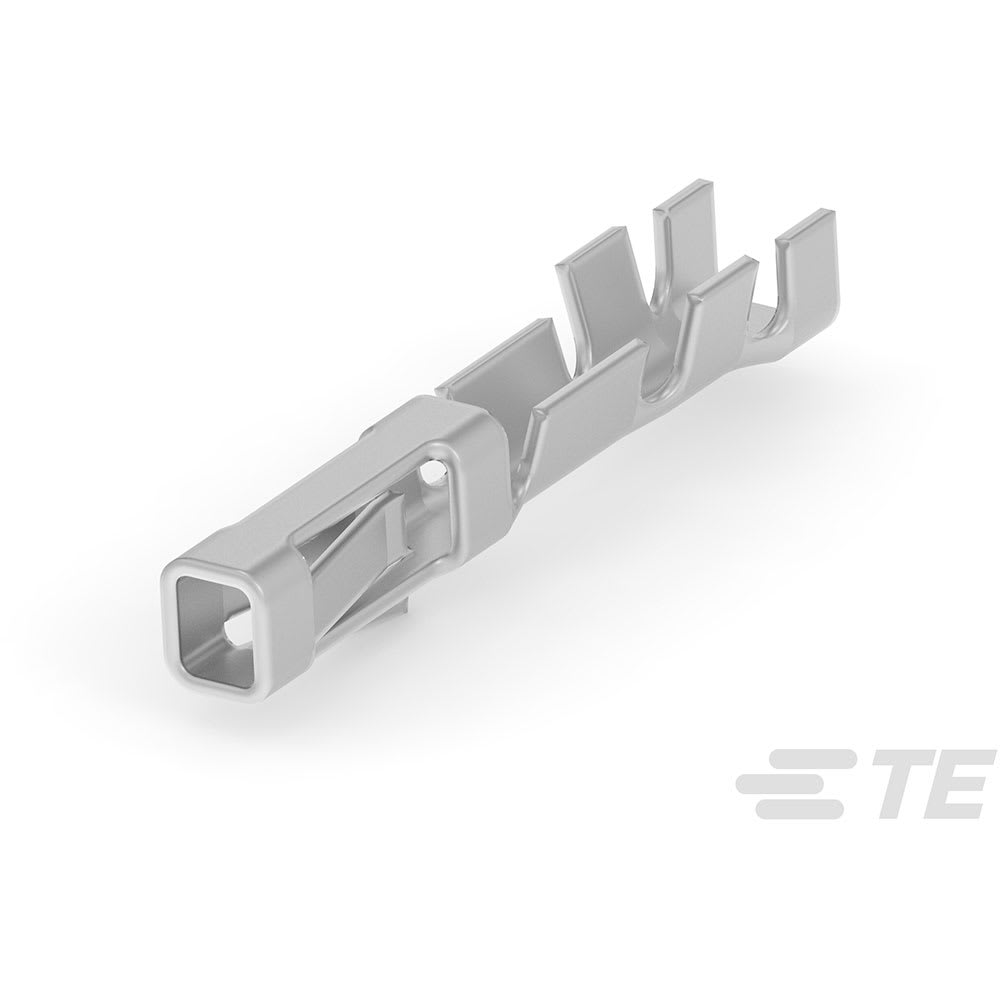

PCB Contact Recpectacle, Female, Crimp, Tin, 22- 26 AWG, AMPMODU Mod II Series | TE Connectivity 182206-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 182206-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

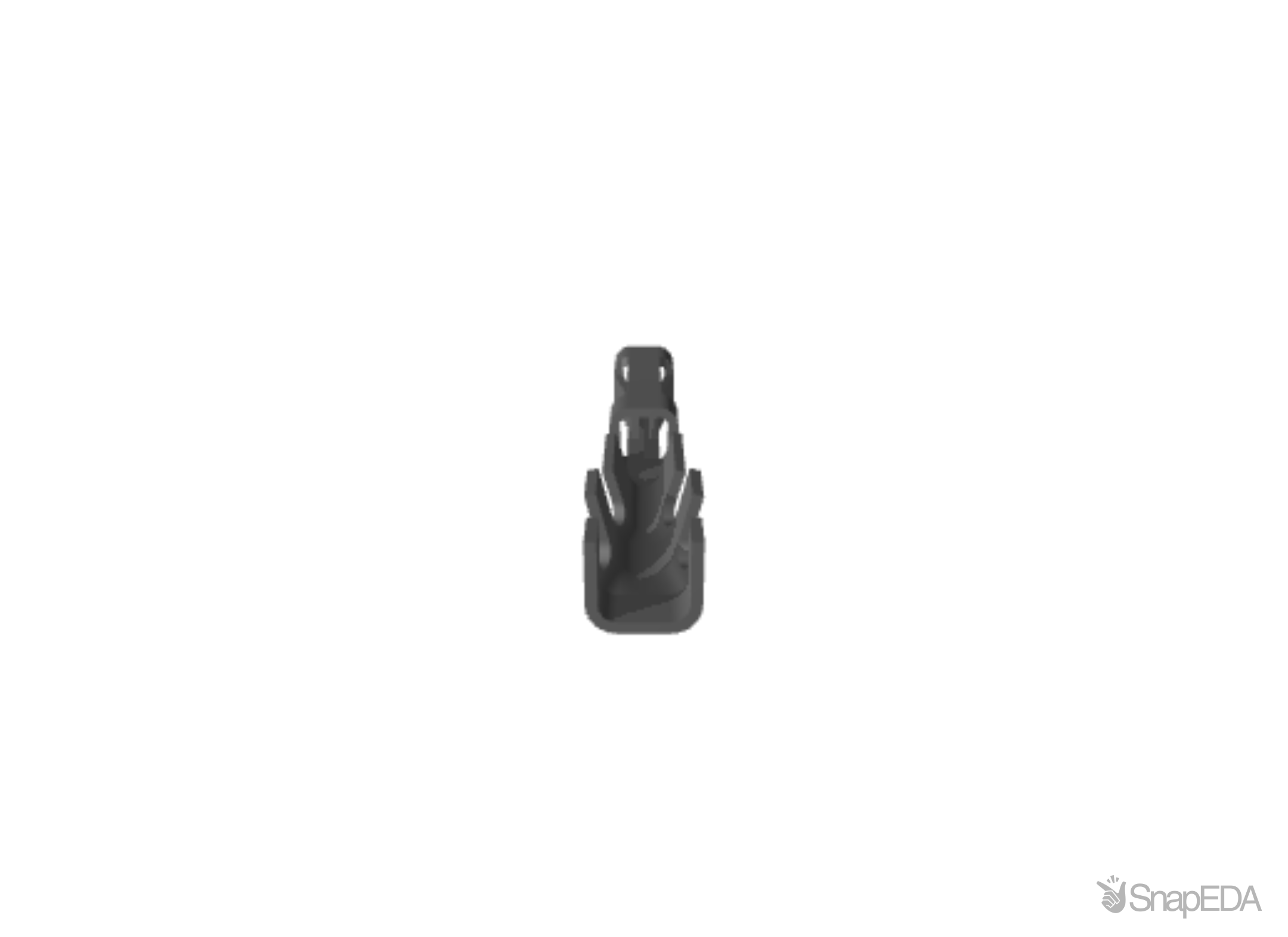

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 182206-2
| Part Name | 182206-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Product Type | Contact |
| Wire Size | 26 – 22 |
| Insulation Diameter | .89 – 1.55 |
| Packaging Method | Loose Piece |
| TE Internal Number | 182206-2 |
| Packaging Quantity | 2000 |
| Wire Insulation Support | With |
| Termination Method to Wire & Cable | Crimp |
| Contact Mating Area Plating Thickness | .8 |
| Wire/Cable Type | Discrete Wire |
| Crimp Area Plating Thickness | .8 |
| Contact Mating Area Plating Material | Pre-Tin |
| Contact Type | Socket |
| Applied Pressure | Standard |
| Contact Base Material | Phosphor Bronze |
| Connector & Contact Terminates To | Wire & Cable |
| Wire Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size Mm | 0.1 (mm²) |
| Maximum Wire Size Mm | 0.3 (mm²) |
| Series | AMPMODU MOD II |
| Minimum Wire Size Awg | 26 (AWG) |
| Gender | Female |
| Contact Plating | Tin |
| Termination Method | Crimp |
| For Use With | AMPMODU MOD II Connector Housing |
| Maximum Wire Size Awg | 22 (AWG) |
| Contact Material | Phosphor Bronze |
