1825257-2
Switch Slide SPDT Top Slide 20VAC 20VDC 0.4VA PC Pins Thru-Hole Tray
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1825257-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

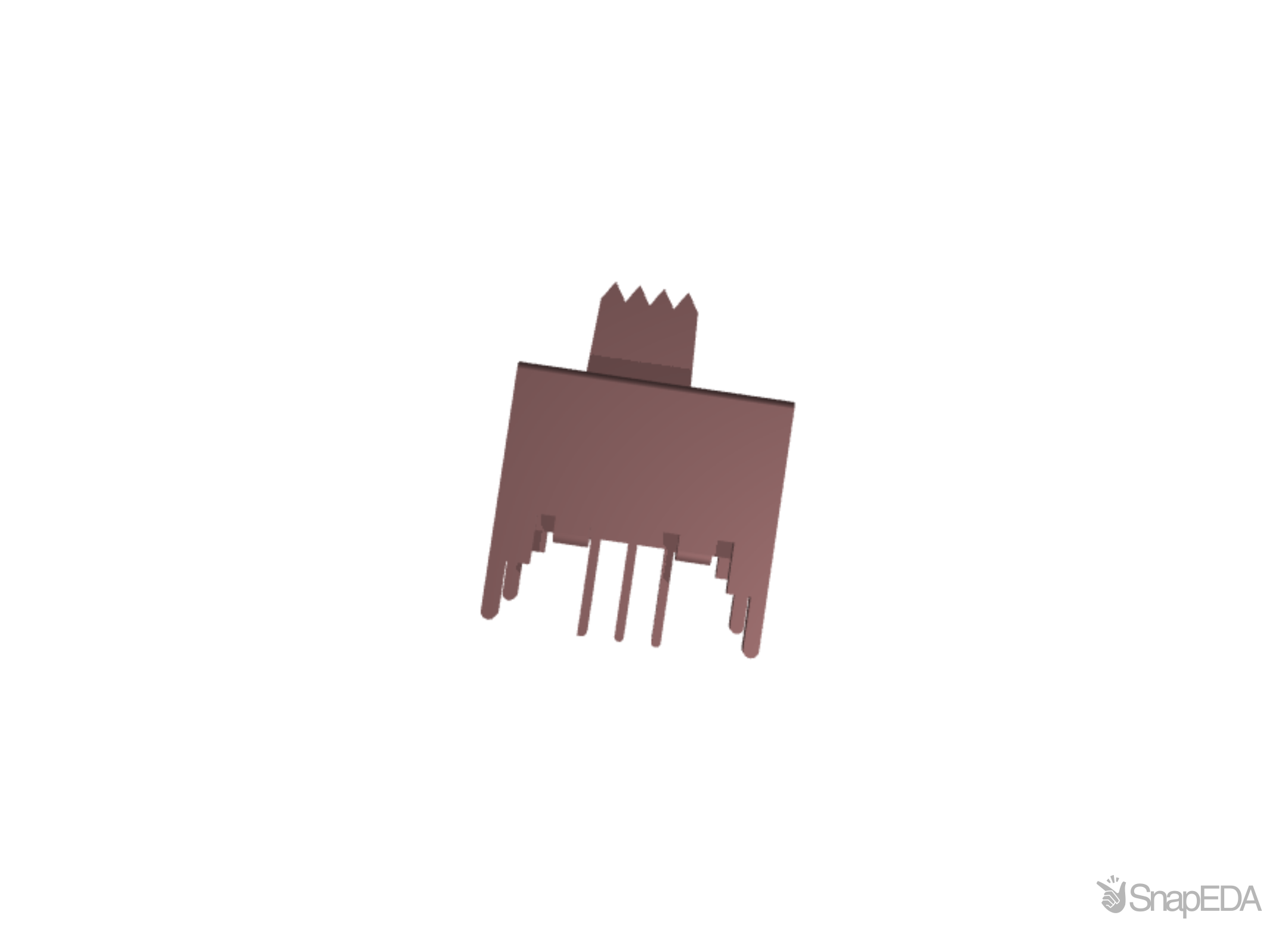

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1825257-2
| Part Name | 1825257-2 |
| Manufacturer | TE Connectivity |
| Terminals Connected | 2-1 |
| Threaded Case | Without |
| UL Flammability Rating | UL 94-HB |
| Width | 5.8 |
| Actuator Color | Black |
| Number of Positions | 2 |
| PCB Mount Retention Type | Guide Post |
| Actuator Style | Side |
| PCB Mount Retention | With |
| Actuator Length | .197 |
| TE Internal Number | 1825257-2 |
| PCB Tail Length | .15 |
| Contact Base Material | Copper Alloy |
| Packaging Method | Tray |
| Stamped Marking | With |
| Configuration (Pole-Throw) | Single Pole - Double Throw |
| Terminal Configuration | Standard |
| RoHS | True |
| Actuator Travel | .0787 |
| Mounting Angle | Vertical |
| Product Type | Switch |
| Mounting Type | Through Hole |
| Grade | Instrumentation |
| Length | 14 |
| Number of Actuators | Single |
| Termination Type | PC |
| Switch Contact Plating Material | Gold |
| Actuator Material | POM |
| Switch Type | Slide |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1825257-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Buerklin |
35
|
|
Visit Site | |
| Chip One Stop |
3,041
|
|
Visit Site | |
| Conrad |
3,041
|
|
Visit Site | |
| Farnell UK |
2,737
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Newark |
3,041
|
|
Visit Site | |
| Powell Electronics |
2,007
|
|
Visit Site | |
| RS Americas |
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TE Store |
677
|
|
Visit Site |
No issues have been reported for the 1825257-2
