1827059-3
EMBOSS PACKAGE HDMI CONN SMT NO-FLANGE T
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1827059-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

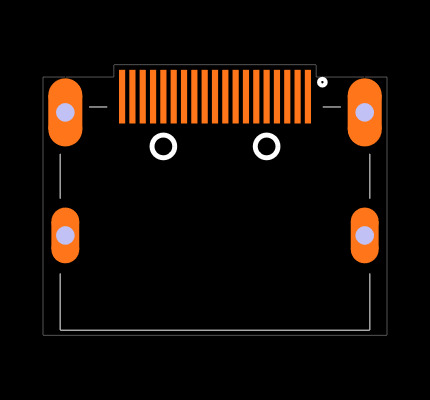

Footprint
No web preview
This Footprint is Available for

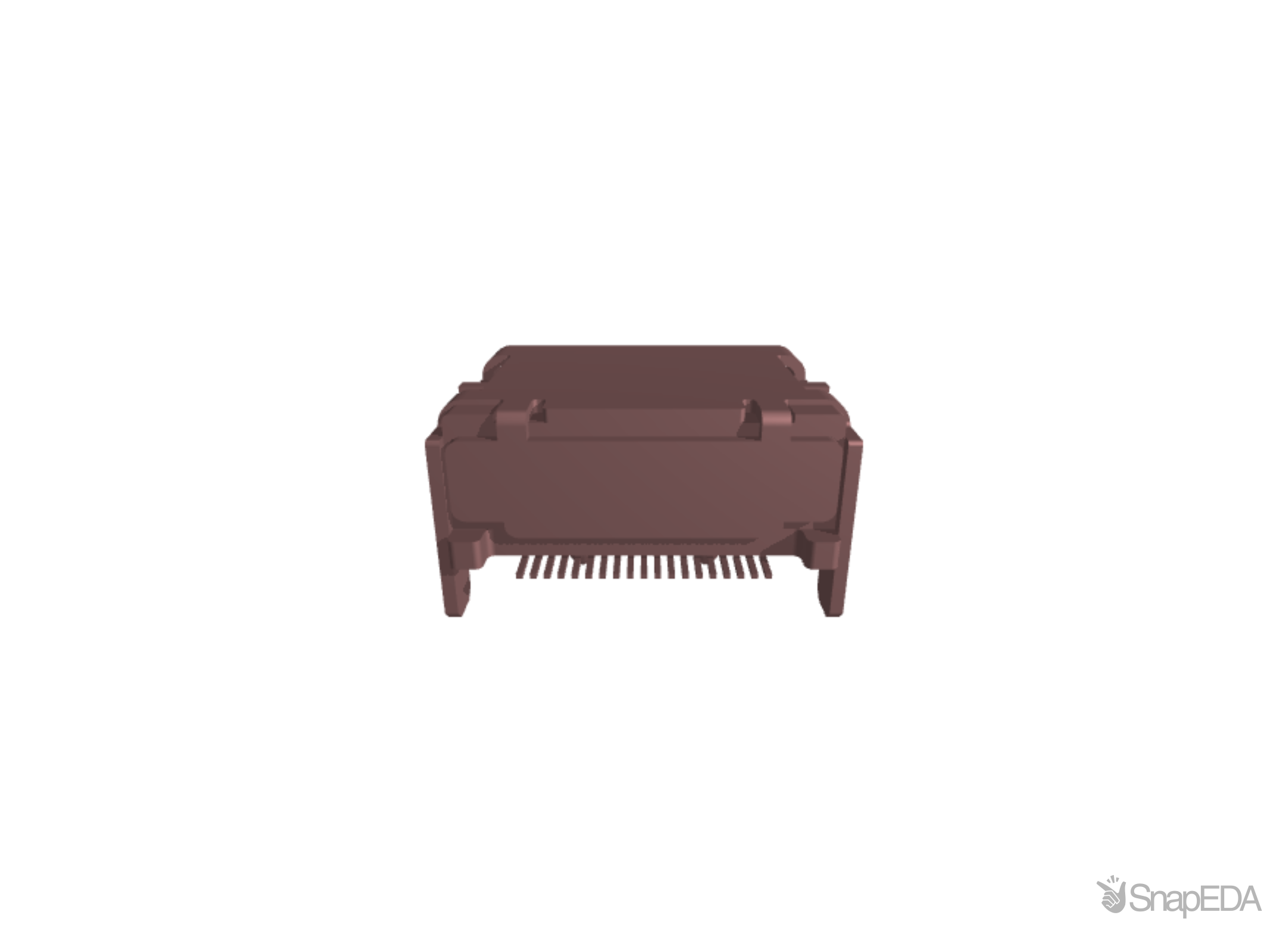

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1827059-3
| Part Name | 1827059-3 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Tin |
| Centerline (Pitch) | 1 |
| Circuit Application | Signal |
| Soldering Temperature (Max) | 240 |
| Contact Termination Type | Surface Mount |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Receptacle |
| Number of Positions | 19 |
| PCB Mount Retention Type | Straight Leg |
| Mounting Location | Top |
| TE Internal Number | 1827059-3 |
| Preloaded | Yes |
| Connector System | Cable-to-Board |
| Mating Cycles (Max) | 10000 |
| Housing Color | Black |
| Termination Method | Solder |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Stacked | No |
| Assembly Process Feature | Tape |
| Operating Temperature Range | -25 – 70 |
| Shell Plating Finish | Matte |
| Locating Posts | With |
| Packaging Method | Tape & Reel |
| Tail Length | .069 |
| Number of Ports | 1 |
| Contact Mating Area Plating Material | Gold Flash over Palladium Nickel |
| RoHS | True |
| Life Cycle Status | Obsolete |
| PCB Mounting Style | Surface Mount |
| Orientation | Right Angle |
| PCB Thickness (Min) | .063 |
| Contact Current Rating (Max) (A) | .5 |
| Contact Mating Area Plating Thickness | .76 |
| Size | Standard |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
