1827538-1
Conn Shrouded Header HDR 48 POS 3.81mm Solder ST Thru-Hole Box/Tube
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1827538-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

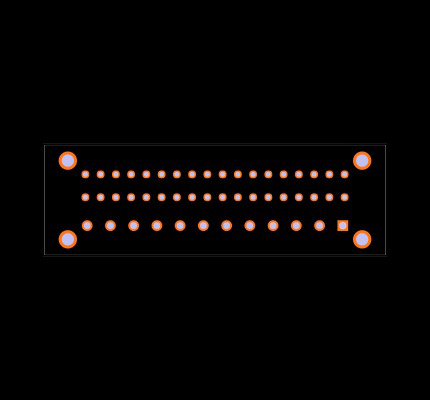

Footprint
No web preview
This Footprint is Available for

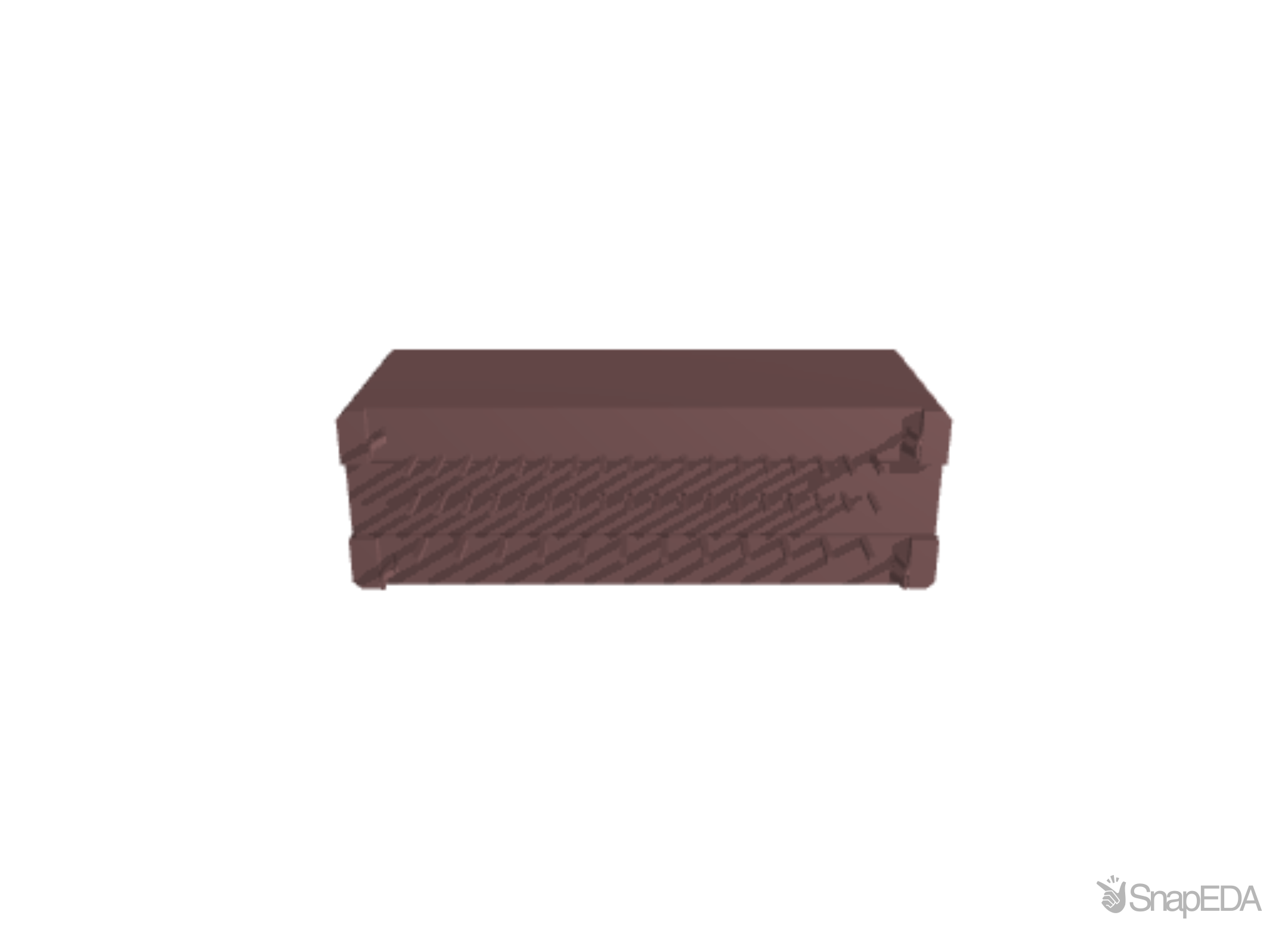

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1827538-1
| Part Name | 1827538-1 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2.5 |
| Tail Plating Thickness | 78.74 |
| Circuit Application | Power & Signal |
| Contact Style | Straight |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Polyester GF |
| Width | .708 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 250 |
| Insertion Force | Standard |
| For Use With | Receptacle Housing |
| Connector Style | Plug |
| UL Rating | Recognized |
| Number of Positions | 48 |
| PCB Mount Retention Type | Retention Leg |
| PCB Mount Retention | With |
| Contact Layout | Matrix |
| VDE Tested | No |
| CSA File Number | LR7189 |
| Contact Plating Material | Gold |
| TE Internal Number | 1827538-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Tail Plating Material | Tin |
| Header Type | Shrouded |
| Product Type | Connector |
| Multiple Contact Types | Without |
| Contact Transmits (Typical) | Power |
| Mating Retention | With |
| UL File Number | E28476 |
| Operating Temperature Range | -67 to 221 |
| Shielded | No |
| Number of Rows | 3 |
| Packaging Method | Box & Tube |
| Tail Length | 3.4 |
| Packaging Quantity | 8 |
| Connector Type | Header |
| Agency/Standard | CSA |
| Halogen Free | Yes |
| Length | 2.2 |
| Shunts/Shorting Bars | Without |
| Lock Type | Latch |
| CSA Rating | Certified |
| PCB Thickness (Recommended) | .063 |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Strain Relief | Without |
| Assembly Integration Feature | Without |
| PCB Mount Alignment | Without |
| Mating Retention Type | Latch |
| Height | .85 |
| ???? | Black |
| Contact Current Rating (Max) (A) | 7.5 |
| Contact Retention | Without |
| Connector Mounting Type | Board Mount |
| Contact Type | Tab |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Preloaded | Yes |
| Sealable | No |
| Mating Alignment | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
