1844333
SnapVerified
Pluggable Header 3.5mm 16AWG 160V 8A 14 Position Combicon Control Series | Phoenix Contact 1844333
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1844333 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

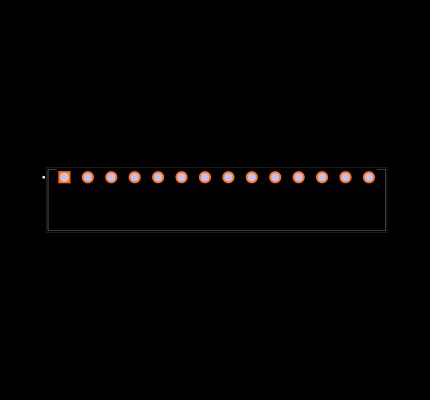

Footprint
No web preview
This Footprint is Available for

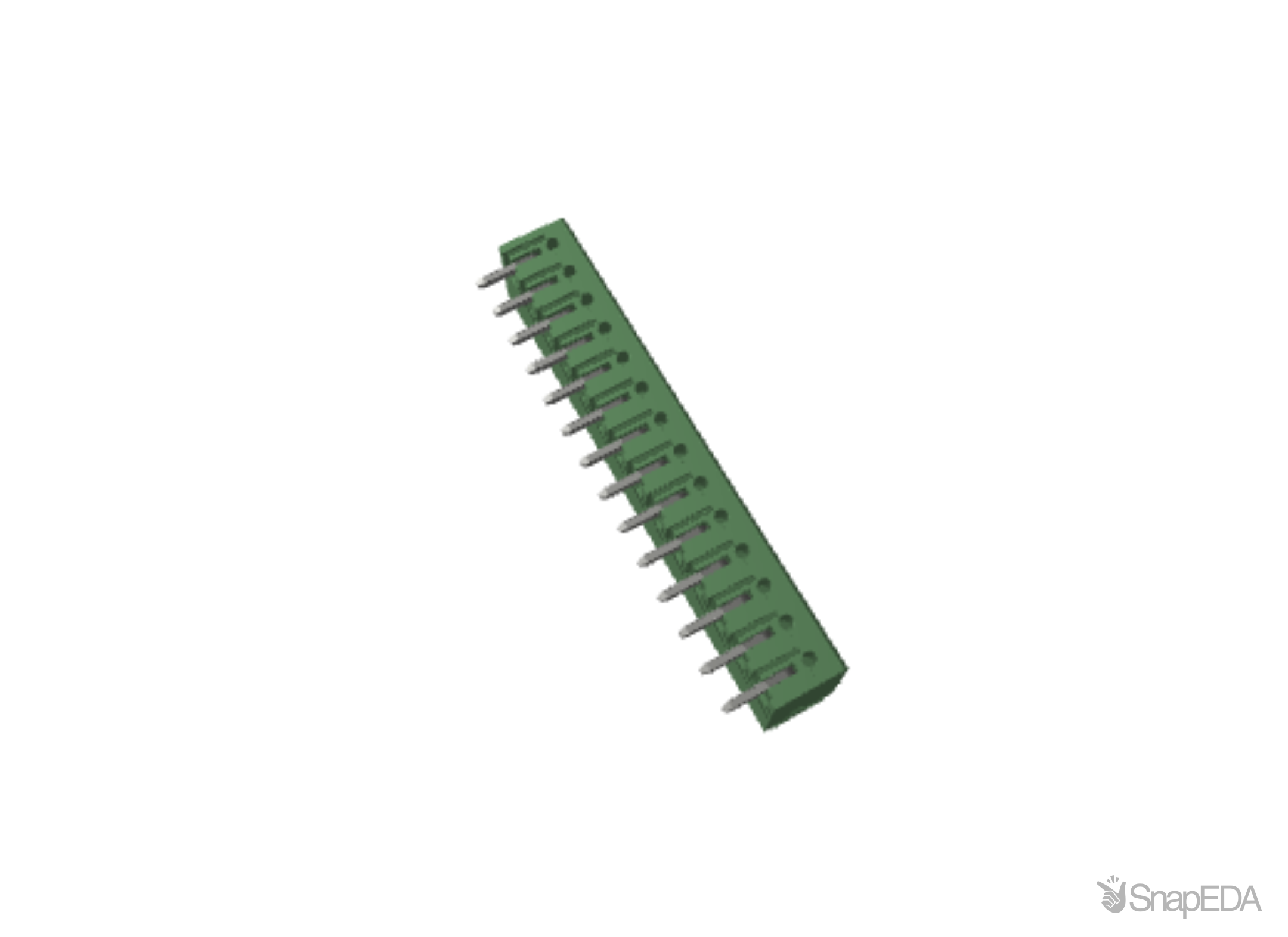

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1844333
| Part Name | 1844333 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Assembly Type | Wave soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Assembly | plugged-in |
| Product Article Number Of Manufacturer | 1844333 |
| Material Of Insulation | PBT |
| Product Description | PCB header |
| Pole Number | 14 |
| Certificate/approval | CSA, cULus Recognized, VDE Zeichengenehmigung |
| Height | 10.65 |
| Width | 50.4 |
| Depth | 9.2 |
| GTIN | 4017918113377 |
| Rated Current (A) | 8 |
| Manufacturer Product Designation | PCB header |
| Application Standards | IECÂ 61984 |
| Color Of Housing | green |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 8.0 (A) |
| Mounting Type | Through Hole |
| Pluggable Terminal Block Type | Header |
| Series | MC 1.5/14-G-3.5 |
| Body Orientation | Right Angle |
| Voltage Rating (V) | 250.0 V |
| Termination Method | Solder |
| Number Of Rows | 1 |
| Pitch | 3.5 (mm) |
| Number Of Contacts | 14 |
| Contact Material | Tin |
No issues have been reported for the 1844333
If you experienced any issues with the symbol or footprint, please report it.
