1864121
SnapVerified

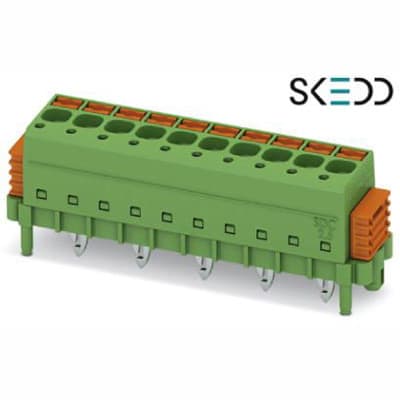

Phoenix Contact 1864121 SDC 2,5/11-PV-5,0-ZB
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1864121 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

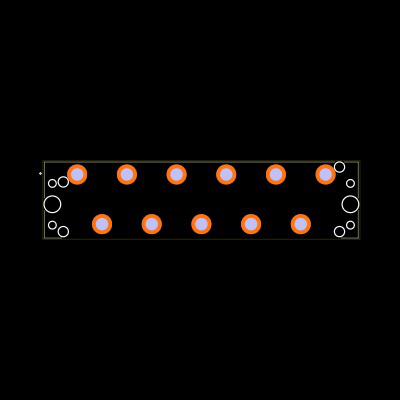

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1864121
| Part Name | 1864121 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Min. Conductor Cross-section (flexible Wire With Ferrule Without Plastic Collar) | 0.25 |
| Max. Line Cross Section, Rigid | 2.5 |
| Width | 63.18 |
| GTIN | 4055626210520 |
| Min. Line Cross Section, Flexible | 0.2 |
| Product Description | Direct connector |
| Certificate/approval | IEC 61984 |
| Gtin (ean) Code | 4055626210520 |
| Internal Article Number | 1864121 |
| Number Of The Executions Of The Housing Parts | 0 |
| Max. Line Cross Section, Flexible | 2.5 |
| Depth | 15.3 |
| Manufacturer Product Designation | Direct connector |
| RoHS | True |
| Assembly Type | SKEDD - Direct plug-in technology |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1864121 |
| Material Of Insulation | PA |
| Net Weight | 0.01311 |
| Height | 21.2 |
| Min. Line Cross Section, Rigid | 0.2 |
| Application Standards | IEC 61984 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | SDC 2.5/11-PV-5.0-ZB |
| Current Rating (A) | 12 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 320 V |
| Gender | Female |
| Colour | Green |
| Termination Method | Screw |
| Depth | 21.2 (mm) |
| Width | 15.3 (mm) |
| Length | 63.18 (mm) |
| Number Of Rows | 1 |
| Pitch | 5 (mm) |
| Number Of Contacts | 11 |
| Type | PCB Terminal Block |
| Body Orientation | Straight |
Inventory for the 1864121 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
50 x $11.91
|
Visit Site | |
| Mouser |
|
1 x $11.02
|
Visit Site |
No issues have been reported for the 1864121
