1888292-2
FPC (Flexible Printed Circuit) Connectors
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1888292-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

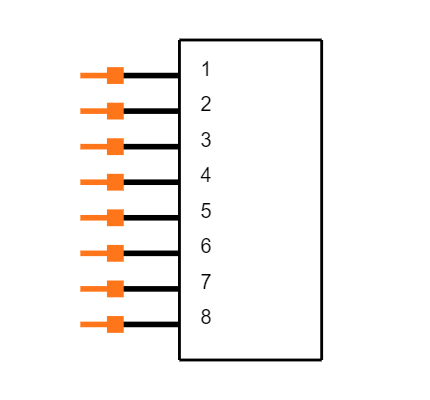

Symbol
No web preview
This Symbol is Available for

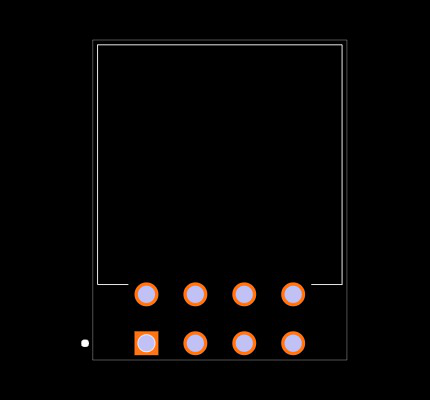

Footprint
No web preview
This Footprint is Available for

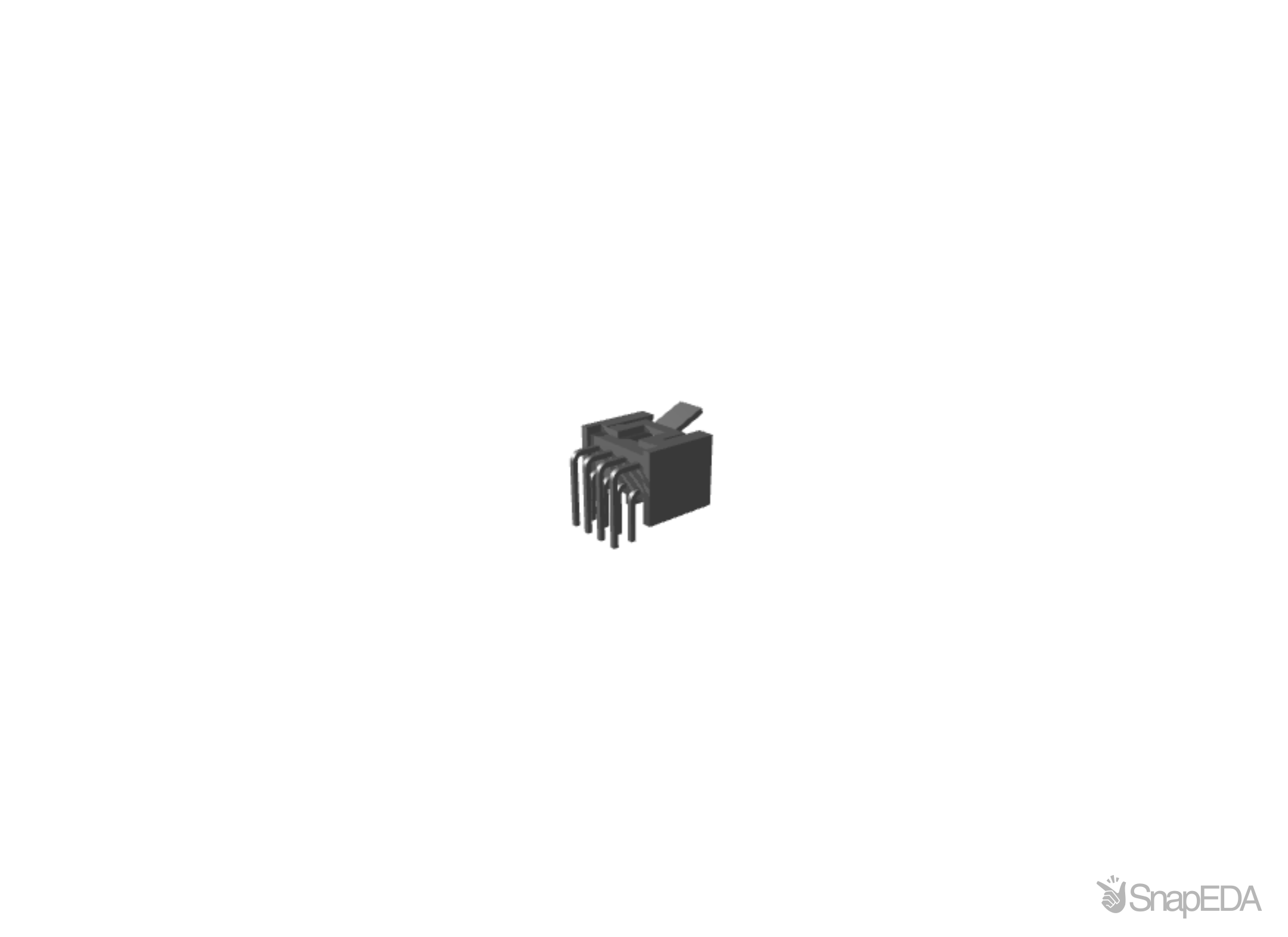

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1888292-2
| Part Name | 1888292-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .1 |
| Circuit Application | Signal |
| Cable Entry | Right Angle |
| Mating Retention Type | Detent Windows |
| Mating Retention | With |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Plug |
| Number of Positions | 8 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.57 |
| Panel Mount Feature | Without |
| TE Internal Number | 1888292-2 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Number of Rows | 2 |
| Housing Color | Blue |
| Header Type | Shrouded |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Insertion Force Type | Zero Insertion Force (ZIF) |
| Operating Temperature Range | -67 – 221 |
| Packaging Method | Package |
| Tail Length | 2.54 |
| Packaging Quantity | 100 |
| Connector Type | Header |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Tin |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Housing Material | Nylon |
| Contact Base Material | Phosphor Bronze |
| Color | Blue |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 2.54 |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 2 |
| Contact Type | Pin |
| Contact Termination Area Plating Thickness | 100 |
