1888652-2
2X1 OFFSET STACK JACK
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1888652-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

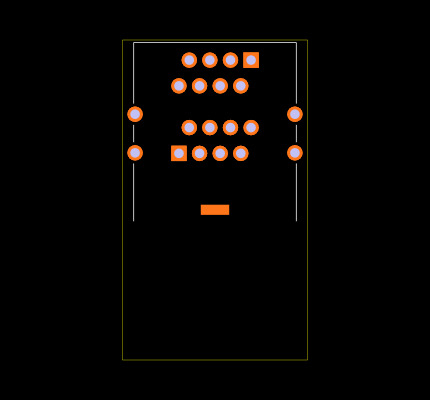

Footprint
No web preview
This Footprint is Available for

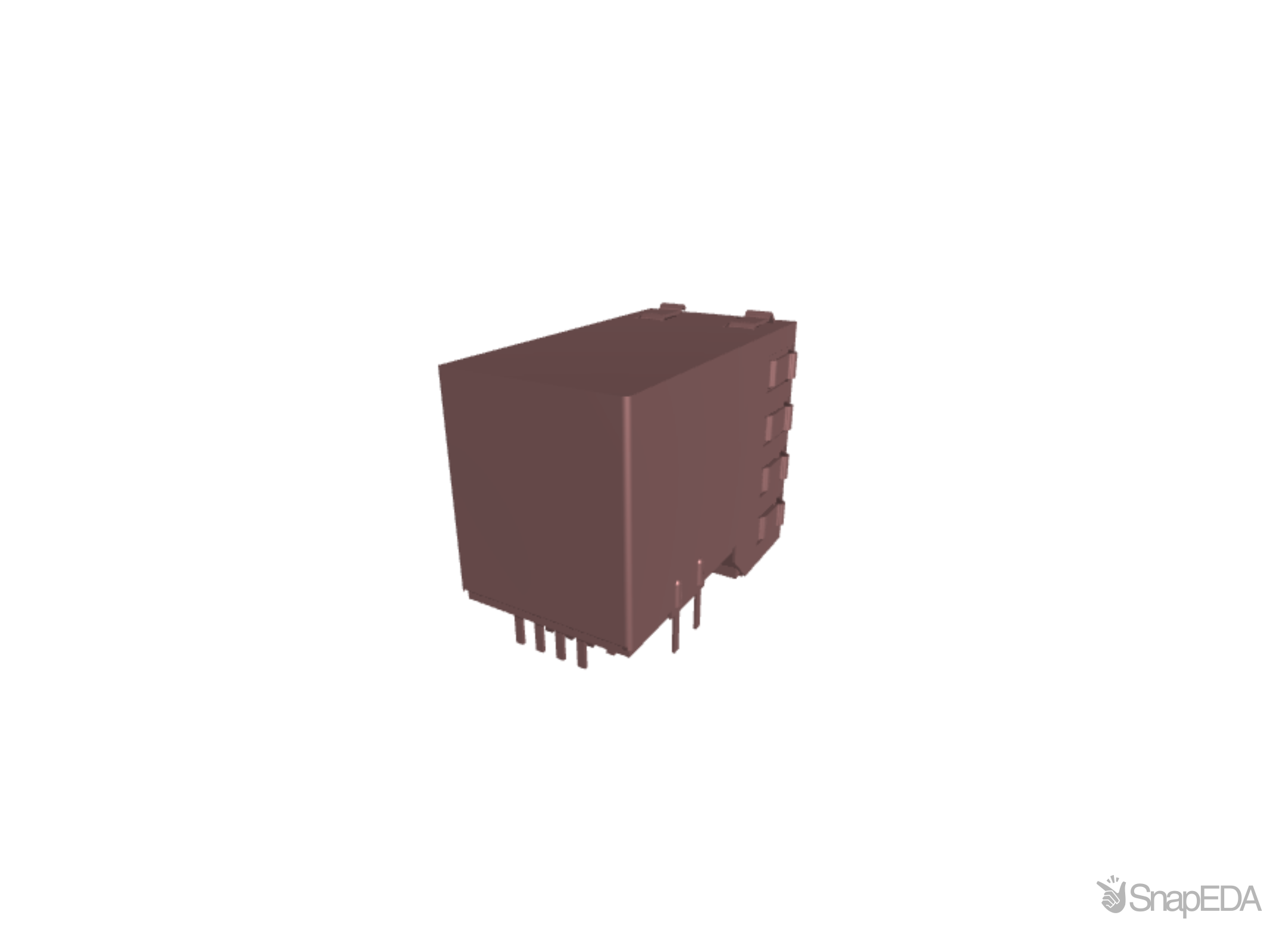

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1888652-2
| Part Name | 1888652-2 |
| Manufacturer | TE Connectivity |
| コネクタ製品タイプ | Connector Assembly |
| Centerline (Pitch) | .04 |
| Circuit Application | Signal |
| Port Configuration | Multiple Ports |
| Connector Product Type | Connector Assembly |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | PBT GF |
| Ground Component Type | Grounding Clips |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 8 |
| Number of Loaded Positions | 8 |
| Grounding Options | PCB and Panel Ground |
| Number of PCB Ground Tabs | 4 |
| PCB Thickness (Recommended) | .062 |
| Connectors & Connector Components Type | Connector |
| Part Category | RJ45 Connectors |
| TE Internal Number | 1888652-2 |
| PCB Tail Length | 4.14 |
| PCB Mount Orientation | Right Angle |
| Grounding Tab Plating Material | Tin over Copper |
| Status Indicator | None |
| Connector Height | 3.27 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -30 – 70 |
| Shielded | Yes |
| Mating Entry Location | Side |
| Connector Profile | Offset - Overhangs PCB |
| Packaging Method | Bag |
| Packaging Quantity | 10 |
| Keyed | No |
| Multiple Port Configuration | Stacked |
| Modular Jacks & Plugs Products | RJ Type Jacks & Plugs |
| Contact Mating Area Plating Material | Gold |
| Modular Jack & Plug Interface Type | RJ45 |
| RoHS | True |
| Connector Contact Density | Standard |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Shield Plating Material | Tin over Copper |
| 端子の下地めっきの材料 | Nickel |
| Modular Connector Style | Jack |
| Shield Material | Copper Alloy |
| Performance Category | Cat 5 |
| Modular Jack Latch Orientation | Standard - Latch Down |
| Contact Mating Area Plating Material Thickness | 1.27 |
| Panel Mount Feature | Without |
| Port Matrix Configuration | 2 x 1 |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1888652-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
1,125 x $11.49
|
Visit Site | |
| Arrow Electronics |
778
|
1 x $8.68
|
Visit Site | |
| Verical |
778
|
|
Visit Site |
No issues have been reported for the 1888652-2
If you experienced any issues with the symbol or footprint, please report it.
